Tente Caster Plate-type Caster "ALPHA" (Nylon Wheel) φ200 Swivel (with Total Lock) 3477UOR200P63 1 pc

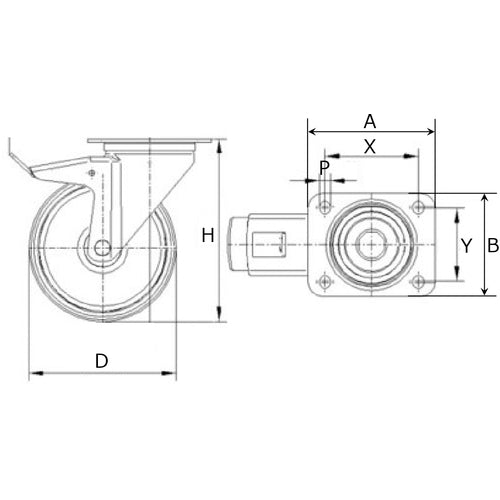

Catalogue number: 3477UOR200P63 Features: ●Double ball race bearings are used in the swivel section, making it smooth to start moving and highly durable. Specifications: ●Wheel diameter D (mm): 200 ●Type: Free-standing (with total lock) ●Allowable load (daN): 343 ●Allowable load (kgf): 350 ●Wheel width (mm): 50 ●Mounting height H (mm): 240 ●Mounting seat A (mm): 137 ●Mounting seat B (mm): 105 ●Mounting pitch X (mm): 105 ●Mounting pitch Y (mm): 80/75 ●Mounting hole diameter P (mm): 11 ●Plate type ●Free-standing (with total lock) Material/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: High-gloss zinc plating ●Wheels: Nylon
