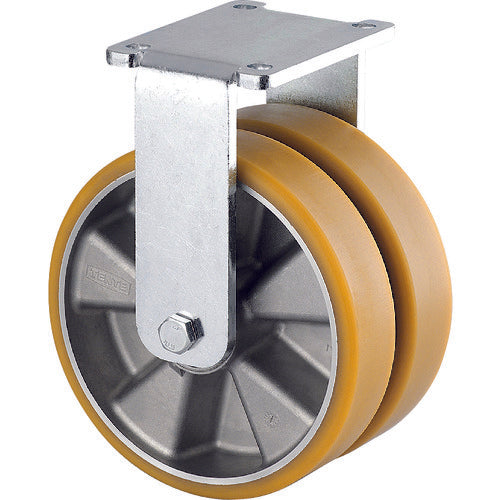

Tente Caster High-performance dual-wheel caster for heavy loads "DELTA TWIN" (polyurethane wheels, maintenance-free) φ200 Fixed type 9948ITP200P63 CONVEX 1 piece

Catalog number: 9948ITP200P63 CONVEX Features: ●Since the rotating part is equipped with a precision ball bearing, the rotating resistance is very small, and it is excellent in starting and rotating starting. ●It is a maintenance-free type that does not require grease injection. ●It is possible to transport smoothly by taking advantage of the characteristics of the double wheel caster. ●The fork is a high durability specification. ●It can also be used for AGV. Specifications: ●Wheel diameter D (mm): 200 ●Type: Fixed type ●Allowable load (daN): 735 ●Allowable load (kgf): 750 ●Wheel width (mm): 50 ●Mounting height H (mm): 250 ●Mounting seat A (mm): 137 ●Mounting seat B (mm): 137 ●Mounting pitch X (mm): 105 ●Mounting pitch Y (mm): 80-75 ●Mounting hole diameter P (mm): 11 ●Fixed type ●Plate type Material / Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: Blue zinc plating ●Wheels: Polyurethane + aluminum wheel
