Tente Caster High-performance swivel caster for heavy loads "DELTA" (urethane wheels) φ125 Fixed type 3648ITP125P63 CONVEX 1 piece

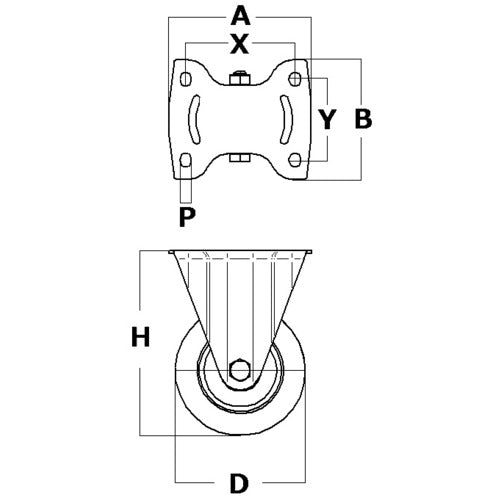

Catalog number: 3648ITP125P63 CONVEX Features: ●Since the rotating part is equipped with a precision ball bearing, the rotating resistance is very small, and it is excellent in starting and rotating starting. ●Maintenance-free, no need to inject grease. ●The fork is of high durability specification. ●It can also be used for AGV. Specifications: ●Wheel diameter D (mm): 125 ●Type: Fixed type ●Allowable load (daN): 490 ●Allowable load (kgf): 500 ●Wheel width (mm): 50 ●Mounting height H (mm): 178 ●Mounting seat A (mm): 137 ●Mounting seat B (mm): 115 ●Mounting pitch X (mm): 105 ●Mounting pitch Y (mm): 80-75 ●Mounting hole diameter P (mm): 11 ●Fixed type ●Plate type ●Precision ball bearing included Material/Finish: ●Hardware: Steel ●Hardware surface treatment: Blue zinc plating ●Wheels: Polyurethane + aluminum wheel
