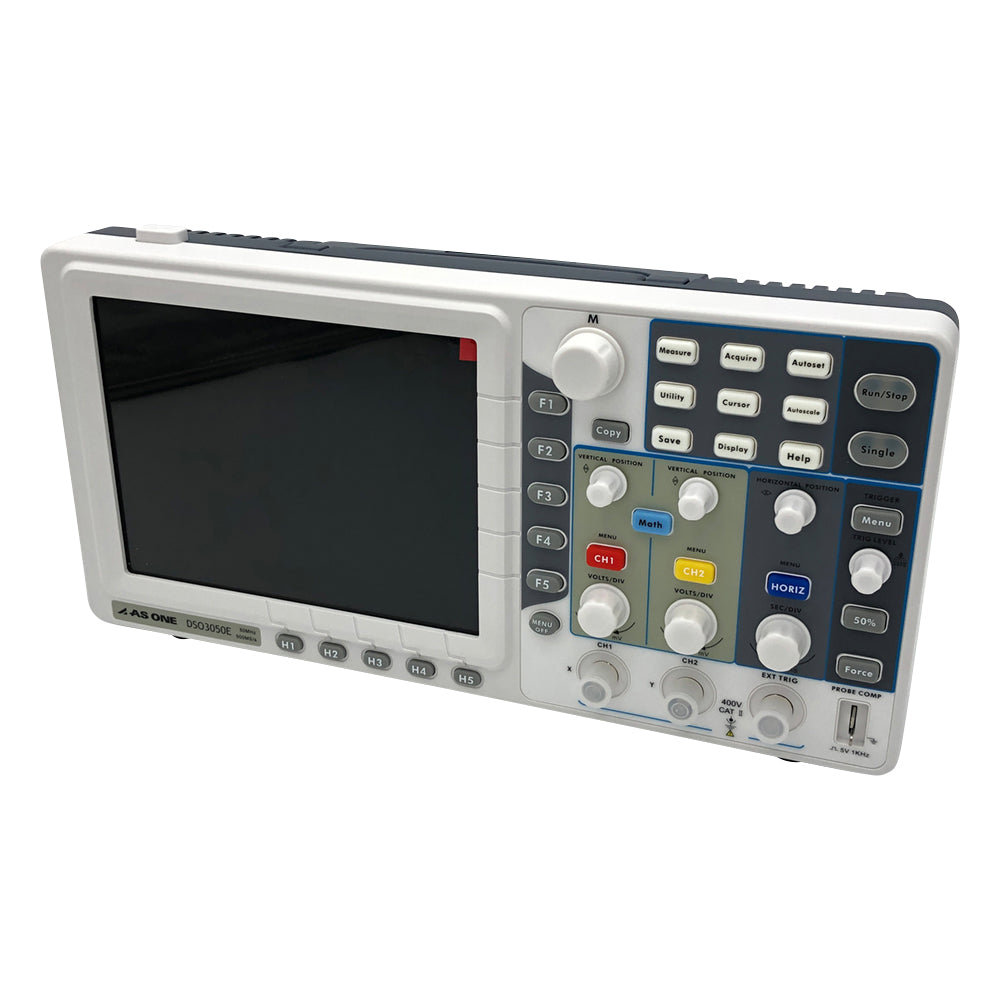

Digital Storage Oscilloscope 50MHz DSO3050E 1pc

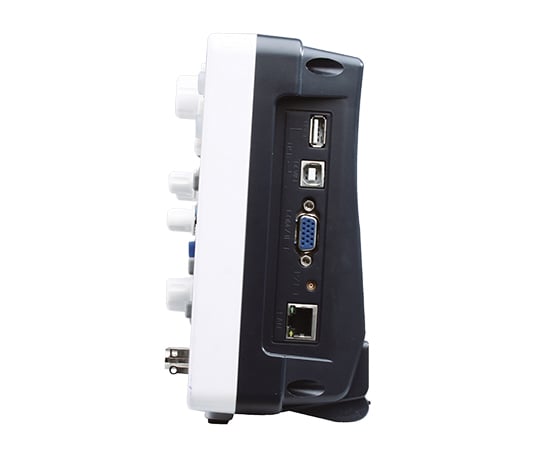

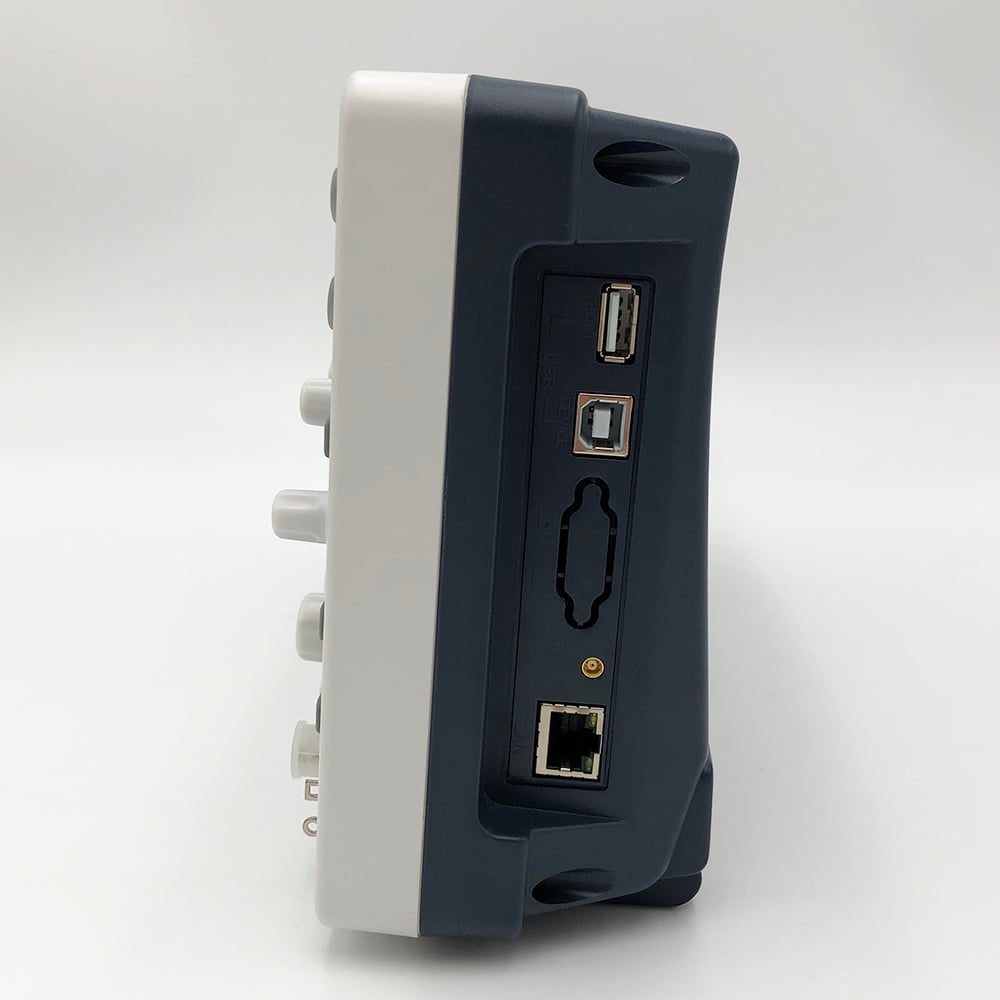

Equipped with a wide range of automatic measurement functions. 20 types of automatic measurements and FFT analysis are possible. It has a space-saving design with a depth of 78 mm and a weight of 1.5 kg. The 8-inch LCD display provides an easy-to-use panel and menu. Equipped with pass/fail function and waveform recording/replay function. Model number: DSO3050E - Frequency band (MHz): 50 Sample rate (GS/s): 0.5 Number of analog channels: 2 Record length: 10k points Rise time: 7 ns or less Vertical resolution: 8 bits Vertical input sensitivity range: 5mV/div to 5V/div Horizontal resolution: 5ns/div DC Gain Accuracy: ±3% Input impedance: 1MΩ ±2%, 10pF±5pF Waveform calculation: +・−・×・÷ Arithmetic function: FFT Cursor measurement: ⊿V, ⊿T Automatic measurements: PP, average, RMS, frequency, period, maximum, minimum, rise time, fall time, delay, + width, - width, duty, etc. Trigger types: Edge, pulse width, video, slope, etc. Trigger Mode: Auto, Normal, Single Interface: USB, LAN Size: 348×78×170mm Weight: 1.5kg Power supply: AC100V 50/60Hz *Sample rate is for single channel.
