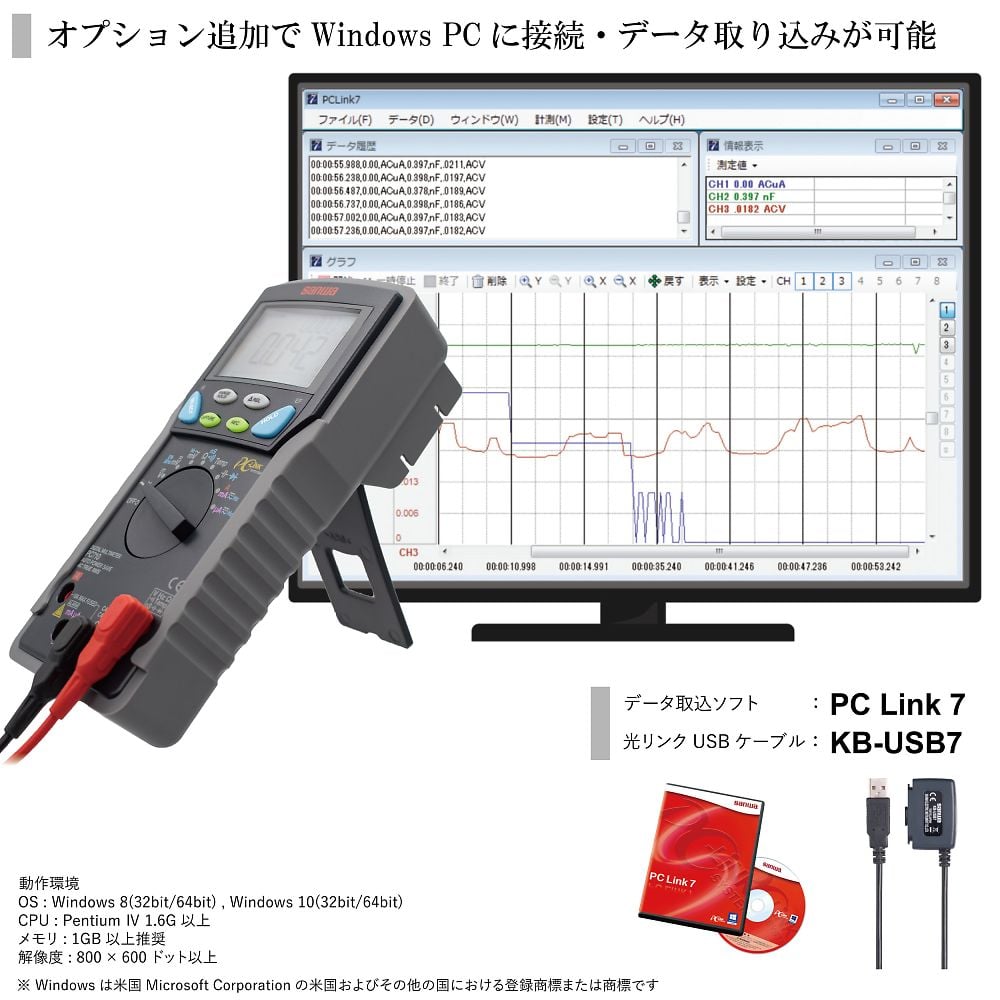

Can be connected to a PC (option required) DCV: 60m/600m/9.999/99.99/999.9V
ACV: 60m/600m/9.999/99.99/999.9V
DCA: 600μ/6000μ/60m/600m/6/10A
ACA：600μ/6000μ/60m/600m/6/10A
Resistance: 600/6k/60k/600k/6M/60MΩ
Capacitor capacity: 60n/600n/6μ/60μ/600μ/6m/25mF
Frequency: 15Hz to 50kHz
Logic frequency: 5Hz to 1MHz
Duty ratio: 0% to 100%
Continuity: Buzzer sounds at 20Ω to 300Ω or less Open voltage: approx. 1.2V
Diode test: Open voltage approx. 3.5V
Built-in fuse: 11A/1000V IR20kA φ10×38mm, 0.4A/1000V IR30kA φ6.3×32mm
Power supply: 6F22 (9V battery) x 1
Dimensions/Weight: H184×W86×D52mm/Approx. 430g
