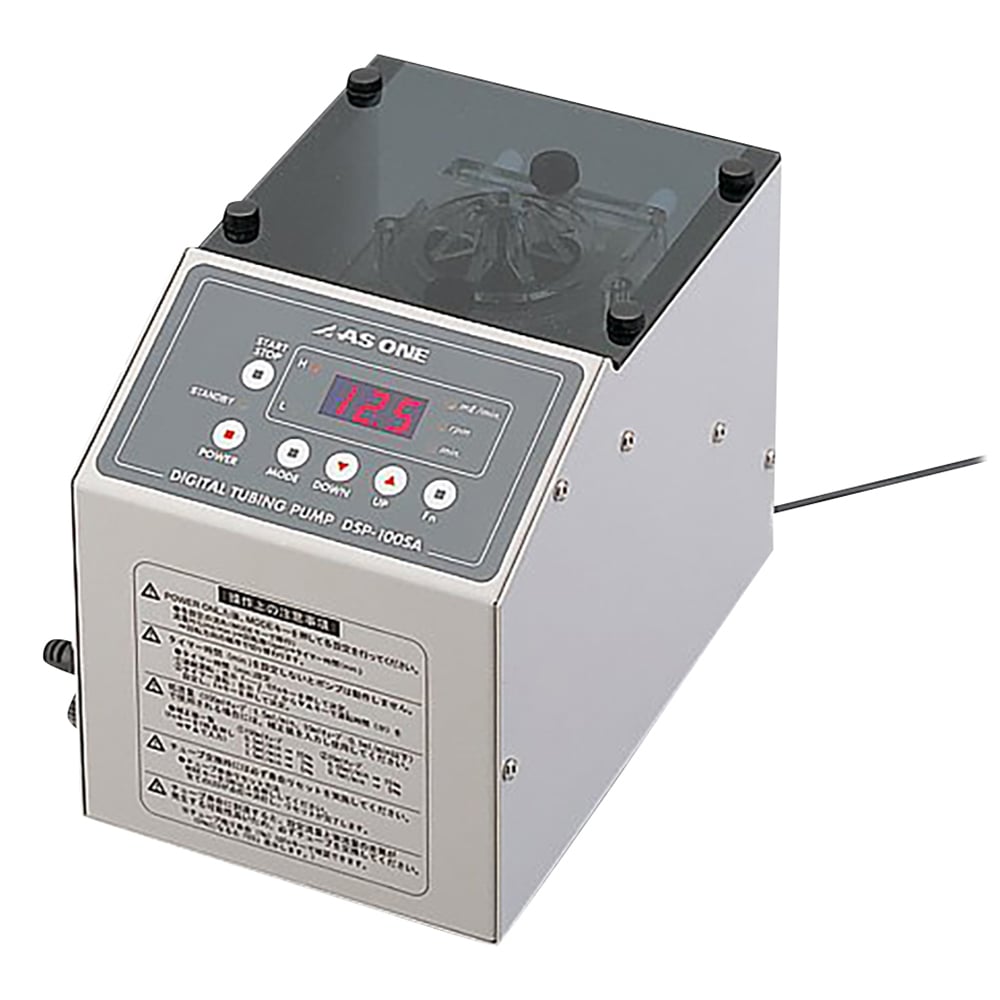

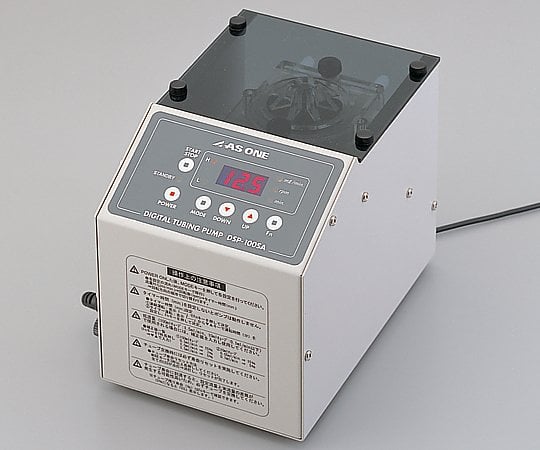

Digital metering tubing pump DSP-100SA 1 unit
Digital metering tubing pump DSP-100SA 1 unit
Regular price
¥140,800
Regular price
Sale price
¥140,800
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

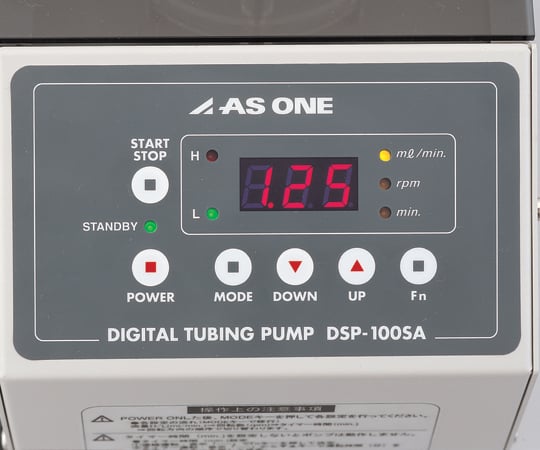

The desired flow rate can be set digitally.
High flow rate accuracy of within ±3% of the set flow rate (for water).
By using a stepping motor, it has excellent rotation speed (flow rate) stability, repeatability, and durability.
It has a flow rate correction function that is useful when there is a difference between the set flow rate and the actual flow rate depending on the liquid.
To maintain flow rate accuracy, it has a function to notify when it is time to replace the tube.
Highly accurate flow rate can be specified. Model number: DSP-100SA
Flow rate range: When using Cartridge L (sold separately) / 0.05 to 10.0 mL/min (set in 0.05 mL/min increments), When using Cartridge H / 0.5 to 100 mL/min (set in 0.5 mL/min increments)
* In order to use the product within ±3% of the set flow rate in the minimum flow rate range, flow rate correction (entering our recommended correction value) is required. * Only the dedicated tube cartridge can be used with this product.
Flow rate accuracy: Within ±3% of the set flow rate (for water)
Rotation speed setting range: 0.5 to 100 rpm (in 0.5 rpm increments)
Motor: Stepping motor
Flow rate correction function: Can be corrected up to ±30% of the set flow rate (in 1% increments)
Tube consumption status display: Countdown from 100% (warning at 0%)
Timer function: up to 12 hours
Dedicated tube cartridge material: Silicone rubber
Power supply: AC100-240V 50/60Hz (2P plug)

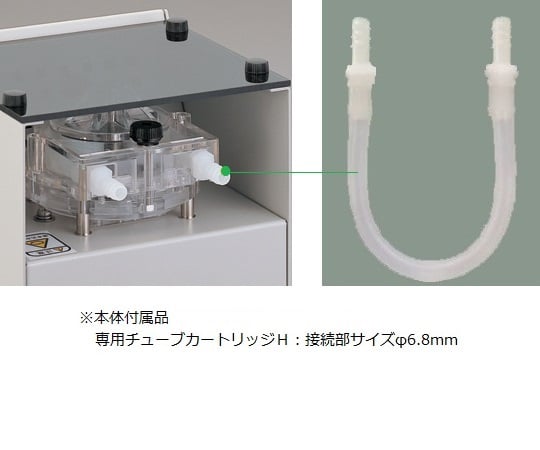

Accessories: Dedicated tube cartridge H, AC adapter
Size: 130 x 190 x 140mm
【Note】
This product is not supported for disassembly, modification, or use of parts other than the included or genuine optional parts. In addition, we cannot disclose information such as component specifications, electrical circuit diagrams, software, etc.
