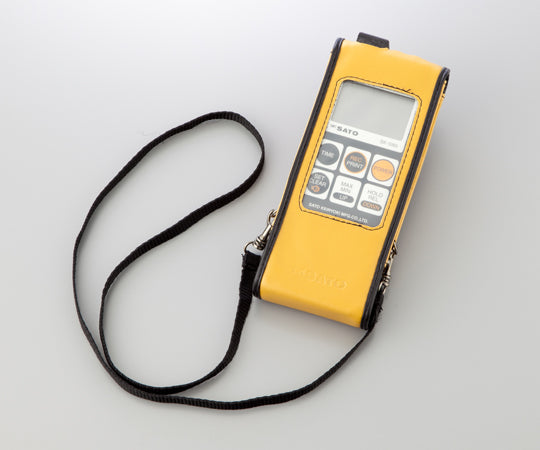

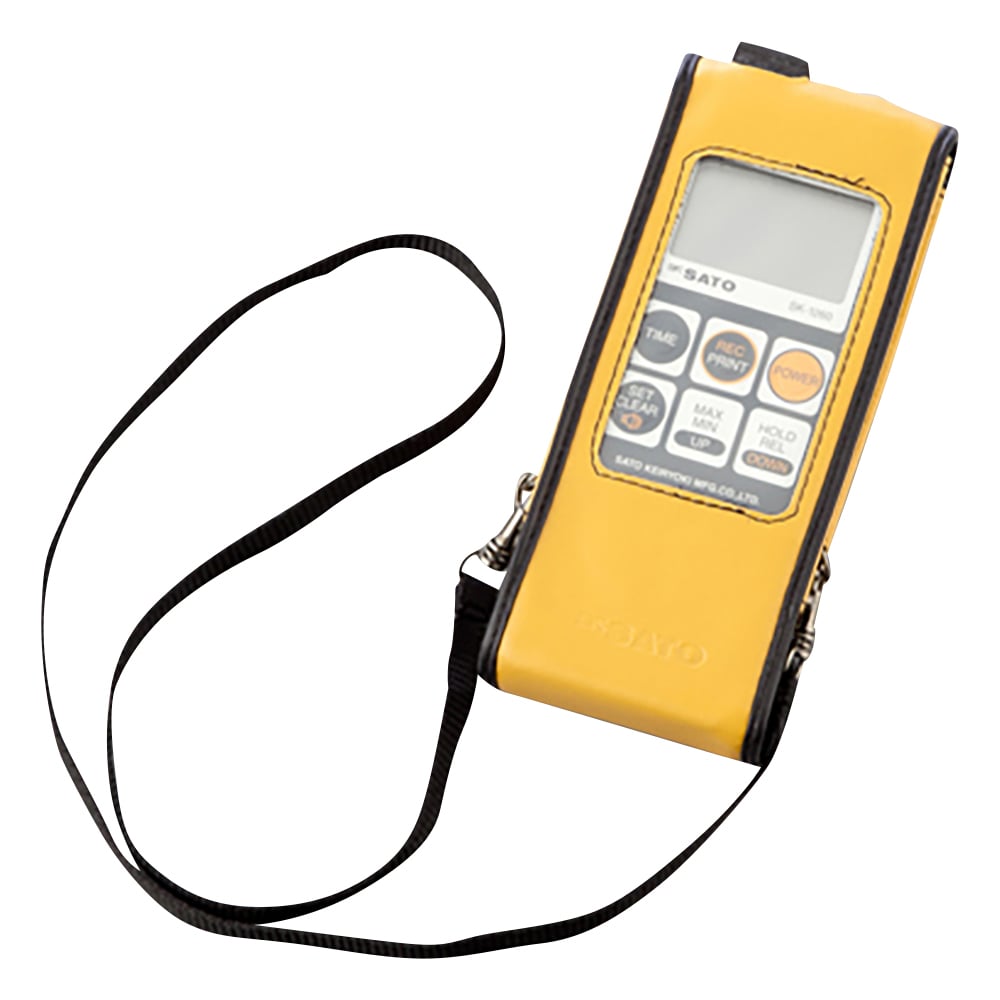

Digital thermometer unit only SK-1260 1 unit
Digital thermometer unit only SK-1260 1 unit
Regular price
¥28,160
Regular price
Sale price
¥28,160
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
This highly practical digital thermometer packs multiple functions into a handy body. Its functional design makes it easy to use and meets a wide range of needs.
Its greatest feature is that you can freely choose from two types of sensors depending on your purpose and application: thermistor (high accuracy at medium and low temperatures) and thermocouple (wide range from -100 to 1200°C).
Optional sensors include 23 types of thermocouples and 6 types of thermistors. A soft case with a strap is available for easy carrying.
Waterproof: JIS C 0920 Protection Class 4 (splash-proof, no harmful effects when exposed to water splashes from any direction)
Memory function/data import can be easily done with just one key.
★In manual memory mode, up to 180 measurement values can be stored.
★In auto memory mode, up to 120 measurement values can be stored.
Printer output/Memorized data can be printed out using an optional printer.
Upper and lower limit temperature notification function/An alarm will sound when the upper and lower limit temperatures are reached. *A sensor (sold separately) is required for use. Code number: 8080-00
Main unit
Measurement range: Thermistor sensor: -30.0 to +199.9°C, K thermocouple sensor: -99.9 to 1250.0°C
Resolution Th (thermistor) Thermocouple (SK) -30.0 to 199.9℃/0.1℃ -99.9 to 199.9℃/0.1℃ 200 to 1250℃/1℃
Measurement accuracy:
★ [When thermistor sensor is connected] Main unit accuracy: ±0.2℃, Sensor accuracy: ±(0.1%rdg+0.2)℃/0.0 to 150.0℃, ±(0.2%rdg+0.4)℃/-30.0 to -0.1, 150.1 to 199.9℃
★ [When a thermocouple (SK) sensor is connected] Main unit accuracy: ±(0.1% rdg + 0.3) °C/0.0 to 199.9 °C, ±0.5 °C/-99.9 to -0.1 °C, ±(0.2% rdg + 1) °C/200 to 1250 °C, for sensor accuracy class 1 (JIS): ±1.5 °C/-40 °C or higher and lower than 375 °C, ±0.004 |t |/375 °C or higher and lower than 1000 °C
Main functions: MAX (maximum value), MIN (minimum value), HOLD (data hold), REL (amount of change), REC (memory), TIME (clock), alarm setting
Memory: Manual memory mode/150 data, Auto memory mode/100 data
Power supply: 4 AAA manganese batteries (included for testing) or AC adapter (sold separately)
Size: 66 x 25 x 175 mm
Weight: Approx. 200g (including batteries)
Accessories: Soft case (with strap)
Waterproof: IPX4 (JIS C 0920)
Country of Origin: Japan

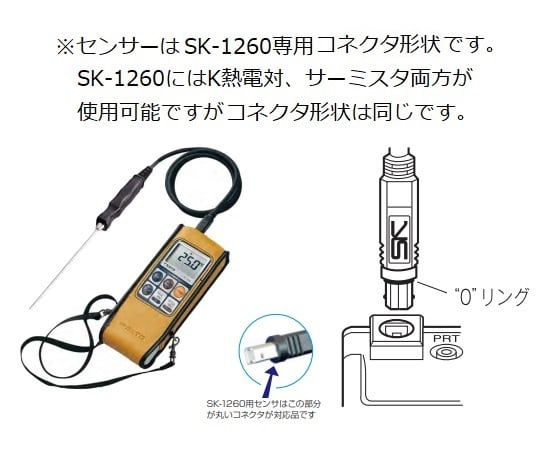

For dedicated insulated thermocouples, please see (1-9930-25, 1-9930-26).
