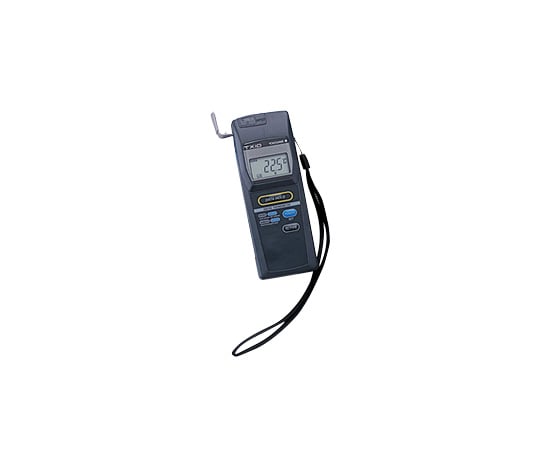

Digital thermometer 1ch single function TX10-01 1 unit
Digital thermometer 1ch single function TX10-01 1 unit
Regular price
¥23,100
Regular price
Sale price
¥23,100
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

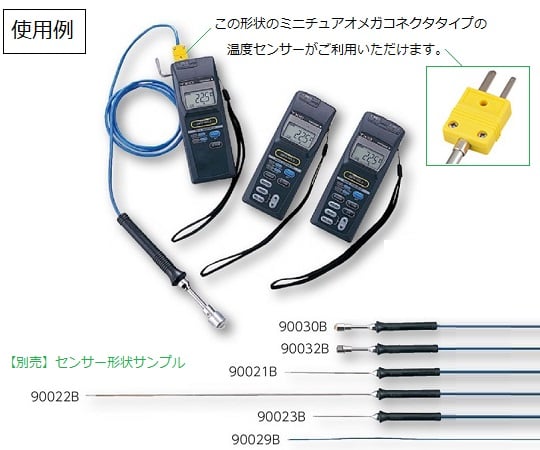

Compatible with four types of thermocouples: Type K, E, J, and T. Model number: TX10-01
Measurement range (℃): K/-200 to 1372, E/-200 to 700, J/-200 to 1000, T/-200 to 400
Type: 1ch single function
Water resistance: IP54 (IEC529, JIS C 0920 dustproof and water-resistant)
Power supply: 2 AA batteries (included for testing)
Size: 151 x 56 x 33mm (excluding protrusions)
Weight: Approx. 180g (including batteries)
Resolution: -200.0 to 199.9: 0.1℃ 200℃ or more: 1℃
Accuracy (main unit): -200.0 to -100.1°C/±(0.1%rdg+1.0°C), -100.0 to +199.9°C/±(0.1%rdg+0.7°C), 200°C or higher and 1°C resolution/±(0.2%rdg+1°C) *Reference junction compensation accuracy (including ±0.4°C. However, when the input terminal temperature is averaged)
* (Thermometer accuracy = main unit accuracy (including reference junction compensation accuracy) + temperature probe tolerance). Please add the tolerance of the temperature probe you are using.
Measurement interval: Approximately 1 second/time
*Sensor probe is not included.
