横河

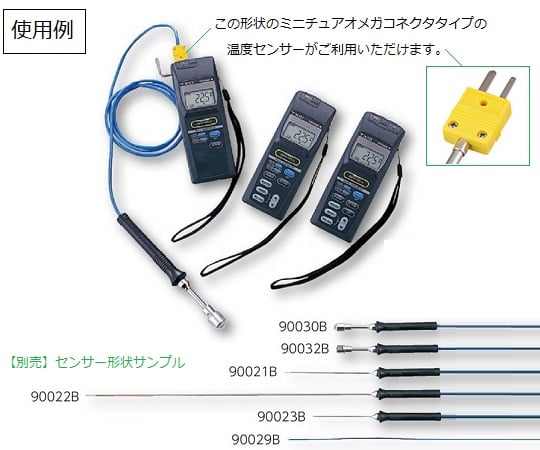

Digital thermometer 2ch multifunction with memory function TX10-03 1 unit
Digital thermometer 2ch multifunction with memory function TX10-03 1 unit
Regular price
¥31,900
Regular price
Sale price
¥31,900
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Supports four types of thermocouples: Type K, E, J, and T.
Comes standard with a memory function that can store 10 data items and a simple correction function. Model number: TX10-03
Measurement range (℃): K/-200 to 1372, E/-200 to 700, J/-200 to 1000, T/-200 to 400
Type: 2ch multifunction
Memory function: 10 points
Simple correction function
Water resistance: IP54 (IEC529, JIS C 0920 dustproof and water-resistant)
Power supply: 2 AA batteries (included for testing)
Size: 151 x 56 x 33mm (excluding protrusions)
Weight: Approx. 180g (including batteries)
Resolution: -200.0 to 199.9°C: 0.1 or 1°C (1°C resolution) 200°C or higher: 1°C
Accuracy (main unit): -200.0 to -100.1°C/±(0.1%rdg+1.0°C), -100.0 to +199.9°C/±(0.1%rdg+0.7°C), 200°C or higher and 1°C resolution/±(0.2%rdg+1°C) *Reference junction compensation accuracy (including ±0.4°C. However, when the input terminal temperature is averaged)
* (Thermometer accuracy = main unit accuracy (including reference junction compensation accuracy) + temperature probe tolerance). Please add the tolerance of the temperature probe you are using.
Measurement cycle: Approximately 1 second/time (when measuring 1 channel), approximately 2 seconds/time (when measuring 2 channels)
*Sensor probe is not included.
