Digital temperature controller (with alert output) TXN800W 1 unit

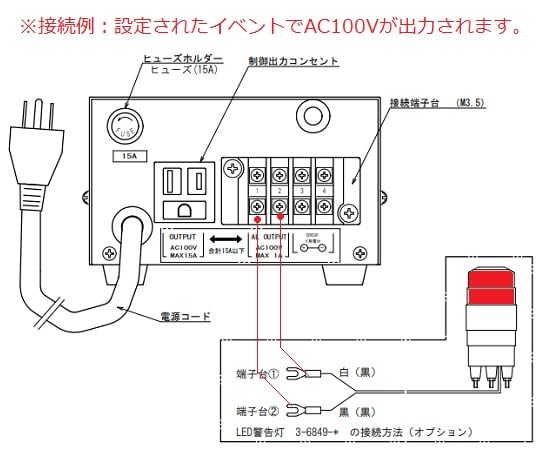

The 100V alert output makes it versatile. A general temperature controller is equipped with an alert output terminal. The alert output is 100V/1A, allowing various combinations such as warning lights and buzzers. Temperature control and alarm control can be set, and when the alarm setting is reached, the alarm output will be turned ON. The temperature control method is PID control, which allows for high-precision temperature control. This double component consists of an SSR and a relay, and if a malfunction occurs in the SSR, the relay circuit cuts off continuous current. The OUT lamp allows you to check the current output status at a glance. Specifications: 130 x 160 x 84 mm Power supply: AC100V 50/60Hz Connection capacity: AC100V MAX15A (including alert output) Temperature control method: PID control (with auto-tuning) Output control method: Voltage output by SSR Safety features: Double components SSR and relay, 15A fuse Power cord: Approx. 1.8m (3P plug) Weight: Approx. 1.5kg Temperature display accuracy: ±2°C or ±(0.3% + 1digit) of indicated value, whichever is greater Sensor type: K thermocouple Setting temperature: -100 to +1000℃ Setting method: UP/DOWN keys Timer type: Auto start, auto stop, SV start Timer setting time: 1 to 99 hours 59 minutes Connection terminal: Control output/3P outlet, Alarm output/Sensor input/M3.5Y terminal block Accessories: Sheath type K thermocouple sensor (compatible with 0 to 750°C) *The included K thermocouple sensor is a standard type. Please prepare a high temperature sensor separately.
