Tenmars
Digital insulation resistance tester (3 ranges) TM-507 1 unit
Digital insulation resistance tester (3 ranges) TM-507 1 unit
Regular price
¥37,290
Regular price
Sale price
¥37,290
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
It has a backlight function, so it can be used in dark places.
Equipped with auto-range and automatic power-off functions.
Comes with a low battery indicator that shows when the battery level is low. Dimensions (mm): 100 x 45 x 240
Weight (g): 450 (including batteries)
Insulation resistance: 250V/4MΩ~1000MΩ, 500V/4MΩ~2000MΩ, 1000V/4MΩ~4000MΩ
AC voltage: 600V
Power supply: 6 AA batteries (included for testing)
Continuity: Buzzer sounds when 30Ω or less

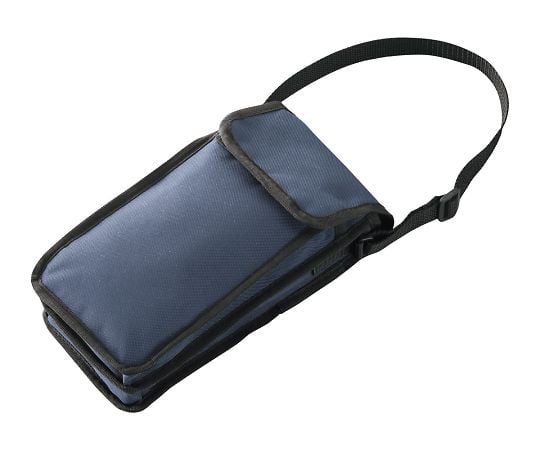

Accessories: Test cable set (measurement cable, crocodile clip, red and black cable x 1), carrying case, test batteries x 6
Safety standards: EN61010-1, EN61557
Temperature and humidity range: Operation: 0 to 40°C, within 70% RH, Storage: -10 to +60°C, within 70% RH
View full details
