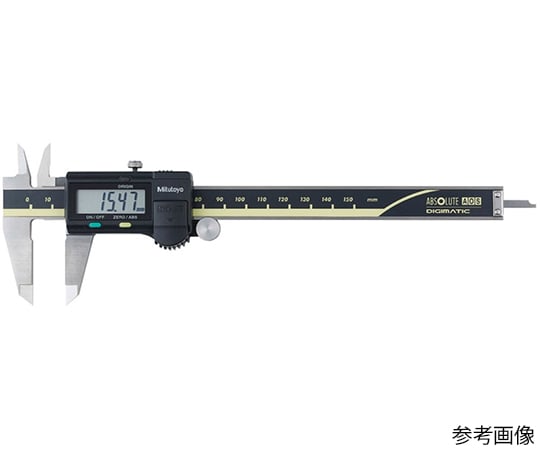

Digimatic Caliper 500-151-30 CD-15AX 1 piece

Uses an electromagnetic induction type absolute encoder (used in models with a measurement range of 200 mm or less). It has an ergonomic finger-hugging shape. Since it has a built-in ABS (absolute) scale with an absolute origin, zero setting is not required each time the power is turned on. In addition, overspeed errors never occur, improving reliability. The LCD display is a large, easy-to-read character type, and the high-contrast LCD display helps reduce fatigue. The use of an absolute scale has achieved a battery life of 18,000 continuous hours. It is also possible to measure step differences. The carbide tip type is ideal for measuring rough-machined products, castings, grinding wheels, etc. Models with a measurement data output terminal can be used to configure statistical process control systems and measurement systems. The slider (sliding surface) is smooth and ensures firm, comfortable operation. [Notes] CD-10AX, CD-15AXR, and CD-10APX come with a round depth bar (φ1.9mm). The CD-30C instrument error is the maximum instrument error. Measurement range (mm): 0 to 150 Instrument error (mm): ±0.02 Measurement data output terminal: Yes Sam Rolla: Yes Minimum display amount (mm): 0.01 Repeatability: 0.01mm Quantization error: ±1 count not included Power supply: One button-type silver oxide battery SR44 (No. 938882) included as standard (The button-type silver oxide battery included as standard is for monitor use) Position detection method: Electromagnetic induction type absolute encoder (*CD-30C is a capacitive type absolute encoder.) Battery life: Approximately 5 years under normal use (18,000 hours continuous use) Maximum response speed: Unlimited Weight: 162g
