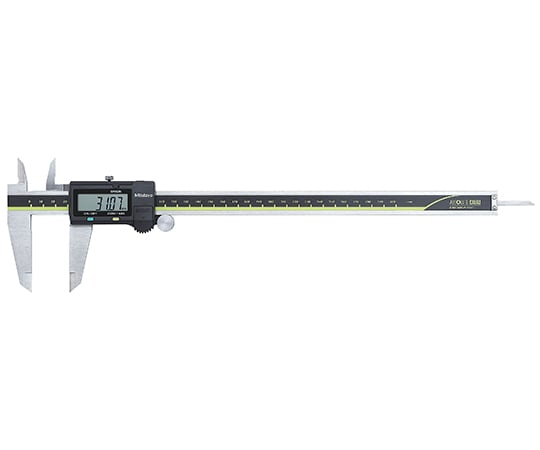

Digimatic Caliper 500-153-30 CD-30AX 1 piece

The character height on the LCD display has been increased to 11.0 mm, improving visibility (approximately 16% increase compared to other manufacturers' models). The ABS (absolute) scale eliminates the need to set the origin each time the power is turned on. With a main scale width of 20mm NI, the parallelism of the measuring surface is less likely to be affected. Achieves a battery life of approximately 5 years (18,000 continuous hours) under normal use. [Notes] The instrument error does not include quantization error. Data can be output externally via a connection cable (with a DATA output switch). Data hold is possible with the hold unit (with HOLD switch). Measurement range (mm: 0 to 300 Minimum display amount (mm): 0.01 Instrument error (mm): ±0.03 Repeatability (mm): 0.01 Sam Rolla: Yes Data output: Yes Power supply: Silver oxide battery (SR44) x 1 Battery life: Approximately 5 years (in normal use) Position detection method: Electromagnetic induction type absolute encoder Response speed: Unlimited LCD display: 7-segment 5-digit, minus sign, character height 11.0 mm Functions: Power ON/OFF, origin setting (ORIGIN), ZERO/ABS, data output, data hold Alarms: voltage drop, scale contamination error, overflow error Operating temperature (℃): 0-40 Storage temperature (℃): -10 to 60 Protection rating: None Size: 404 x 111.5 mm Weight: 350g
