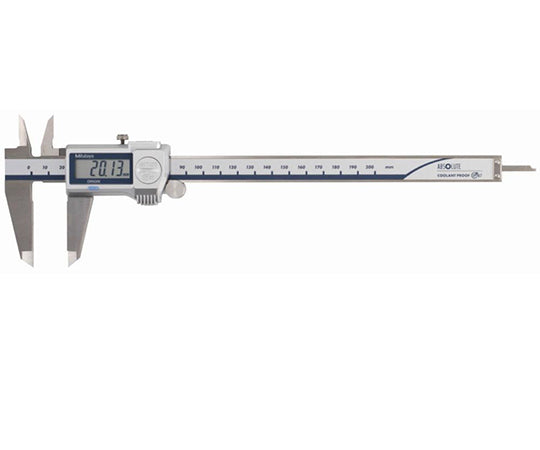

Digital Caliper 500-703-20 CD-P20S 1 piece

The ABS coolant-proof caliper (standard type) has achieved protection class IP67, so it can be used safely even in environments where it is exposed to large amounts of coolant. In addition, air leak tests are conducted on all products to confirm their airtightness, and quality is guaranteed. The LCD display is a large, easy-to-read character type, and the high-contrast LCD display helps reduce fatigue. The simple design with one switch makes measurement operation easy. The auto power ON/OFF function turns off the LCD display if it is not used for about 20 minutes. However, the origin of the ABS measuring system remains stored. Also, the power turns on automatically when the slider is moved. The built-in ABS (absolute) scale eliminates the need to set the origin each time the power is turned on, allowing you to start measuring immediately. It is also possible to measure step differences. The battery cover requires no screwdriver, allowing for quick battery replacement. Thanks to the low current consumption of the IC, the battery life has been dramatically improved to 5 years (previous product: 3 years). Models with a measurement data output terminal can be used to configure statistical process control systems and measurement systems. An inspection report is included as standard. (However, it cannot be used to obtain a calibration certificate.) [Notes] It is not waterproof, so anti-rust treatment is required after use. Measurement range (mm): 0 to 200 Wide range accuracy (μm): 0.01 Instrument error (mm): ±0.02 Battery life: Approximately 5 years under normal use Measurement data output terminal: None Repeatability: 0.01mm Quantization error: ±1 count not included Protection grade: IP67 (IEC60529) Power supply: One button-type silver oxide battery SR44 (No. 938882) included as standard (The button-type silver oxide battery included as standard is for monitor use) Position detection method: Electromagnetic induction type absolute encoder Maximum response speed: Unlimited Functions: Origin setting function, auto power ON/OFF function Weight: 198g
