A total of 10 channels of data can be acquired: voltage, temperature, and humidity (humidity is only one channel).

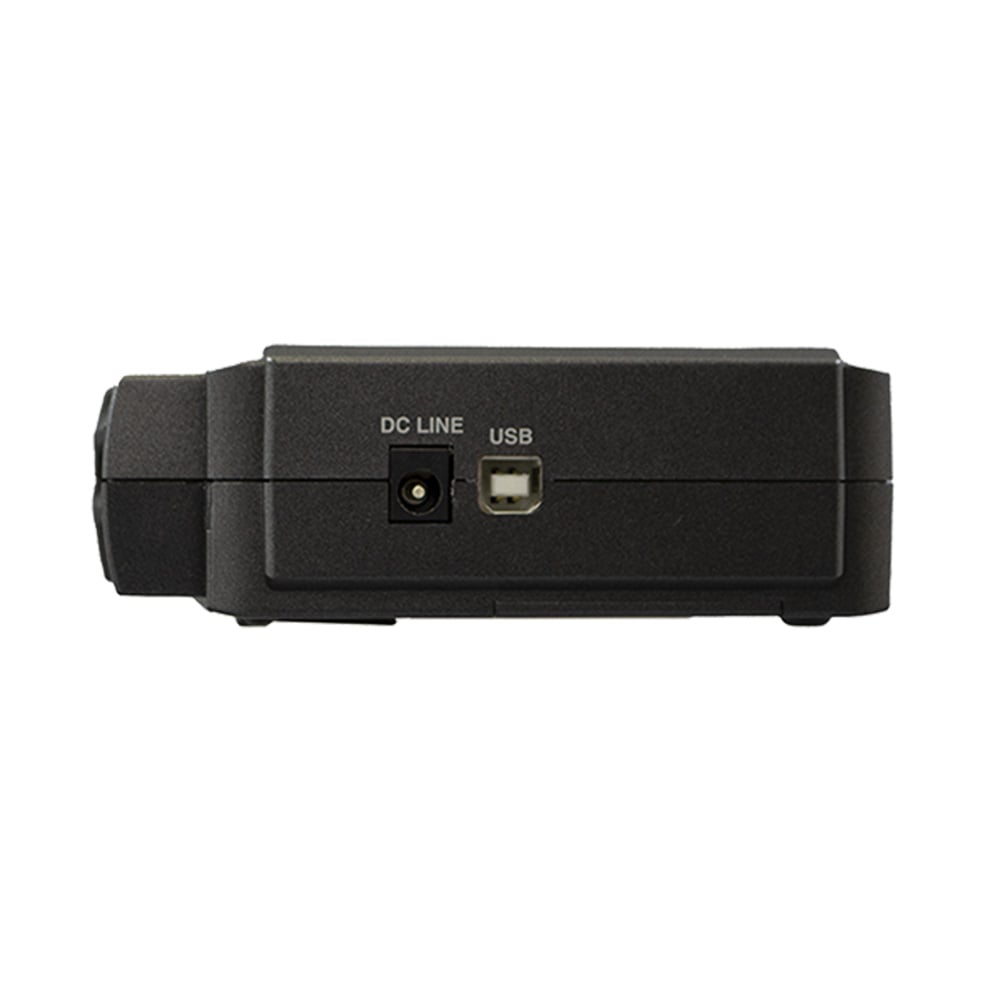

It has a USB interface so it can be connected to a computer.
Optional wireless LAN unit (B-568) can be installed. (Cannot be installed simultaneously with optional SD memory card) Dimensions (mm): Approx. 188 x 117 x 42
Weight (g): Approx. 500
Measurement range: Voltage: 20, 50, 100, 200, 500mV, 1, 2, 5, 10, 20, 50V, 100V, 1-5V/FS; Temperature: Thermocouple K, T, etc.; Humidity: 0-100% (option: B-530 required)

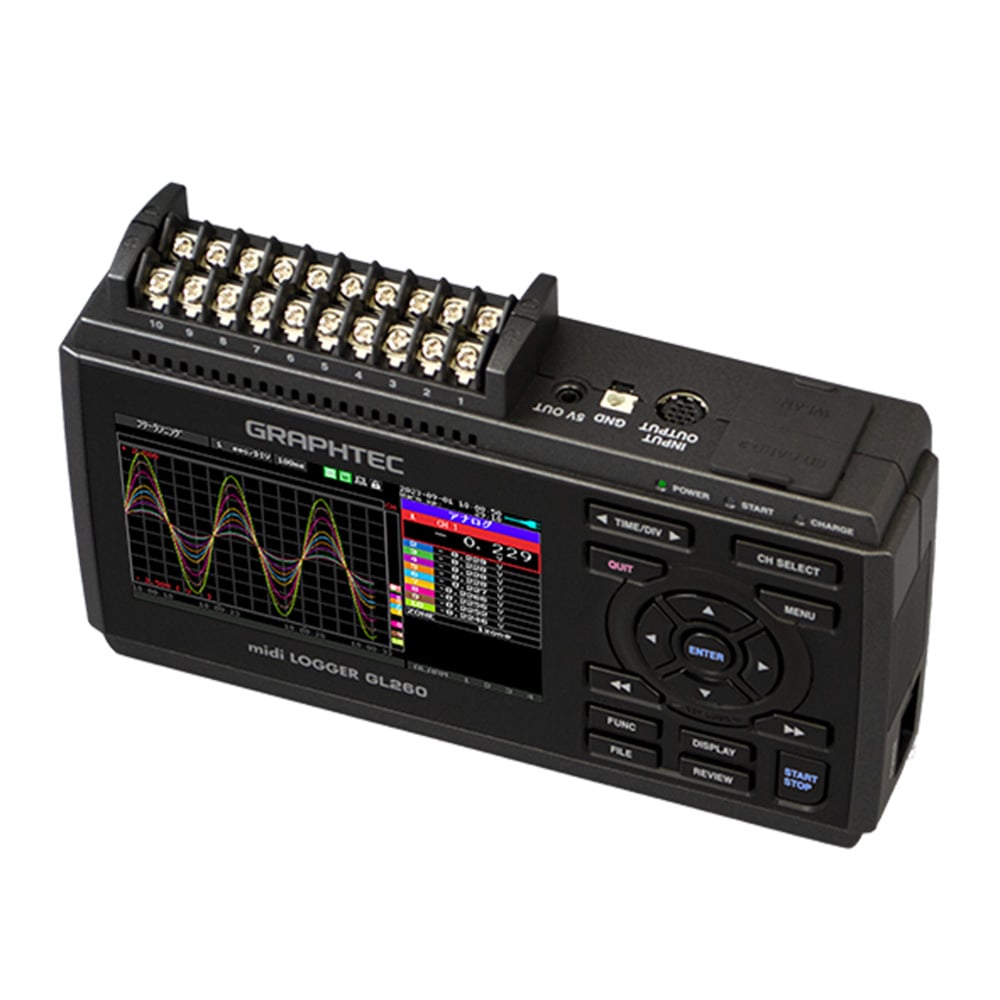

Input channels: 10ch, M3 screw terminal, 4 logic inputs or 4 pulse inputs *GL I/O cable (B-513) is required.
Sampling period: 10ms to 1h (10 to 50ms is voltage only, there are channel restrictions depending on the sampling period)
All channels have isolated inputs
Built-in memory: SD1 approx. 8GB (built-in, fixed) *Recording files up to 2GB per file
Display contents: Analog waveform, past data display during measurement, digital value
Supported OS: Windows 11/10
Power supply: AC100-240V 50/60Hz (AC adapter included) or DC input DC8.5-24V (option: B-514 required)
*Battery pack (B-573) is optional.
