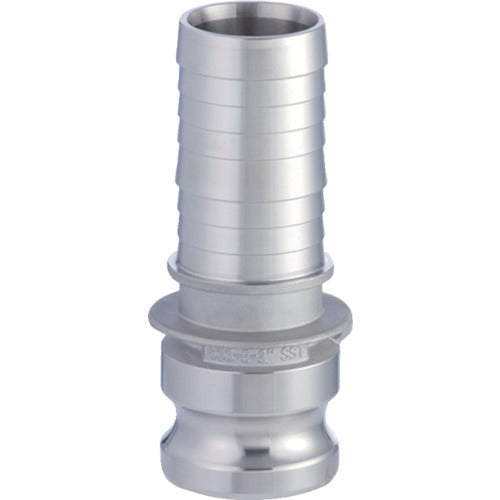

Toyox Camlock Adapter Hose Shank Stainless Steel 633-E 4 inch SST 633-E-4-SST 1 pc

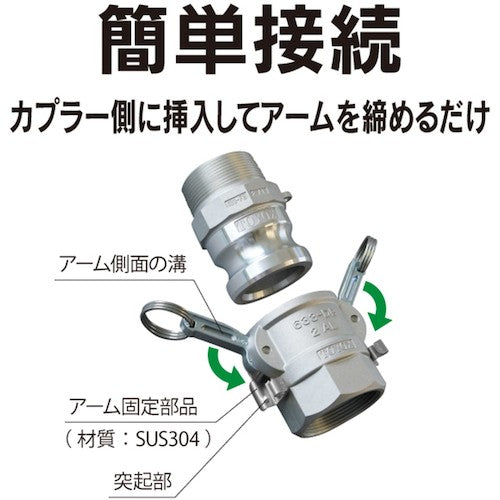

Catalog number: 633-E-4-SST Features: ● [Easy connection] A detachable joint that can be easily attached by simply inserting it into the coupler side and tightening the arm. ● [Safety] OPW Camlock is a safe and reliable global brand. Manufactured to strict quality standards. ● [Quality] With excellent durability, pressure resistance, heat resistance, and corrosion resistance, it can be used in fluid transport sites around the world. ● [Compatible with a variety of fluids] Camlock materials are available in aluminum alloy, stainless steel, polypropylene, and bronze, and can be selected according to the fluid. Uses: ●For factory equipment piping and removable piping for various machine installations Specifications: ●Pressure resistance (MPa): -0.1 to 1.1 ●Fluids used: air, water (industrial water), chemicals, solvents, paints, oil, beverages, drinking water, food ●Usage temperature range (℃): -10 to 100 (same as standard gasket NBR) ●Maximum operating pressure (MPa): 1.1 ●Matching side mounting size (inches): 4 ●For hose connection ●The operating temperature range of the camlock is the same as that of the gasket. However, the upper limit for PP (polypropylene) camlocks is 60℃. Material/Finish: ●Body: Stainless steel SCS14 (equivalent to SUS316) Caution: ●Select the body and gasket materials appropriate for the fluid to be used. If the chemical is a gas, do not use chemicals that are dangerous when they penetrate (such as active gases). ●The chemical resistance of the product may change depending on the conditions of use, temperature, pressure, concentration, and duration, so please evaluate it by the user under the actual equipment and conditions of use. ●Do not apply external force (shocks, etc.) to the body, cam arm, or parts. This may cause damage. Also, be careful not to apply a load (stress) to the connection parts. This may cause fluid leakage. ●Gaskets made of fluororesin lack elasticity and may leak depending on the conditions of use, so please contact us in advance. (Toyox Customer Service Center toll free 0120-52-3132) ●When joining products, we recommend using couplers and adapters made of the same material. Joining couplers and adapters made of different materials may cause corrosion (electrolytic corrosion).
