Toyox Camlock Coupler Male Thread Resin 633-BB 1 inch PP 633-BB-1-PP 1 piece

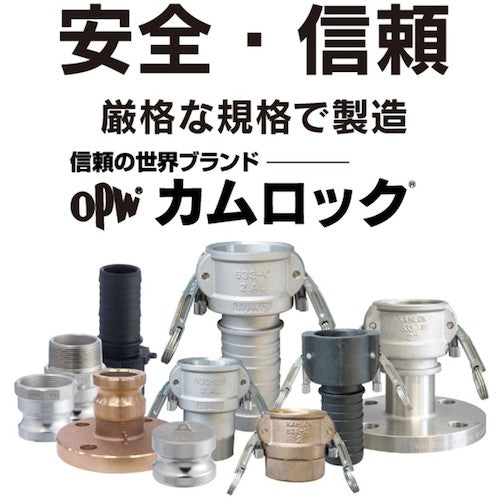

Catalog number: 633-BB-1-PP Features: ● [Easy connection] A detachable joint that can be simply inserted into the adapter side and tightened. ● [Safety] The cam arm is resistant to vibration and does not easily come off, preventing fluid leakage. ● [Ease of use] The arm can be temporarily fixed in the open state, making connection work smooth. ● [Safety] OPW Camlock is a safe and reliable global brand. Manufactured to strict quality standards. ● [Quality] With excellent durability, pressure resistance, heat resistance, and corrosion resistance, it can be used in fluid transport sites around the world. ● [Compatible with various fluids] Camlock materials are available in aluminum alloy, stainless steel, polypropylene, and bronze, and can be selected according to the fluid. Uses: ● For factory equipment piping and detachable piping for various machine installations Specifications: ● Pressure resistance (MPa): -0.1 to 0.7 (23°C), -0.1 to 0.25 (60°C) ● Fluids used: air, water (industrial water), chemicals, solvents, paints, oil, beverages, drinking water, food ● Maximum operating pressure (MPa): 0.7 (23°C), 0.25 (60°C) ● Operating temperature range (°C): 0 to 60 ● Counterpart mounting size (inch): 1 ● Connection thread: R1 ● Thread: JIS pipe taper thread (R) ● The operating temperature range of the camlock is the same as that of the gasket. However, the upper limit of the camlock made of PP (polypropylene) is 60°C. Material/Finish: Body: Polypropylene; Gasket (standard equipment): NBR (Buna-N); Cam arm: SCS14 (equivalent to SUS316); Pin, ring: SUS304 Caution: Select the body and gasket materials appropriate for the fluid to be used. If the chemical is gaseous, do not use chemicals that are dangerous if they penetrate (active gases, etc.). The chemical resistance of the product may vary depending on the conditions of use, temperature, pressure, concentration, and duration, so please evaluate it yourself under the actual equipment and conditions of use. Do not apply external force (shock, etc.) to the body, cam arm, or parts. This may cause damage. Also, be careful not to apply load (stress) to the connection. This may cause fluid leakage. Gaskets made of fluororesin lack elasticity and may leak depending on the conditions of use, so please contact us in advance. (Toyox Customer Service Center Toll Free 0120-52-3132) When connecting products, we recommend using couplers and adapters made of the same material. When connecting couplers and adapters made of different materials, corrosion (galvanic corrosion) may occur.
