Toyox Camlock Coupler Hose Shank Resin 633-C 1 inch PP 633-C-1-PP 1 pc

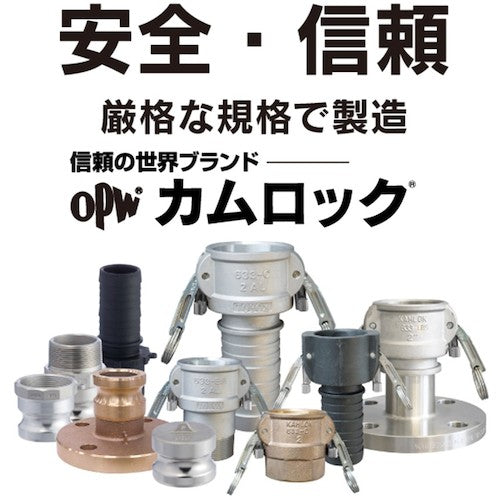

Catalog number: 633-C-1-PP Features: ● [Easy connection] A detachable fitting that can be easily attached by simply inserting it into the adapter side and tightening the arm. ● [Safety] The cam arm is resistant to vibration and has a structure that makes it difficult for it to come off, preventing fluid leakage. ● [Ease of use] The fitting can be easily attached and detached, allowing for smooth connection work. ● [Peace of mind] OPW Camlock is a safe and reliable global brand. Manufactured to strict quality standards. ● [Quality] With excellent durability, pressure resistance, heat resistance, and corrosion resistance, it can be used at fluid transport sites around the world. ● [Compatible with various fluids] Camlock materials are available in aluminum alloy, stainless steel, polypropylene, and bronze, and can be selected according to the fluid. Uses: ●For factory equipment piping and removable piping for various machine installations Specifications: ●Pressure resistance (MPa): -0.1 to 0.7 (23°C), -0.1 to 0.25 (60°C) ●Fluids used: air, water (industrial water), chemicals, solvents, paints, oil, beverages, drinking water, food ●Maximum operating pressure (MPa): 0.7 (23°C), 0.25 (60°C) ●Operating temperature range (°C): 0 to 60 ●Matching side mounting size (inch): 1 ●For hose connection ●The operating temperature range of the camlock is the same as that of the gasket. However, the upper limit for PP (polypropylene) camlocks is 60°C. Material/Finish: ●Body: Polypropylene ●Gasket (standard equipment): NBR (Buna-N) ●Cam arm: SCS14 (equivalent to SUS316) ●Pin, ring: SUS304 Note: ●Select the body and gasket materials appropriate for the fluid to be used. If the chemical is gas, do not use chemicals that are dangerous if they penetrate (such as active gases). ●The chemical resistance of the product may vary depending on the conditions of use, temperature, pressure, concentration, and duration, so please evaluate it yourself based on the equipment and conditions of use. ●Do not apply external force (shock, etc.) to the body, cam arm, or parts. This may cause damage. Also, be careful not to apply load (stress) to the connection. This may cause fluid leakage. ●Gaskets made of fluororesin lack elasticity and may leak depending on the conditions of use, so please contact us in advance. (Toyox Customer Service Center toll free 0120-52-3132) ●When joining products, we recommend using couplers and adapters made of the same material. If couplers and adapters made of different materials are joined, corrosion (electrolytic corrosion) may occur.
