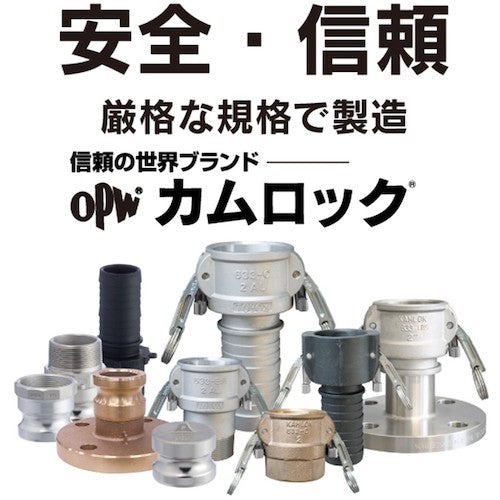

Toyox Camlock Coupler Female Thread Stainless Steel 633-DB 1/2 inch SST 633-DB-1/2-SST 1 piece

Catalog number: 633-DB-1/2-SST Features: ● [Easy connection] Detachable fitting that can be simply inserted into the adapter side and tightened. ● [Safety] The cam arm is resistant to vibration and does not easily come off, preventing fluid leakage. ● [Ease of use] Fittings can be easily attached and detached, allowing smooth connection work. ● [Peace of mind] OPW Camlock is a safe and reliable global brand. Manufactured to strict quality standards. ● [Quality] With excellent durability, pressure resistance, heat resistance, and corrosion resistance, it can be used at fluid transport sites around the world. ● [Compatible with various fluids] Camlock materials are available in aluminum alloy, stainless steel, polypropylene, and bronze, and can be selected according to the fluid. 1/2、3/4●Connection thread: Rc1/2●Connection thread: Rc1/2●Operating temperature range: -10 to 100℃(Conforms to standard gasket NBR)●Maximum operating pressure: 1.8MPa Material/Finish: ●Body: Stainless steel (SCS14)●Gasket: Nitrile rubber (NBR) (Buna-N)●Cam arm: SCS14 (equivalent to SUS316)●Pin, ring: SUS304 Caution: ●Select body and gasket materials appropriate for the fluid to be used. If the chemical is gas, do not use chemicals that are dangerous if they penetrate (such as active gases). ●The chemical resistance of the product may vary depending on the conditions of use, temperature, pressure, concentration, and duration, so please evaluate it yourself based on the equipment and conditions of use. ●Do not apply external force (shock, etc.) to the body, cam arm, or parts. This may cause damage. Also, be careful not to apply load (stress) to the connection. This may cause fluid leakage. ●Gaskets made of fluororesin lack elasticity and may leak depending on the conditions of use, so please contact us in advance. (Toyox Customer Service Center toll free 0120-52-3132) ●When joining products, we recommend using couplers and adapters made of the same material. If couplers and adapters made of different materials are joined, corrosion (electrolytic corrosion) may occur.
