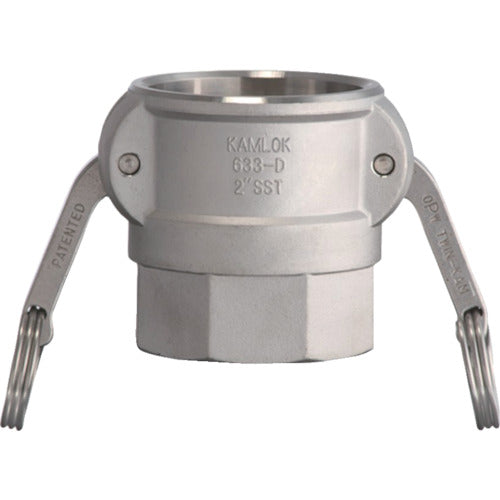

Toyox Camlock Coupler Female Thread Stainless Steel 633-DB 4 inch SST 633-DB-4-SST 1 pc

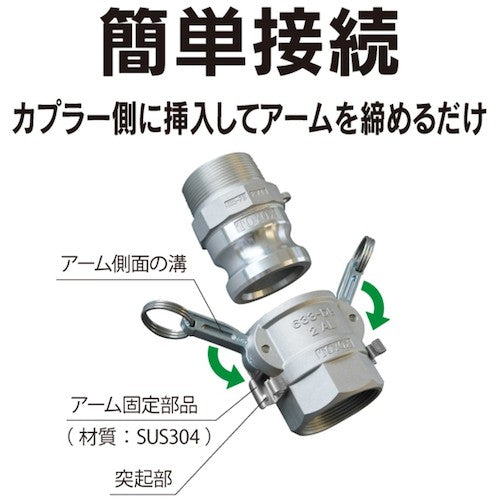

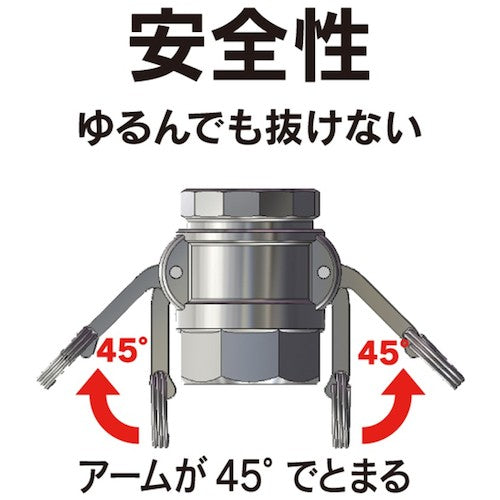

Catalog number: 633-DB-4-SST Features: ● [Easy connection] Detachable fitting that can be easily inserted into the adapter side and tightened. ● [Safety] The cam arm is resistant to vibration and does not easily come off, preventing fluid leakage. ● [Workability] The fitting can be easily attached and detached, allowing for smooth connection work. ● [Peace of mind] OPW Camlock is a safe and reliable global brand. Manufactured to strict quality standards. ● [Quality] With excellent durability, pressure resistance, heat resistance, and corrosion resistance, it can be used at fluid transport sites around the world. ● [Compatible with various fluids] Camlock materials are available in aluminum alloy, stainless steel, polypropylene, and bronze, and can be selected according to the fluid. Uses: ● For factory equipment piping and detachable piping for various machine installations Specifications: ● Pressure resistance (MPa): -0.1 to 1.1 ● Fluids used: air, water (industrial water), chemicals, solvents, paints, oil, beverages, drinking water, food ● Maximum operating pressure (MPa): 1.1 ● Operating temperature range (℃): -10 to 100 (conforms to standard gasket NBR) ● Counterpart mounting size (inch): 4 ● Connection thread: Rc4 ● Connection thread: Rc4 ● Screw: JIS pipe taper screw (Rc) ● The operating temperature range of the camlock conforms to the gasket. However, the upper limit for PP (polypropylene) camlocks is 60℃. Material/Finish: ●Body: Stainless steel SCS14 (equivalent to SUS316) ●Gasket (standard equipment): NBR (Buna-N) ●Cam arm: SCS14 (equivalent to SUS316) ●Pin, ring: SUS304 Caution: ●Select the body and gasket materials appropriate for the fluid to be used. If the chemical is gaseous, do not use chemicals that are dangerous if they penetrate (active gases, etc.). ●The chemical resistance of the product may change depending on the conditions of use, temperature, pressure, concentration, period, etc., so please evaluate it by the user under the actual equipment and conditions of use. ●Do not apply external force (shock, etc.) to the body, cam arm, or parts. It may cause damage. Also, be careful not to apply load (stress) to the connection part. It may cause fluid leakage. ●Gaskets made of fluororesin lack elasticity and may leak depending on the conditions of use, so please contact us in advance. (Toyox Customer Service Center toll free at 0120-52-3132) When joining products, we recommend using couplers and adapters made of the same material. Joining couplers and adapters made of different materials may cause corrosion (electrochemical corrosion).
