Toyox Camlock Twin Lock Type Coupler Female Thread Stainless Steel 633-DBL 1 inch SST 633-DBL-1-SST 1 piece

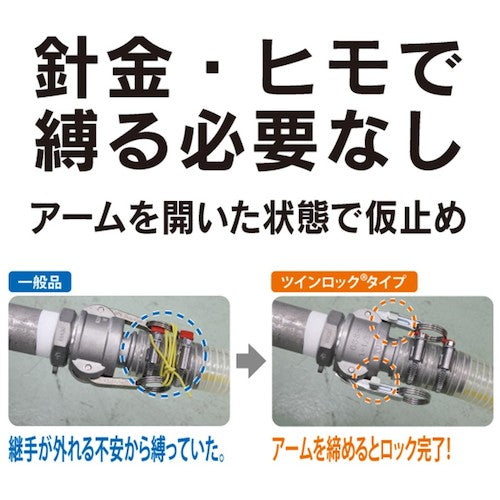

Catalog number: 633-DBL-1-SST Features: ● [Standardization] When the arm (lever) is tightened, it locks with a "click" and will not come off even with vibration, so it is reliable and safe. ● [Safety] The arm (lever) can be easily locked, preventing it from loosening or coming off unexpectedly. ● [Workability] The arm (lever) can be temporarily fixed in the open state, so the camlock connection work can be done smoothly. There is no need to tie the arm (lever) with wire or string to prevent it from coming off, which improves workability. ● [Safety] OPW Camlock is a safe and reliable global brand. It is manufactured to strict quality standards. ● [Compatible with various fluids] Camlock materials are available in aluminum alloy, stainless steel, polypropylene, and bronze, and can be selected according to the fluid. Uses: ● For factory equipment piping and detachable piping for various machine installations Specifications: ● Pressure resistance (MPa): -0.1 to 1.8 ● Fluids used: air, water (industrial water), chemicals, solvents, paints, oil, beverages, drinking water, food ● Maximum operating pressure (MPa): 1.8 ● Operating temperature range (℃): -10 to 100 (conforms to standard gasket NBR) ● Counterpart mounting size (inch): 1 ● Connection thread: Rc1 ● Operating temperature range: -10 to 100℃ (conforms to standard gasket NBR) ● Maximum operating pressure: 1.8MPa Material/Finish: ● Body: Stainless steel (SCS14) ● Gasket: Nitrile rubber (NBR) (Buna-N) ● Cam arm: SCS14 (equivalent to SUS316) ● Pin, ring: SUS304 Caution: ● Please select the body and gasket materials appropriate for the fluid to be used. If the chemical is a gas, do not use chemicals that are dangerous when they permeate (such as active gases). ●The chemical resistance of the product may vary depending on the conditions of use, temperature, pressure, concentration, and duration, so please evaluate it yourself based on the equipment and conditions of use. ●Do not apply external force (shock, etc.) to the body, cam arm, or parts. This may cause damage. Also, be careful not to apply load (stress) to the connection. This may cause fluid leakage. ●Gaskets made of fluororesin lack elasticity and may leak depending on the conditions of use. Please contact us in advance. (Toyox Customer Service Center toll free 0120-52-3132) ●When joining products, we recommend using couplers and adapters made of the same material. When joining couplers and adapters made of different materials, corrosion (electrolytic corrosion) may occur.
