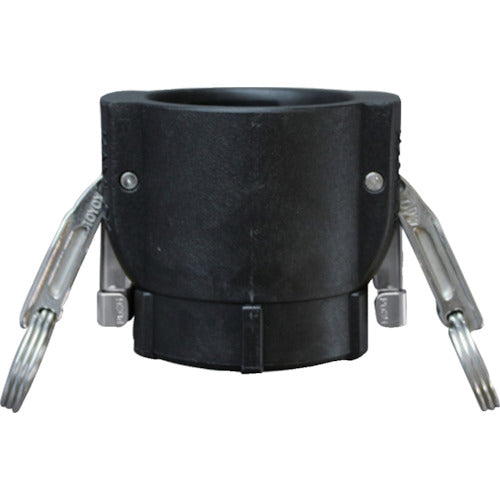

Toyox Camlock Twin Lock Type Coupler Female Thread Resin 633-DBL1-1/2 inch PP 633-DBL-1-1/2-PP 1 pc

Catalog number: 633-DBL-1-1/2-PP Features: ● [Standardization] When the arm (lever) is tightened, it locks with a "click" and will not come off even with vibration, so it is reliable and safe. ● [Safety] The arm (lever) can be easily locked, preventing the arm from loosening or coming off unexpectedly. ● [Workability] The arm (lever) can be temporarily fixed in the open state, making the connection work of the cam lock smooth. There is no need to tie the arm (lever) with wire or string to prevent it from coming off, improving workability. ● [Safety] OPW Camlock is a safe and reliable global brand. Manufactured to strict quality standards. ● [Compatible with various fluids] Camlock materials are available in aluminum alloy, stainless steel, polypropylene, and bronze, and can be selected according to the fluid. Uses: ● For factory equipment piping and detachable piping for various machine installations Specifications: ● Pressure resistance (MPa): -0.1 to 0.7 (23°C), -0.1 to 0.25 (60°C) ● Fluids used: air, water (industrial water), chemicals, solvents, paints, oil, beverages, drinking water, food ● Maximum operating pressure (MPa): 0.7 (23°C), 0.25 (60°C) ● Operating temperature range (°C): 0 to 60 ● Connection thread: Rc1-1/2 ● Counterpart mounting size (inch): 1-1/2 ● Screw: JIS pipe taper screw (Rc) ● The operating temperature range of the camlock is the same as that of the gasket. However, the upper limit of the camlock made of PP (polypropylene) is 60°C. Material/Finish: Body: Polypropylene; Gasket (standard equipment): NBR (Buna-N); Cam arm: SCS14 (equivalent to SUS316); Pin, ring: SUS304 Caution: Select the body and gasket materials appropriate for the fluid to be used. If the chemical is gaseous, do not use chemicals that are dangerous if they penetrate (active gases, etc.). The chemical resistance of the product may vary depending on the conditions of use, temperature, pressure, concentration, and duration, so please evaluate it yourself under the actual equipment and conditions of use. Do not apply external force (shock, etc.) to the body, cam arm, or parts. This may cause damage. Also, be careful not to apply load (stress) to the connection. This may cause fluid leakage. Gaskets made of fluororesin lack elasticity and may leak depending on the conditions of use, so please contact us in advance. (Toyox Customer Service Center Toll Free 0120-52-3132) When connecting products, we recommend using couplers and adapters made of the same material. When connecting couplers and adapters made of different materials, corrosion (galvanic corrosion) may occur.
