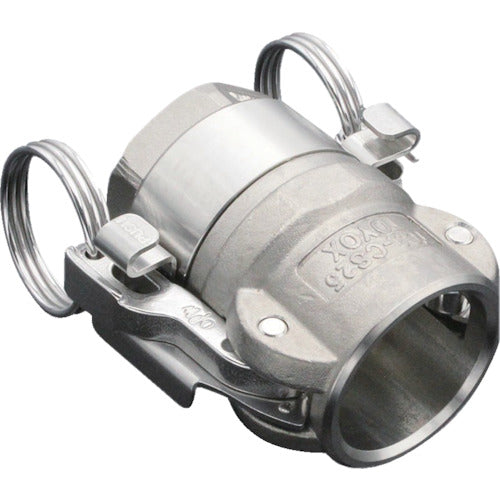

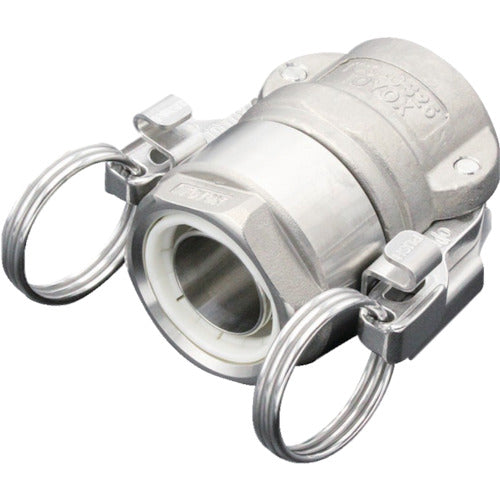

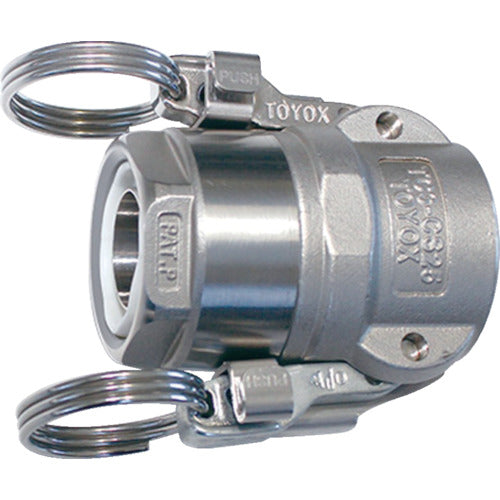

Toyox Hose Fitting (Stainless Steel) Toyo Connector TC3-CS Type Compatible Hose 19mm Fitting Standard 3/4 TC3-CS19 TC3-CS19 1 pc

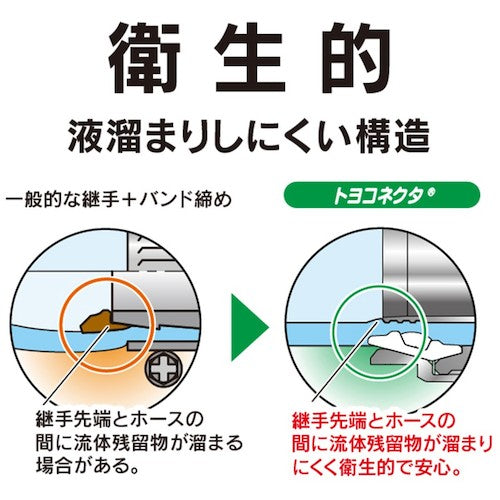

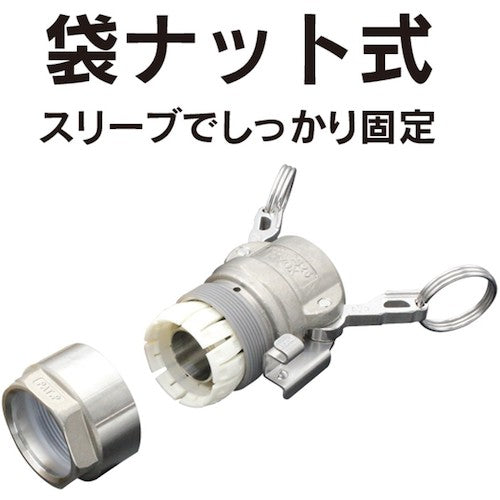

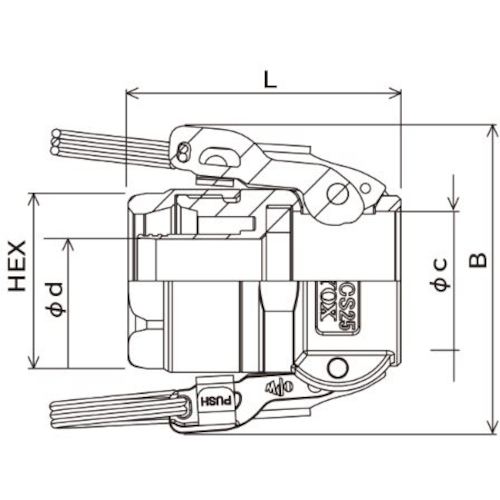

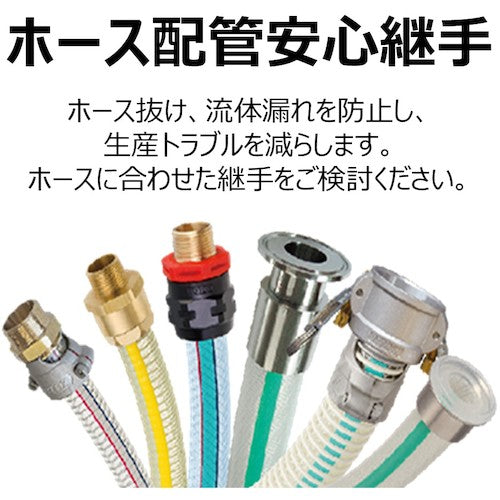

Catalog number: TC3-CS19 Features: ● Prevents problems such as insufficient flow rate, fluid leakage, and hose coming off between the hose and the fitting. ● Compatible with Camlock. ● [Standardization of installation work] Uniform installation work is possible by simply tightening the cap nut without any gaps. Also, there is no need for additional tightening work like with hose bands. ● [Safety] The lever (arm) can be easily locked, preventing the lever (arm) from loosening or coming off unexpectedly. ● [Risk reduction] Prevents piping problems such as leakage and coming off due to vibration and earthquakes. ● [Reusable hose fitting] When reusing, it can be reused by simply replacing the parts inside the fitting. Uses: ● For hose piping of food, beverages, cosmetics, chemicals, etc. Specifications: ● Fluids used: air, water (industrial water), chemicals, oil, beverages, drinking water, food ● Suitable hose inner diameter (mm): 19 ● Suitable hose outer diameter (mm): 26 ● Thread dimensions: R3/4 ● Fitting standard: 3/4 ● Suitable hose inner diameter x outer diameter (mm): 19 x 26 ● Dimension L (mm): 62.5 ● Dimension Φd (mm): 17 ● Dimension A (mm): 112 ● Dimension B (mm): 66 ● Dimension φC (mm): 32.4 ● Dimension HEX (mm): 36 ● Operating pressure and temperature range: Conforms to compatible hose standards Materials/Finish: ● Nipple, cam arm: Stainless steel SCS14 (equivalent to SUS316) ● Fixing parts, ring, pin, spring : Stainless steel (SUS304) ● Cap nut: Stainless steel SCS13 (equivalent to SUS304) ● Gasket, packing: Silicone rubber ● Sleeve: Polyacetal Note: ● This product is a hose fitting exclusively for Toyox hoses. If it is connected to a hose of another company or a hose other than the compatible hose, the performance may not be fully demonstrated or maintained, so no guarantee is made. ● This product is compatible with Camlock. Please select the body and gasket material suitable for the fluid to be used. If the chemical is a gas, do not use chemicals that are dangerous if they penetrate (active gases). ● Do not apply external force (shock, etc.) to the body, cam arm, or parts. It may cause damage. Also, be careful not to apply load (stress) to the connection part. It may cause fluid leakage. ● Gaskets made of fluororesin lack elasticity and may leak depending on the conditions of use, so please contact us in advance. (Toyox Customer Service Center Toll Free 0120-52-3132) ● When connecting products, we recommend using couplers and adapters made of the same material. When connecting couplers and adapters made of different materials, corrosion (galvanic corrosion) may occur.
