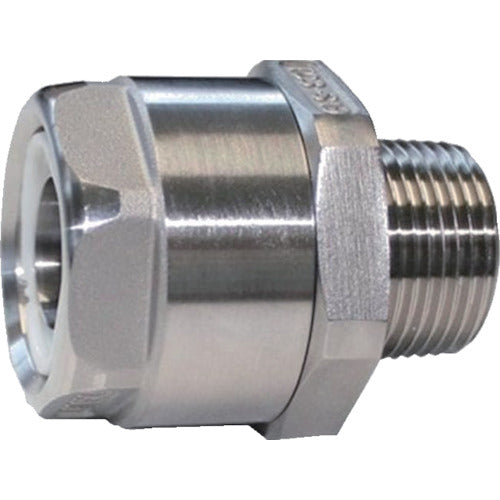

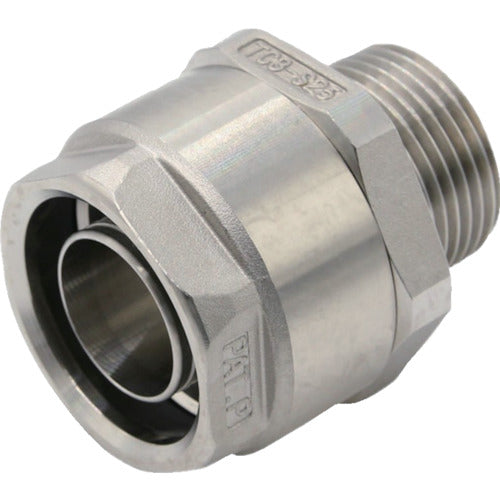

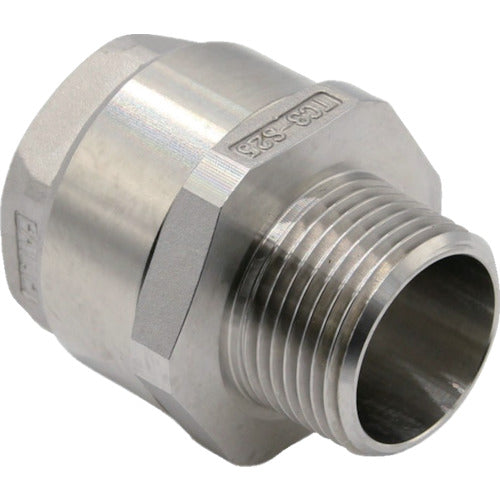

Toyox Hose Fitting (Stainless Steel) Toyo Connector TC3-S Type Compatible Hose 12mm Fitting Standard R3/8 TC3-S12-R3/8 TC3-S12-R3/8 1 pc

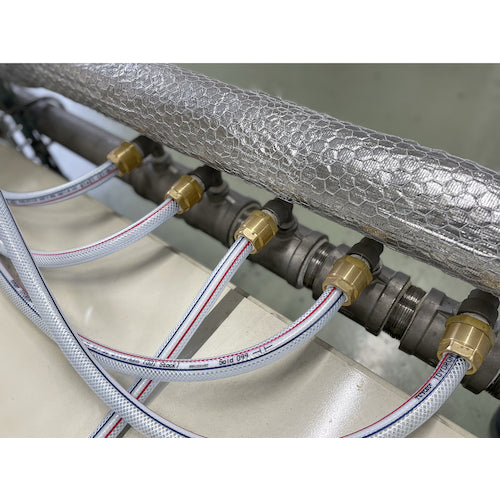

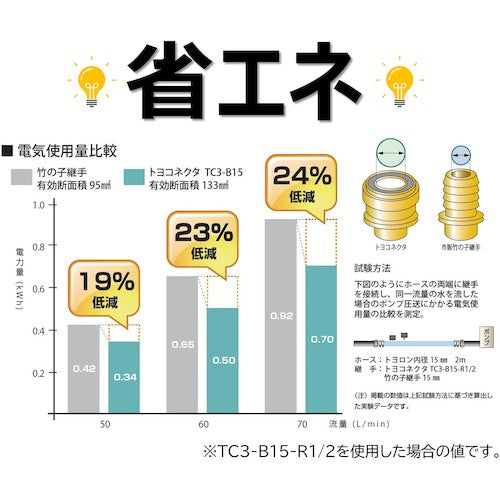

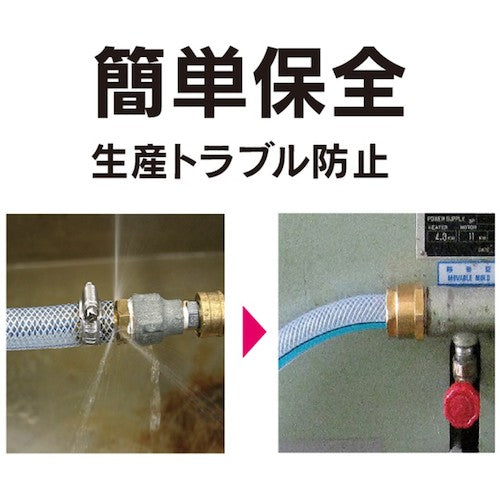

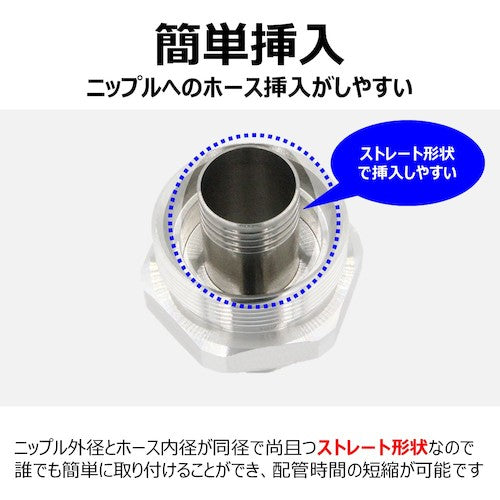

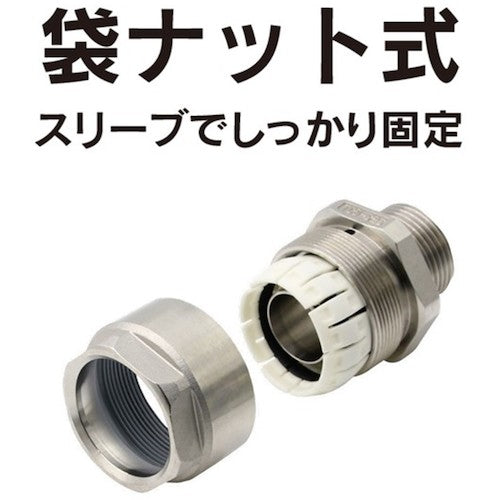

Catalog number: TC3-S12-R3/8 Features: ● A joint (male thread) exclusively for Toyox hoses (excluding silicone hoses). ● [Leak and pull-out prevention hose joint] A hose joint that prevents production problems such as fluid leakage and hose pull-out, enabling stable production. ● [Standardization of installation work] A hose joint that allows uniform installation work by simply tightening the cap nut to the end. In addition, there is no need for additional tightening work like with hose bands. ● [Energy saving] Compared to general bamboo shoot joints, the effective cross-sectional area is wider and pressure loss can be reduced, so you can expect a reduction in power consumption. ● [Easy installation] Compared to conventional joints, the hose mouth is the same diameter as the hose, making it easier to insert the hose and reducing piping time. ● [Risk reduction] Prevents piping problems such as leaks and pull-outs due to vibration and earthquakes. ● [Reusable hose joint] When reusing, it can be reused by simply replacing the parts inside the joint. Uses: ● For hose piping for water supply and drainage, oil, chemicals, air, etc. Specifications: ● Fluids used: air, water (industrial water), chemicals, solvents, paints, oil ● Compatible hose inner diameter (mm): 12 ● Compatible hose outer diameter (mm): 18 ● Thread dimensions: R3/8 ● Dimension L (mm): 44.5 ● Dimension Φd1 (mm): 10 ● Dimension HEX1 (mm): 32 ● Dimension HEX2 (mm): 27 ● Pressure-resistant hose fitting ● Operating pressure and temperature range: Conforms to compatible hose standards Material/Finish: ● Nipple, cap nut: SCS13 (equivalent to SUS304) ● Sleeve: Polyacetal ● Rubber packing: Nitrile rubber (NBR) Caution: ● This product is a hose fitting exclusively for Toyox hoses. If it is connected to a hose from another company or a hose other than the compatible hose, there is no guarantee that the product will not perform or maintain its full performance. ● Do not use the hose in an extremely bent state near the fitting. Use with a bending radius larger than the hose's minimum bending radius. Tighten the cap nut until there is no gap. Using the product with a gap can cause problems such as fluid leakage or the hose coming loose. When reusing this product, be sure to replace it with a new sleeve. Also, be sure to use a new hose. Check the material of the flow path (inner surface) of this product. Deterioration or fluid leakage may occur depending on the type of fluid.
