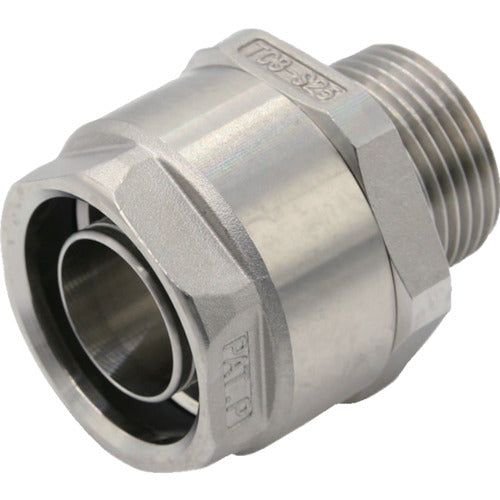

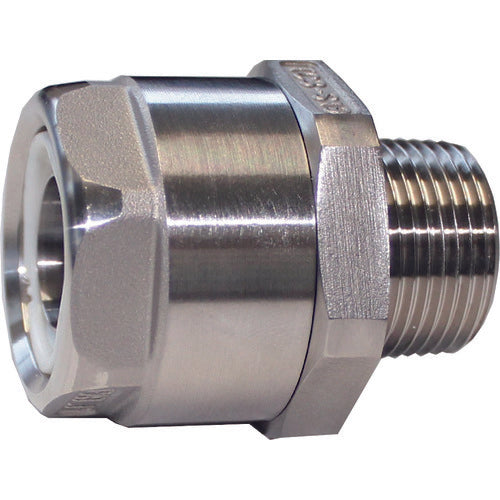

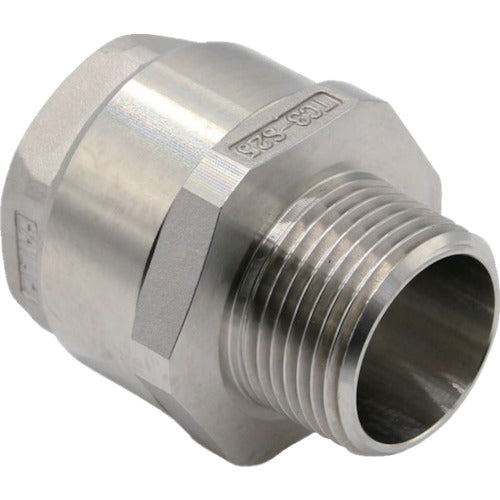

Toyox hose fitting (stainless steel) Toyoconnector TC3-S type compatible with hose 19 mm fitting standard R3/4 TC3-S19-R3/4 TC3-S19-R3/4 1 piece

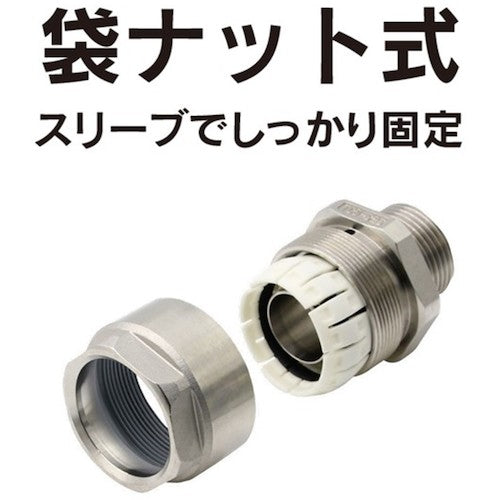

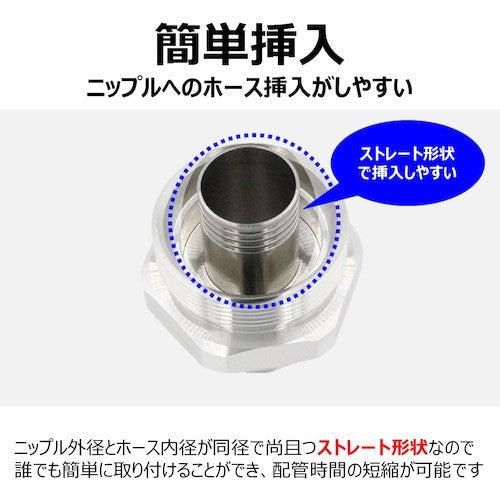

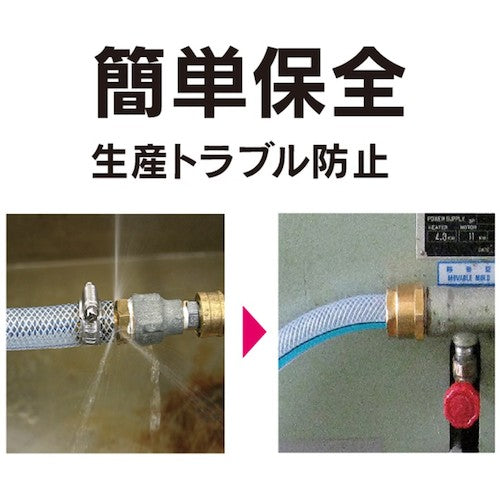

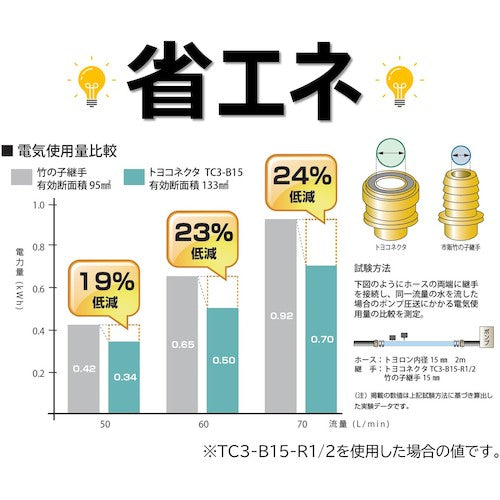

Catalog number: TC3-S19-R3/4 Features: ● Prevents hoses from coming loose and fluid leaks, reducing production problems. ● [Leak and fall-off prevention hose fitting] This hose fitting prevents production problems such as fluid leaks and hoses coming loose, allowing for stable production. ● [Standardization of installation work] This hose fitting allows for uniform installation work by simply tightening the bag nut all the way. In addition, there is no need for additional tightening work like with hose bands. ● [Energy saving] Compared to general bamboo shoot fittings, the effective cross-sectional area is wider and pressure loss can be reduced, so you can expect a reduction in power consumption. ● [Easy installation] Compared to conventional fittings, the hose mouth is the same diameter as the hose, making it easier to insert the hose and reducing piping time. ● [Risk reduction] Prevents piping problems such as leaks and fall-offs due to vibration and earthquakes. ● [Reusable hose fitting] When reusing, it can be reused by simply replacing the parts inside the fitting. Uses: ● For general industrial piping. Specifications: ● Fluids used: air, water (industrial water), chemicals, solvents, paints, oils ● Inner diameter of compatible hose (mm): 19 ● Outer diameter of compatible hose (mm): 26 ● Thread dimensions: R3/4 ● Dimension L (mm): 53.5 ● Dimension Φd1 (mm): 16.5 ● Dimension HEX1 (mm): 41 ● Dimension HEX2 (mm): 36 ● Operating pressure, operating temperature range: Conforms to compatible hose standards Material/Finish: ● Nipple, cap nut: SCS13 (equivalent to SUS304) ● Sleeve: Polyacetal ● Rubber packing: Nitrile rubber (NBR) Caution: ● This product is a hose fitting exclusively for Toyox hoses. If it is connected to a hose of another company or a hose other than the compatible hose, it may not be possible to fully demonstrate or maintain its performance, so we do not guarantee anything. ● Do not use the hose in an extremely bent state near the fitting. Use it with a bending radius larger than the minimum bending radius of the hose. ● Tighten the cap nut until there is no gap. If a gap is present when using the product, problems such as fluid leakage or the hose coming loose may occur. When reusing this product, be sure to replace it with a new sleeve. Also, be sure to use a new hose. Please check the material of the flow passage (inner surface) of this product. Deterioration or fluid leakage may occur depending on the type of fluid.
