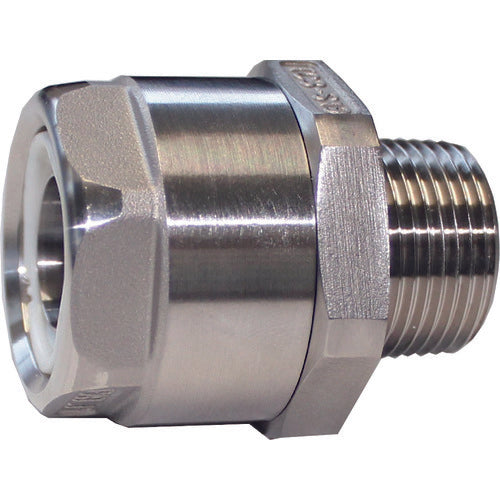

Toyox hose fitting (stainless steel) Toyoconnector TC3-S type compatible with hose 9 mm fitting standard R3/8 TC3-S9-R3/8 TC3-S9-R3/8 1 piece

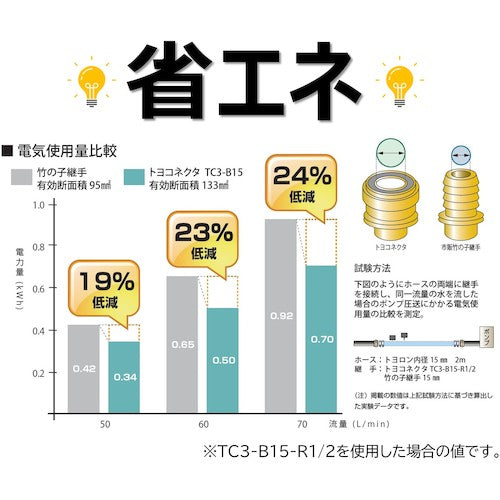

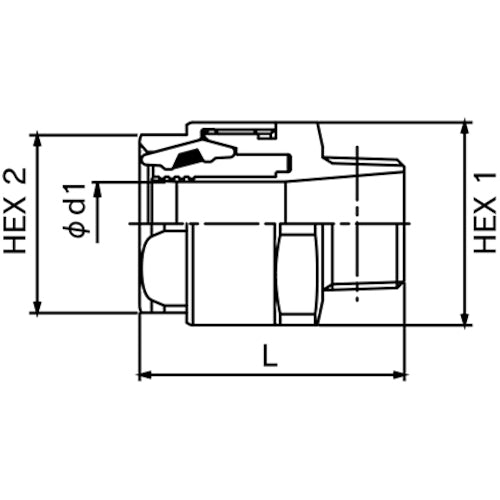

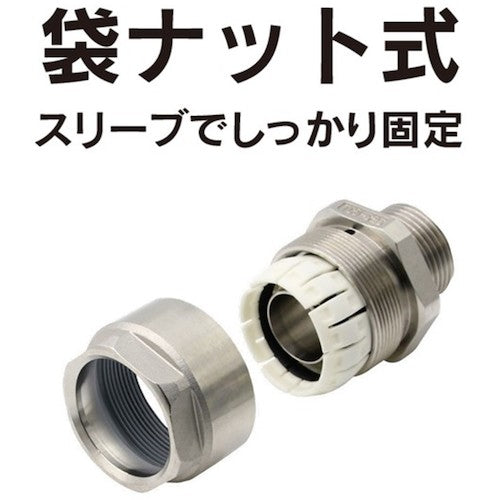

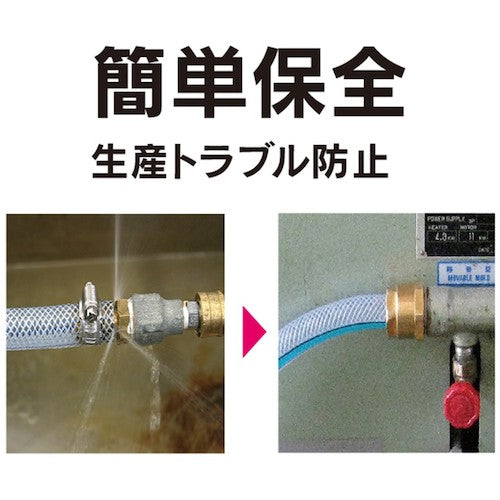

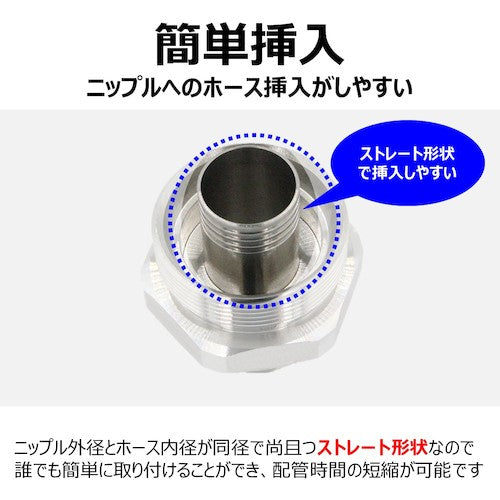

Catalog number: TC3-S9-R3/8 Features: ●The effective cross-sectional area is larger than that of bamboo shoot fittings, and pressure loss can be reduced, so it is expected to be effective in reducing power consumption. ●Standardization of work and maintenance-free, leading to reduced maintenance. ●Prevents hoses from coming loose and fluid leakage, reducing production problems. ●Compared to conventional fittings, the hose mouth is the same diameter as the hose, making it easier to insert the hose and reducing piping time. ●[Easy installation] Compared to conventional fittings, the hose mouth is the same diameter as the hose, making it easier to insert the hose and reducing piping time. ●[Risk reduction] Prevents piping problems such as leaks and coming loose due to vibration and earthquakes. ●[Reusable hose fittings] When reusing, it can be reused by simply replacing the parts inside the fitting. Applications: ●For general industrial piping. Specifications: ● Fluids used: air, water (industrial water), chemicals, solvents, paints, oils ● Compatible hose inner diameter (mm): 9 ● Compatible hose outer diameter (mm): 15 ● Thread dimensions: R3/8 ● Dimension L (mm): 43.5 ● Dimension Φd1 (mm): 7 ● Dimension HEX1 (mm): 29 ● Dimension HEX2 (mm): 24 ● Operating pressure, operating temperature range: Conforms to compatible hose standards Material/Finish: ● Nipple, cap nut: Stainless steel SCS13 (equivalent to SUS304) ● Sleeve: Polyacetal ● Rubber packing: Nitrile rubber (NBR) Caution: ● This product is a hose fitting exclusively for Toyox hoses. If it is connected to a hose of another company or a hose other than the compatible hose, it may not be possible to fully demonstrate or maintain its performance, so we do not guarantee anything. ● Do not use the hose in an extremely bent state near the fitting. Use it with a bending radius larger than the minimum bending radius of the hose. ● Tighten the cap nut until there is no gap. If a gap is present when using the product, problems such as fluid leakage or the hose coming loose may occur. When reusing this product, be sure to replace it with a new sleeve. Also, be sure to use a new hose. Please check the material of the flow passage (inner surface) of this product. Deterioration or fluid leakage may occur depending on the type of fluid.
