Toyox hose fitting (stainless steel) Toyo Connector TC3-SS type compatible with hose 15 mm fitting standard R1/2 TC3-SS15-R1/2 TC3-SS15-R1/2 1 piece

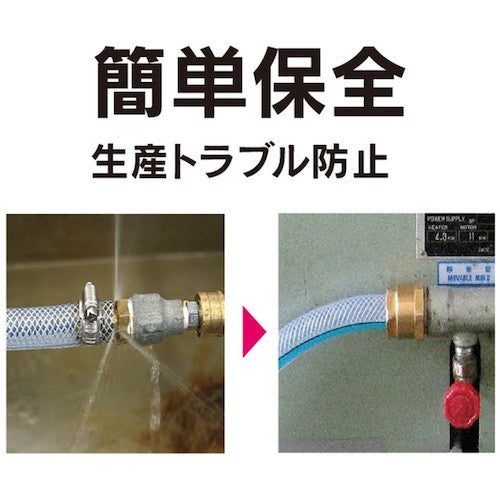

Catalog number: TC3-SS15-R1/2 Features: ●Toyox Toyo Silicone series exclusive fitting (screw). ●[Leak and pull-out prevention hose fitting] This hose fitting prevents production troubles such as fluid leakage and hose pull-out, enabling stable production. ●[Standardization of installation work] This hose fitting allows uniform installation work by simply tightening the bag nut to the end. In addition, there is no need for additional tightening work like with hose bands. ●Compared to bamboo shoot fittings, it has a wider effective cross-sectional area and reduces pressure loss, so it is expected to be effective in reducing power consumption. ●[Easy installation] Compared to conventional fittings, the hose mouth is the same diameter as the hose, making it easier to insert the hose and reducing piping time. ●[Risk reduction] Prevents piping troubles such as leaks and pull-outs due to vibration and earthquakes. ●[Reusable hose fitting] When reusing, it can be reused by simply replacing the parts inside the fitting. Uses: ● For hose piping for water supply and drainage, oil, chemicals, air, etc. Specifications: ● Fluids used: air, water (industrial water), chemicals, oil ● Compatible hose inner diameter (mm): 15.9 ● Compatible hose outer diameter (mm): 24 ● Thread dimensions: R1/2 ● Dimension L (mm): 55 ● Dimension Φd1 (mm): 13.3 ● Dimension HEX1 (mm): 36 ● Dimension HEX2 (mm): 30.8 ● Operating temperature range: Conforms to the standards of the Toyo Silicone Hose Series Materials/Finish: ● Nipple: Stainless steel SCS16 (equivalent to SUS316L) ● Cap nut: Stainless steel SCS13 (equivalent to SUS304) ● Sleeve: Polyvinylidene fluoride (PVDF) Caution: ● This product is a hose fitting exclusively for Toyox hoses. If it is connected to a hose of another company or a hose other than the compatible hose, there is no guarantee that the product will not perform or maintain its full performance. ● Do not use the hose in an extremely bent state near the fitting. Use with a bending radius larger than the hose's minimum bending radius. ●Tighten the cap nut until there is no gap. Using the product with a gap can cause problems such as fluid leakage or the hose coming loose. ●When reusing this product, be sure to replace the sleeve. Also, be sure to use a new hose. ●The material used for the flow path (inner surface) of this product is SCS16 (equivalent to SUS316L). Depending on the type of fluid, corrosion or fluid leakage may occur.
