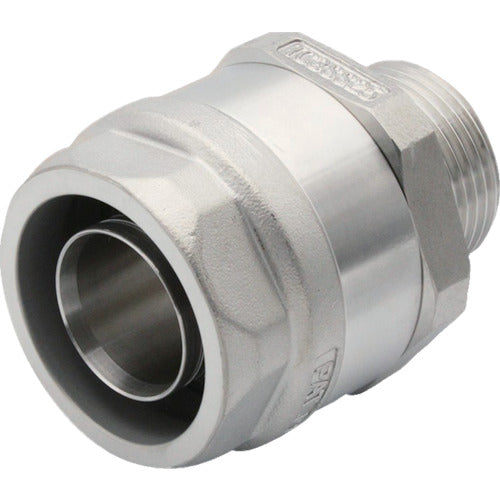

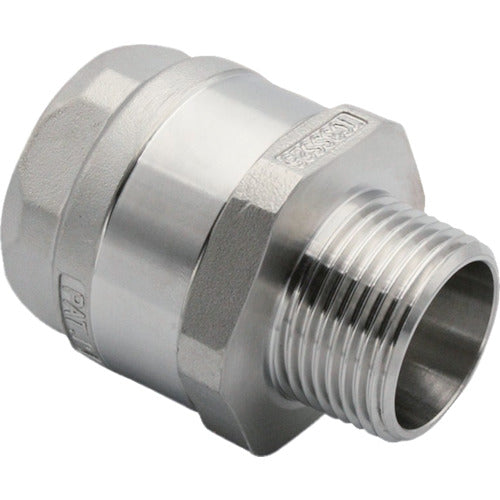

Toyox Hose Fitting (Stainless Steel) Toyo Connector TC3-SS Type Compatible Hose 9mm Fitting Standard R3/8 TC3-SS9-R3/8 TC3-SS9-R3/8 1 pc

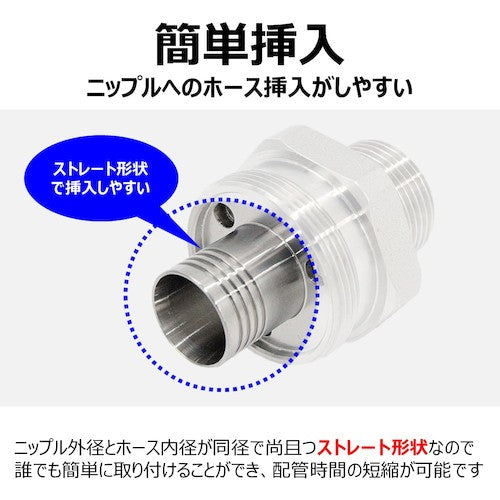

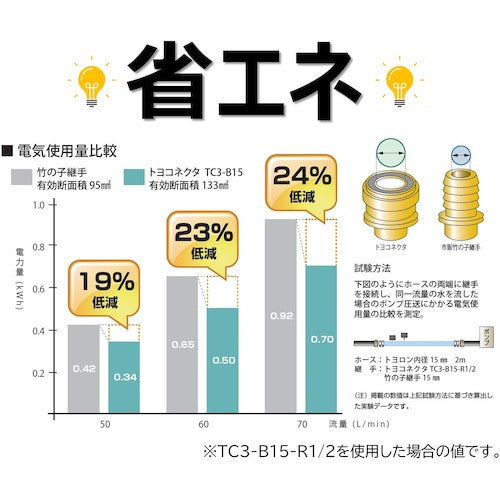

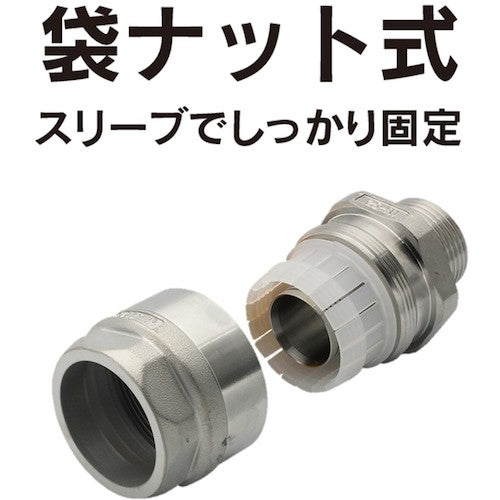

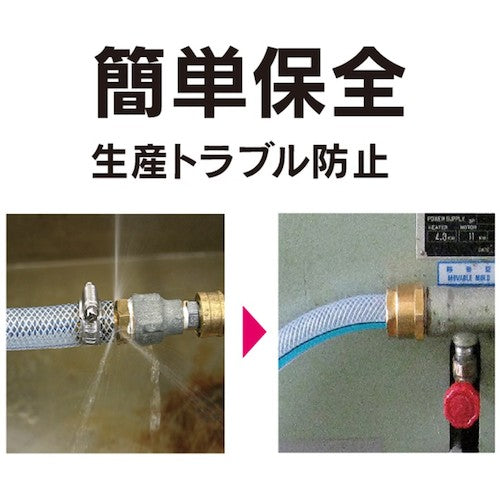

Catalog number: TC3-SS9-R3/8 Features: ●Compared to bamboo shoot fittings, the effective cross-sectional area is wider and pressure loss is smaller, so it is expected to be effective in reducing power consumption. ●[Leak-proof hose fitting] This is a hose fitting that prevents production problems such as fluid leakage and hose coming off, allowing for stable production. ●[Leak-proof hose fitting] This is a hose fitting that prevents production problems such as fluid leakage and hose coming off, allowing for stable production. ●Compared to conventional fittings, the hose mouth is the same diameter as the hose, making it easier to insert the hose and reducing piping time. ●[Standardization of installation work] This is a hose fitting that allows uniform installation work by simply tightening the bag nut to the end. In addition, there is no need for additional tightening work like with hose bands. ●[Easy installation] Compared to conventional fittings, the hose mouth is the same diameter as the hose, making it easier to insert the hose and reducing piping time. ●[Risk reduction] Prevents piping problems such as leakage and coming off due to vibration and earthquakes. ●[Reusable hose fitting] When reusing, it can be reused by simply replacing the parts inside the fitting. Uses: ● For hose piping for water supply and drainage, oil, chemicals, air, etc. Specifications: ● Fluids used: air, water (industrial water), chemicals, oil ● Compatible hose inner diameter (mm): 9.5 ● Compatible hose outer diameter (mm): 16 ● Thread dimensions: R3/8 ● Dimension L (mm): 48 ● Dimension Φd1 (mm): 6.9 ● Dimension HEX1 (mm): 28 ● Dimension HEX2 (mm): 24.2 ● Operating temperature range: Conforms to the standards of the Toyo Silicone Hose Series Materials/Finish: ● Nipple: Stainless steel SCS16 (equivalent to SUS316L) ● Cap nut: Stainless steel SCS13 (equivalent to SUS304) ● Sleeve: Polyvinylidene fluoride (PVDF) Caution: ● This product is a hose fitting exclusively for Toyox hoses. If it is connected to a hose of another company or a hose other than the compatible hose, there is a possibility that the performance may not be fully demonstrated or maintained, so no guarantee is made. ● Do not use the hose in an extremely bent state near the fitting. Use with a bending radius larger than the hose's minimum bending radius. ●Tighten the cap nut until there is no gap. Using the product with a gap can cause problems such as fluid leakage or the hose coming loose. ●When reusing this product, be sure to replace the sleeve. Also, be sure to use a new hose. ●The material used for the flow path (inner surface) of this product is SCS16 (equivalent to SUS316L). Depending on the type of fluid, corrosion or fluid leakage may occur.
