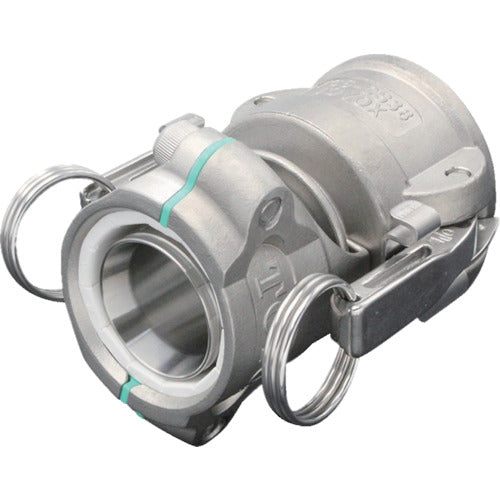

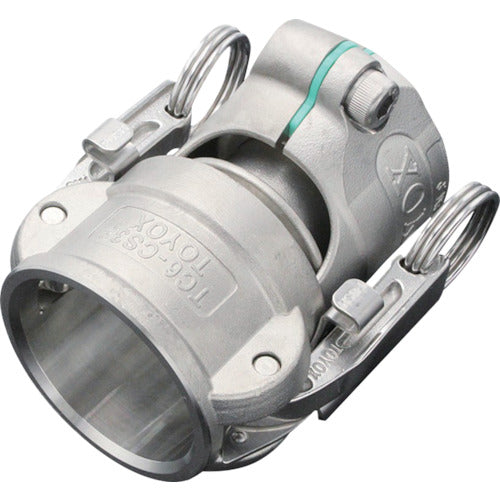

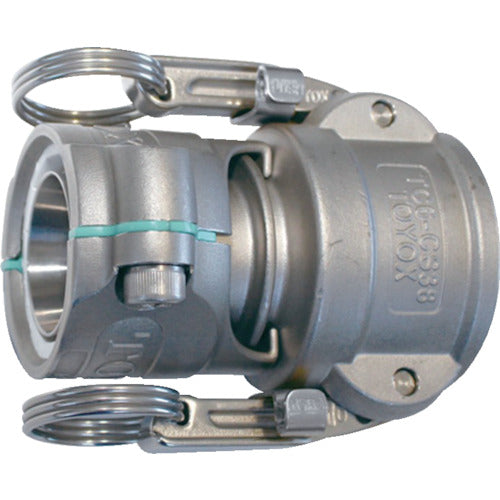

Toyox hose fitting (stainless steel) Toyo Connector TC6-CS type Suitable for hose 38 mm Fitting standard R1-1/2 TC6-CS38 TC6-CS38 1 piece

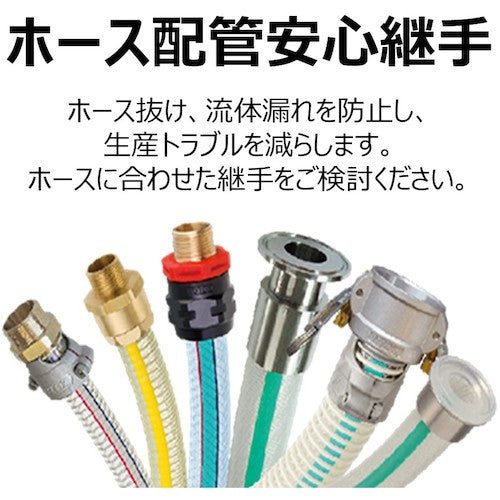

Catalog number: TC6-CS38 Features: ● Prevents problems such as insufficient flow rate, fluid leakage, and hose dislodging that occur between the hose and the fitting. ● [Leak and dislodging prevention hose fitting] A hose fitting that prevents production problems such as fluid leakage and hose dislodging, allowing for stable production. ● [Standardization of installation work] Uniform installation work is possible by simply tightening the dedicated clamp without any gaps. In addition, there is no need for additional tightening work like with hose bands. ● [Safety] The lever (arm) can be easily locked, preventing the lever (arm) from loosening or coming off unexpectedly. ● [Risk reduction] Prevents piping problems such as leakage and dislodging due to vibration and earthquakes. ● [Reusable hose fitting] When reusing, it can be reused by simply replacing the parts inside the fitting. ● Compatible with cam locks. Uses: ● For hose piping of food, beverages, cosmetics, chemicals, etc. Specifications: ● Fluids used: air, water (industrial water), chemicals, oil, beverages, drinking water, food ● Suitable hose inner diameter (mm): 38 ● Suitable hose outer diameter (mm): 48 ● Fitting standard: 1-1/2 ● Suitable hose inner diameter x outer diameter (mm): 38 x 48 ● Dimension L (mm): 106 ● Dimension Φd (mm): 32 ● Dimension F (mm): 88 ● Dimension A (mm): 184 ● Dimension B (mm): 93 ● Dimension φC (mm): 54 ● Dimension HEX (mm): 6 ● Fitting for pressure-resistant hose ● Operating pressure and temperature range: Conforms to compatible hose standards Materials/Finish: ● Nipple, cam arm: SCS14 (equivalent to SUS316) ● Fixing parts, ring, pin, spring: SUS304 ● Clamp: SUS14 (equivalent to SUS316) ● Gasket: Silicone rubber Caution: ●This product is a hose fitting exclusively for Toyox hoses. If it is connected to a hose of another company or a hose other than the compatible hose, the performance may not be fully demonstrated or maintained, so no guarantee is made. ●Select the body and gasket materials appropriate for the fluid to be used. If the chemical is a gas, do not use chemicals that are dangerous if they penetrate (active gases). ●Do not apply external force (shock, etc.) to the body, cam arm, or parts. This may cause damage. Also, be careful not to apply load (stress) to the connection part. This may cause fluid leakage. ●Gaskets made of fluororesin lack elasticity and may leak depending on the conditions of use, so please contact us in advance. (Toyox Customer Service Center toll free 0120-52-3132) ●When connecting products, we recommend using couplers and adapters made of the same material. If connecting couplers and adapters made of different materials, corrosion (electrolytic corrosion) may occur.
