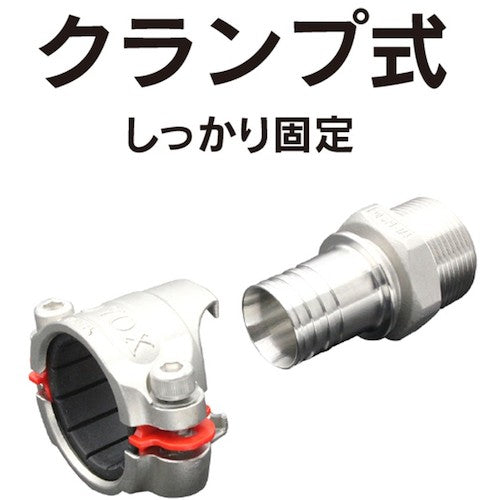

Toyox hose fitting (stainless steel) Toyoconnector TC6-S type compatible with hose 32 mm fitting standard R1-1/4 TC6-S32-R1-1/4 TC6-S32-R-1-1/4 1 piece

Catalog number: TC6-S32-R-1-1/4 Features: ●Coupling (thread) exclusively for Toyox hoses (excluding Toyo Silicone series). ●Prevents hoses from coming loose and fluid leaks, reducing production problems. ●Standardized work and maintenance-free operation lead to reduced maintenance. ●Compared to bamboo shoot couplings, the effective cross-sectional area is wider and pressure loss is reduced, which is expected to reduce power consumption. ●Compared to conventional couplings, the hose mouth is the same diameter as the hose, making it easier to insert the hose and reducing piping time. ●[Risk reduction] Prevents piping problems such as leaks and coming loose due to vibrations and earthquakes. ●[Reusable hose coupling] When reusing, simply replace the parts inside the coupling. Uses: ●For hose piping for water supply and drainage, oil, chemicals, air, etc. Specifications: ●Fluids used: air, water (industrial water), chemicals, solvents, paints, oil ●Compatible hose inner diameter (mm): 32 ●Compatible hose outer diameter (mm): 41 ●Thread dimensions: R1-1/4 ●Dimension L (mm): 86 ●Dimension Φd1 (mm): 27 ●Dimension F (mm): 81 ●Dimension HEX1 (mm): 46 ●Dimension HEX2 (mm): 6 ●Operating pressure and temperature range: Conforms to compatible hose standards Material/Finish: ●Nipple: SCS13 (equivalent to SUS304) ●Clamp: SCS14 (equivalent to SUS316) ●Rubber cap: NBR, Spacer: Polyacetal ●Bolt: SUSXM7 (equivalent to SUS304), Lubricant: NSF H1 registered grease Caution: ●This product is a hose fitting exclusively for Toyox hoses. If connected to hoses other than those of other manufacturers or compatible hoses, performance may not be fully demonstrated or maintained, so no guarantee is made. ●Do not use in places where vibration or impact occurs. There is a risk of damage to the fitting or the hose coming loose. ●Tighten the two bolts alternately and evenly until there is no gap. If there is a gap and you cannot tighten it, wait a while and then tighten the clamps again until the gap is gone. ●Although it depends on the conditions of use, replace with a new clamp set after about five removals. ●The material of the flow path (inner surface) of this product is SCS13 (equivalent to SUS304). Depending on the type of fluid, corrosion or fluid leakage may occur.
