Toyox Hose Fitting (Ferrule) Toyo Connector TC3-F Type Compatible Hose 15mm Fitting Standard 1S TC3-F15-1S TC3-F15-1S 1 pc

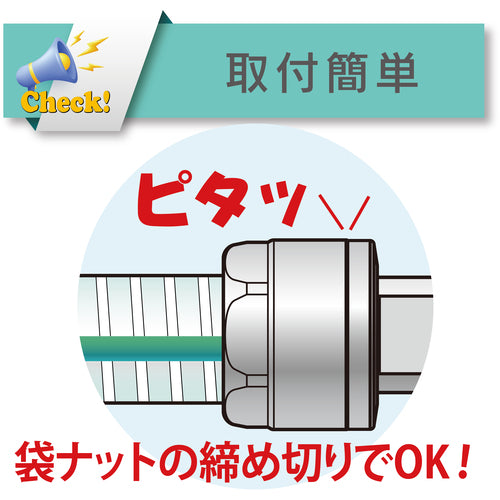

Catalog number: TC3-F15-1S Features: ●The special sleeve structure securely holds the hose in place, eliminating fluid leaks and hose dislodging. ●[Hose coupling that prevents leaks and dislodging] This is a hose coupling that prevents production problems such as fluid leaks and hose dislodging, allowing for stable production. ●[Hose coupling that prevents leaks and dislodging] This is a ferrule hose coupling that prevents production problems such as fluid leaks and hose dislodging, allowing for stable production. ●[Hose coupling that prevents liquid pooling] This hose coupling has a structure with few steps between the coupling and the hose, making it less likely to pool. Made of SUS (equivalent to SUS316L or SUS304), it is less likely to rust. ●[Easy installation] Compared to conventional couplings, the hose mouth is the same diameter as the hose, making it easier to insert the hose and reducing piping time. ●[Standardization of installation work] By simply tightening the nut (clamp) without any gaps, uniform installation work is possible. In addition, there is no need to tighten the hose band as with other hose bands. ●[Risk reduction] This prevents piping problems such as leaks and dislodging caused by vibrations and earthquakes. ●[Reusable hose fittings] When reusing, simply replace the parts inside the fitting. Uses: ● For hose piping of food, beverages, cosmetics, chemicals, etc. Specifications: ● Fluids used: air, water (industrial water), chemicals, solvents, paints, oil, beverages, drinking water, food ● Suitable hose inner diameter (mm): 15 ● Suitable hose outer diameter (mm): 22 ● Fitting standard: 1S ● Suitable hose inner diameter x outer diameter (mm): 15 x 22 ● Dimension L (mm): 58.5 ● Dimension Φd1 (mm): 13 ● Two-sided width (mm): 24 ● Dimension A (mm): 50.5 ● Dimension B (mm): 43.5 ● Dimension C (mm): 23 ● Dimension HEX (mm): 31 ● Operating pressure, operating temperature range: Conforms to compatible hose standards Materials/Finish: ● Nipple: Stainless steel SCS16 (equivalent to SUS316L) ● Cap nut: Stainless steel SCS13 (equivalent to SUS304) ● Gasket: Silicone rubber ● Sleeve: Polyacetal Caution: ●This product is a hose fitting exclusively for Toyox hoses. If it is connected to a hose of another manufacturer or a hose other than the compatible hose, there is a possibility that the performance may not be fully demonstrated or maintained, so no guarantee is made. ●When tightening the cap nut, check that the resin ring is not tilted, and then secure it to the nipple side until there is no gap. If it is used with a gap, problems such as the hose coming off or fluid leaking may occur. ●Do not use the hose in an extremely bent state near the fitting. Use it with a bending radius larger than the minimum bending radius of the hose. ●This fitting is not for daily disassembly and cleaning. When reusing this product, replace the TC3-F type packing sleeve with a new one. Also, be sure to use a new hose. ●The material of the flow path (inner surface) of this product is SCS16 (equivalent to SUS316L). Depending on the type of fluid, corrosion or fluid leakage may occur.
