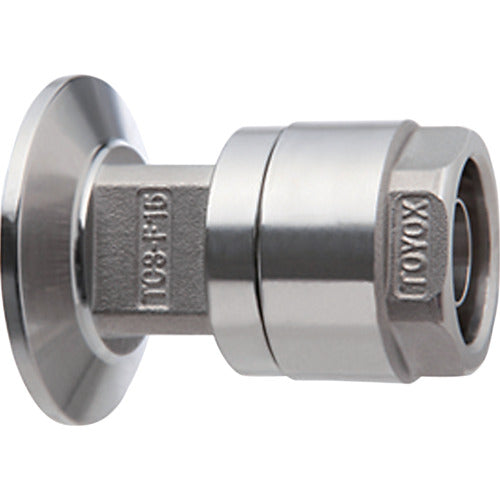

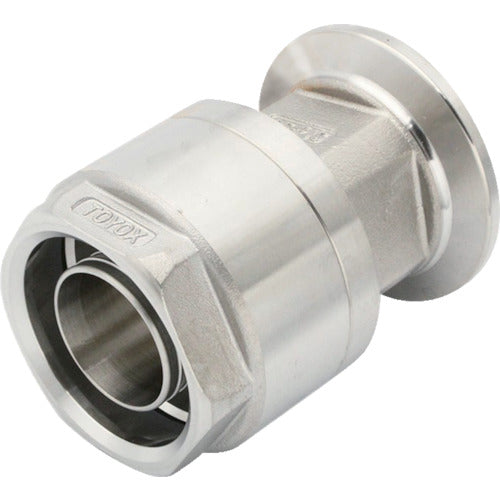

Toyox Hose Fitting (Ferrule) Toyo Connector TC3-F Type Compatible Hose 25mm Fitting Standard 1S TC3-F25-1S TC3-F25-1S 1 pc

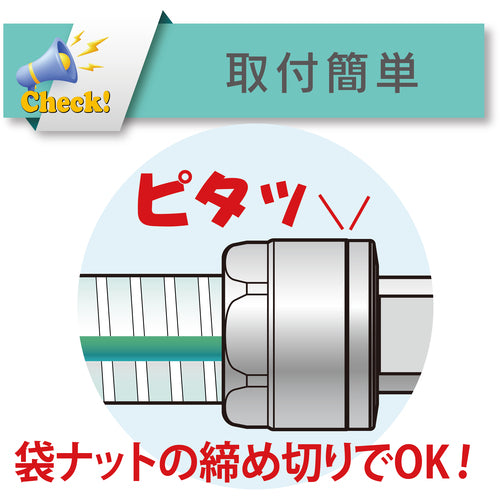

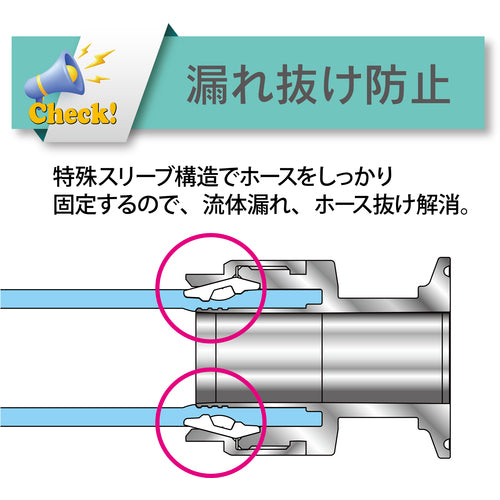

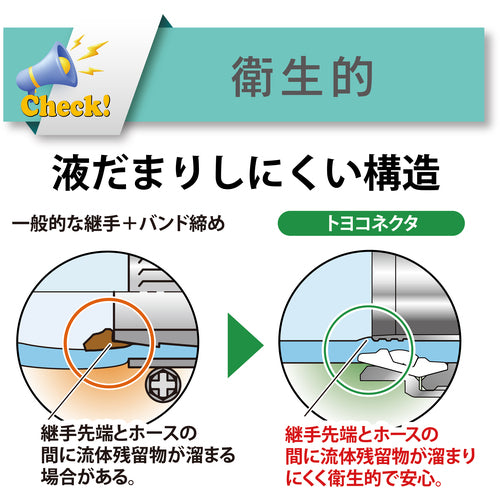

Catalog number: TC3-F25-1S Features: ● Dedicated fitting for Toyox hoses (excluding Toyo Silicone series). ● [Leak-proof hose fitting] A hose fitting that prevents production problems such as fluid leakage and hose coming off, allowing for stable production. ● [Leak-proof hose fitting] A ferrule hose fitting that prevents production problems such as fluid leakage and hose coming off, allowing for stable production. ● [Hose fitting to prevent liquid pooling] A hose fitting with a structure that has few steps between the fitting and the hose, making it less likely to pool. Made of SUS (equivalent to SUS316L or SUS304), it is resistant to rust. ● The special sleeve structure firmly secures the hose, eliminating fluid leakage and hose coming off. ● [Standardization of installation work] Uniform installation work is possible by simply tightening the nut (clamp) without any gaps. Also, there is no need to tighten it again like with hose bands. ● [Risk reduction] Prevents piping problems such as leakage and coming off due to vibration and earthquakes. ●[Reusable hose fittings] When reusing, simply replace the parts inside the fitting. Uses: ● For hose piping of food, beverages, cosmetics, chemicals, etc. Specifications: ● Fluids used: air, water (industrial water), chemicals, solvents, paints, oil, beverages, drinking water, food ● Suitable hose inner diameter (mm): 25 ● Suitable hose outer diameter (mm): 33 ● Fitting standard: 1S ● Suitable hose inner diameter x outer diameter (mm): 25 x 33 ● Dimension L (mm): 66 ● Dimension Φd1 (mm): 22.5 ● Two-sided width (mm): 30 ● Dimension A (mm): 50.5 ● Dimension B (mm): 43.5 ● Dimension C (mm): 23 ● Dimension HEX (mm): 42 ● Operating pressure, operating temperature range: Conforms to compatible hose standards Materials/Finish: ● Nipple: SCS16 (equivalent to SUS316L) ● Cap nut: SCS13 (equivalent to SUS304) ● Gasket: Silicone rubber ● Sleeve: Polyacetal Caution: ●This product is a hose fitting exclusively for Toyox hoses. If it is connected to a hose of another manufacturer or a hose other than the compatible hose, there is a possibility that the performance may not be fully demonstrated or maintained, so no guarantee is made. ●When tightening the cap nut, check that the resin ring is not tilted, and then secure it to the nipple side until there is no gap. If it is used with a gap, problems such as the hose coming off or fluid leaking may occur. ●Do not use the hose in an extremely bent state near the fitting. Use it with a bending radius larger than the minimum bending radius of the hose. ●This fitting is not for daily disassembly and cleaning. When reusing this product, replace the TC3-F type packing sleeve with a new one. Also, be sure to use a new hose. ●The material of the flow path (inner surface) of this product is SCS16 (equivalent to SUS316L). Depending on the type of fluid, corrosion or fluid leakage may occur.
