Toyox Hose Fitting (Ferrule) Toyo Connector TC3-FS Type Suitable for 19mm Hose Fitting Standard 1S TC3-FS19-1S TC3-FS19-1S 1 Piece

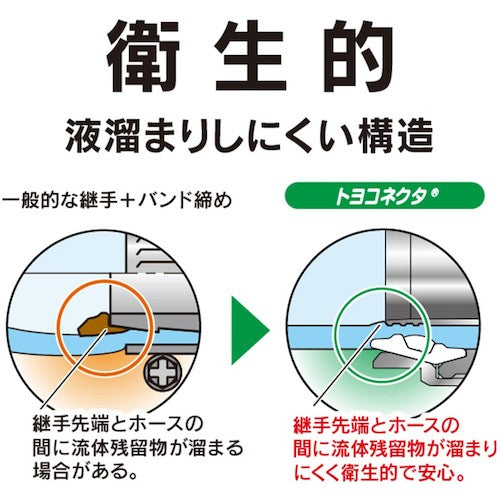

Catalog number: TC3-FS19-1S Features: ●Toyox Toyo Silicone series dedicated fitting (ferrule). ●[Leak and pull-out prevention hose fitting] A hose fitting that prevents production troubles such as fluid leakage and hose pull-out, enabling stable production. ●[Leak and pull-out prevention hose fitting] A ferrule hose fitting that prevents production troubles such as fluid leakage and hose pull-out, enabling stable production. ●[Hose fitting to prevent liquid pooling] A hose fitting with a structure that has few steps between the fitting and the hose, making it less likely to pool. Made of SUS (equivalent to SUS316L or SUS304) and rust-resistant. ●The special sleeve structure firmly fixes the hose, eliminating fluid leakage and hose pull-out. ●[Risk reduction] Prevents piping troubles such as leakage and pull-out due to vibration and earthquakes. ●[Reusable hose fitting] When reusing, simply replace the parts inside the fitting. Uses: ●For hose piping for food, beverages, cosmetics, chemicals, etc. Specifications: ●Fluids used: air, water (industrial water), chemicals, oil, beverages, drinking water, food ●Compatible hose inner diameter (mm): 19 ●Compatible hose outer diameter (mm): 28 ●Fitting standard: 1S ●Compatible hose inner diameter x outer diameter (mm): 19 x 28 ●Dimension L (mm): 61 ●Dimension Φd1 (mm): 16.9 ●Face width (mm): 27 ●Dimension A (mm): 50.5 ●Dimension B (mm): 43.5 ●Dimension C (mm): 23 ●Dimension HEX (mm): 35.8 ●Operating temperature range: Conforms to compatible hose standards Material/Finish: ●Nipple: Stainless steel SCS16 (equivalent to SUS316L) ●Cap nut: Stainless steel SCS13 (equivalent to SUS304) ●Sleeve: Polyvinylidene fluoride (PVDF) Caution: ●This product is a hose fitting exclusively for Toyox hoses. If connected to a hose made by another company or a hose other than the compatible hose, the performance may not be fully demonstrated or maintained, so no guarantee is made. ●Do not assemble or disassemble the fittings while fluid is passing through the hose. Fluid leakage or hose disconnection may occur. ●Do not use the hose in an extreme bent state near the fitting. Use with a bending radius larger than the minimum bending radius of the hose. ●This fitting is not for daily disassembly and cleaning. When reusing this product, replace the sleeve with a new one. Also, be sure to use a new hose. ●The material of the flow path (inner surface) of this product is SCS16 (equivalent to SUS316L). Depending on the type of fluid, corrosion or fluid leakage may occur.
