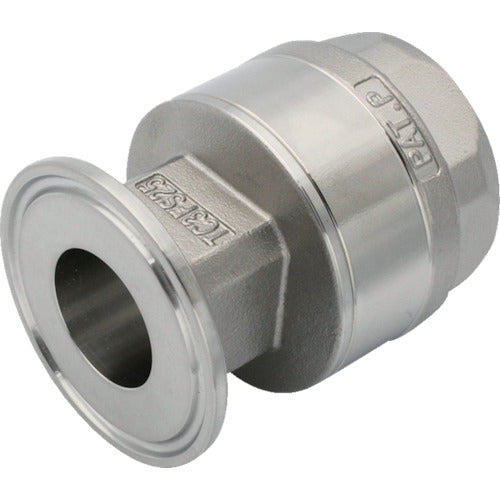

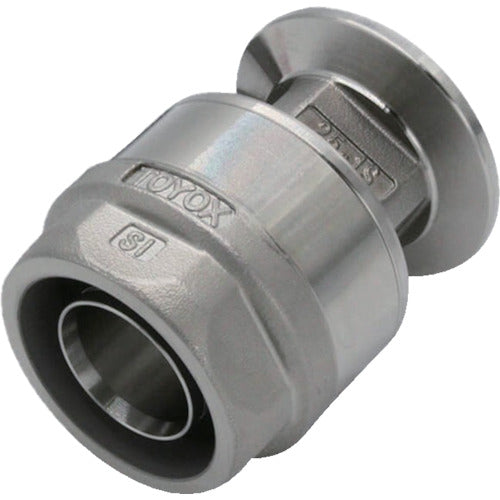

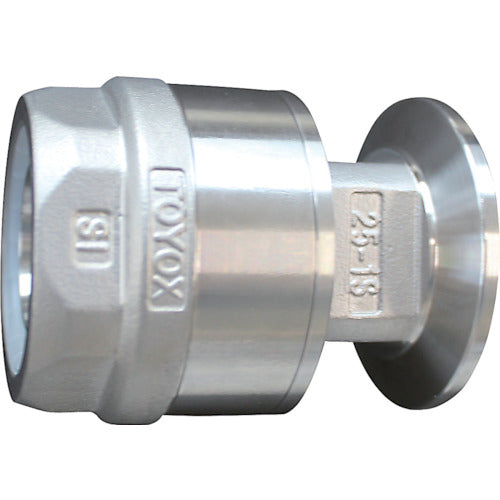

Toyox Hose Fitting (Ferrule) Toyo Connector TC3-FS Type Suitable for hose 25mm Fitting Standard 1STC3-FS25-1S TC3-FS25-1S 1 pc

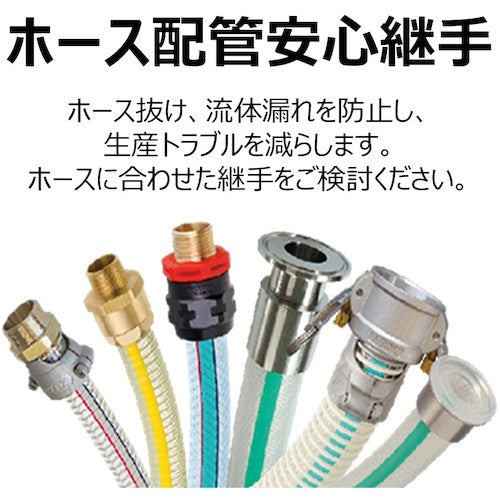

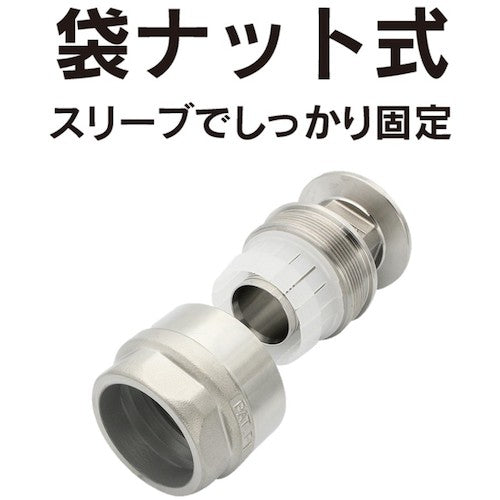

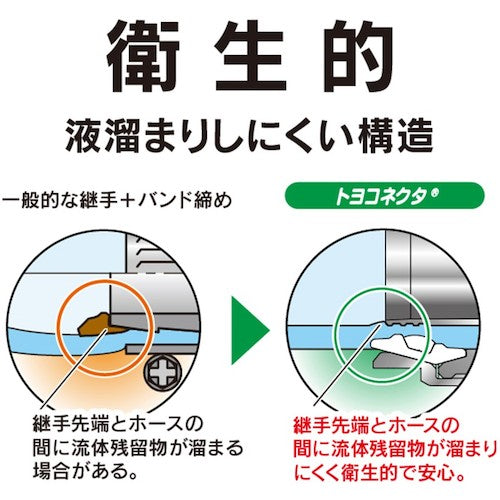

Catalog number: TC3-FS25-1S Features: ●Toyox Toyo Silicone series dedicated fitting (ferrule). ●[Leak and pull-out prevention hose fitting] A hose fitting that prevents production troubles such as fluid leakage and hose pull-out, enabling stable production. ●[Leak and pull-out prevention hose fitting] A ferrule hose fitting that prevents production troubles such as fluid leakage and hose pull-out, enabling stable production. ●[Hose fitting to prevent liquid pooling] A hose fitting with a structure that has few steps between the fitting and the hose, which makes it difficult for liquid to pool. Made of SUS (equivalent to SUS316L, SUS304), it is resistant to rust. ●The special sleeve structure firmly fixes the hose, eliminating fluid leakage and hose pull-out. ●[Risk reduction] Prevents piping troubles such as leakage and pull-out due to vibration and earthquakes. ●[Reusable hose fitting] When reusing, simply replace the parts inside the fitting. Uses: ● For hose piping of food, beverages, cosmetics, chemicals, etc. Specifications: ● Fluids used: air, water (industrial water), chemicals, oil, beverages, drinking water, food ● Suitable hose inner diameter (mm): 25.4 ● Suitable hose outer diameter (mm): 35.5 ● Fitting standard: 1S ● Suitable hose inner diameter x outer diameter (mm): 25.4 x 35.5 ● Dimension L (mm): 64.5 ● Dimension Φd1 (mm): 22.8 ● Two-sided width (mm): 27 ● Dimension A (mm): 50.5 ● Dimension B (mm): 43.5 ● Dimension C (mm): 23 ● Dimension HEX (mm): 43.8 ● Operating temperature range: Conforms to suitable hose standards Materials/Finish: ● Nipple: Stainless steel SCS16 (equivalent to SUS316L) ● Cap nut: Stainless steel SCS13 (equivalent to SUS304) ● Sleeve: Polyvinylidene fluoride (PVDF) Caution: ●This product is a hose fitting exclusively for Toyox hoses. If it is connected to a hose made by another company or a hose other than the compatible hose, the performance may not be fully demonstrated or maintained, so no guarantee is made. ●Do not assemble or disassemble the fitting while fluid is passing through the hose. Fluid leakage or hose coming loose may occur. ●Do not use the hose in an extreme bent state near the fitting. Use with a bending radius larger than the minimum bending radius of the hose. ●This fitting is not for daily disassembly and cleaning. When reusing this product, replace the sleeve with a new one. Also, always use a new hose. ●The material of the flow path (inner surface) of this product is SCS16 (equivalent to SUS316L). Depending on the type of fluid, corrosion or fluid leakage may occur.
