Toyox Hose Fitting (Ferrule) Toyo Connector TC3-FS Type Suitable for 9mm Hose Fitting Standard 8A TC3-FS9-8A TC3-FS9-8A 1 pc

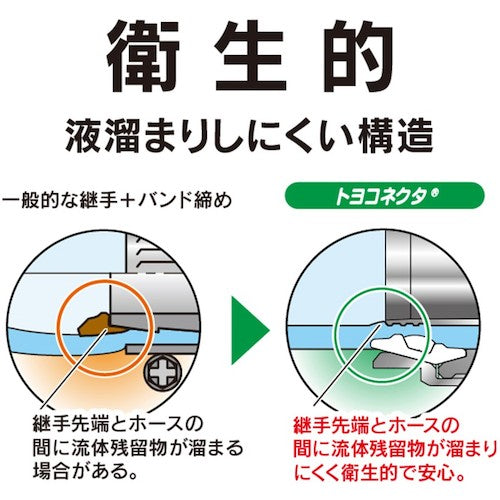

Catalog number: TC3-FS9-8A Features: ●Toyox Toyo Silicone series dedicated fitting (ferrule). ●[Leak and pull-out prevention hose fitting] A hose fitting that prevents production troubles such as fluid leakage and hose pull-out, enabling stable production. ●[Leak and pull-out prevention hose fitting] A ferrule hose fitting that prevents production troubles such as fluid leakage and hose pull-out, enabling stable production. ●[Hose fitting to prevent liquid pooling] A hose fitting with a structure that has few steps between the fitting and the hose, making it less likely to pool. Made of SUS (equivalent to SUS316L, SUS304), it is resistant to rust. ●The special sleeve structure firmly fixes the hose, eliminating fluid leakage and hose pull-out. ●[Risk reduction] Prevents piping troubles such as leakage and pull-out due to vibration and earthquakes. ●[Reusable hose fitting] When reusing, simply replace the parts inside the fitting. Uses: ● For hose piping of food, beverages, cosmetics, chemicals, etc. Specifications: ● Fluids used: air, water (industrial water), chemicals, oil, beverages, drinking water, food ● Suitable hose inner diameter (mm): 9.5 ● Suitable hose outer diameter (mm): 16 ● Fitting standard: 8A ● Suitable hose inner diameter x outer diameter (mm): 9.5 x 16 ● Dimension L (mm): 55.5 ● Dimension Φd1 (mm): 6.9 ● Two-sided width (mm): 21 ● Dimension A (mm): 34 ● Dimension B (mm): 27.5 ● Dimension C (mm): 10.5 ● Dimension HEX (mm): 24.2 ● Operating temperature range: Conforms to applicable hose standards ● Operating temperature range: -30 to 140°C Materials/Finish: ● Nipple: Stainless steel SCS16 (equivalent to SUS316L) ● Cap nut: Stainless steel SCS13 (equivalent to SUS304) ● Sleeve: Polyvinylidene fluoride (PVDF) Caution: ●This product is a hose fitting exclusively for Toyox hoses. If it is connected to a hose made by another company or a hose other than the compatible hose, the performance may not be fully demonstrated or maintained, so no guarantee is made. ●Do not assemble or disassemble the fitting while fluid is passing through the hose. Fluid leakage or hose coming loose may occur. ●Do not use the hose in an extreme bent state near the fitting. Use with a bending radius larger than the minimum bending radius of the hose. ●This fitting is not for daily disassembly and cleaning. When reusing this product, replace the sleeve with a new one. Also, always use a new hose. ●The material of the flow path (inner surface) of this product is SCS16 (equivalent to SUS316L). Depending on the type of fluid, corrosion or fluid leakage may occur.
