Toyox Hose Fitting (Ferrule) Toyo Connector TC6-F Type Compatible Hose 32mm Fitting Standard 1.5S TC6-F32-1.5S TC6-F32-1.5S 1 pc

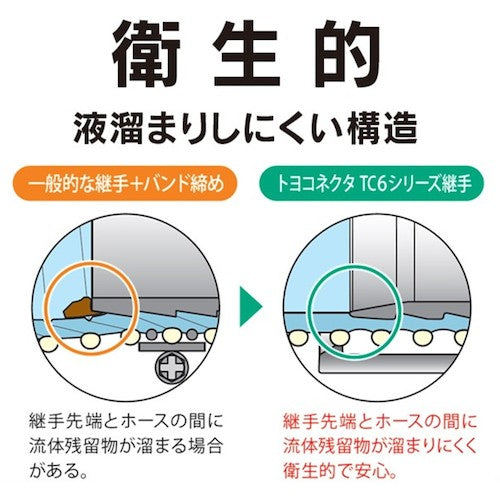

Catalog number: TC6-F32-1.5S Features: ●Couplings (threads) exclusively for Toyox hoses (excluding Toyo Silicone series). ●[Hose couplings to prevent leaks and disconnections] Hose couplings that prevent production problems such as fluid leaks and hose disconnections, enabling stable production. ●[Hose couplings to prevent leaks and disconnections] Ferrule hose couplings that prevent production problems such as fluid leaks and hose disconnections, enabling stable production. ●[Hose couplings to prevent liquid pooling] Hose couplings with a structure that has few steps between the coupling and the hose, making them less likely to pool. Made of SUS (equivalent to SUS316L or SUS304), they are resistant to rust. ●The special sleeve structure firmly secures the hose, eliminating fluid leaks and hose disconnections. ●[Risk reduction] Prevents piping problems such as leaks and disconnections due to vibrations and earthquakes. ●[Reusable hose couplings] Simply replace the parts inside the coupling when reusing. Uses: ● For hose piping of food, beverages, cosmetics, chemicals, etc. Specifications: ● Fluids used: air, water (industrial water), chemicals, solvents, paints, oil, beverages, drinking water, food ● Suitable hose inner diameter (mm): 32 ● Suitable hose outer diameter (mm): 41 ● Fitting standard: 1.5S ● Suitable hose inner diameter x outer diameter (mm): 32 x 41 ● Dimension L (mm): 70.5 ● Dimension Φd1 (mm): 25 ● Dimension F (mm): 81 ● Dimension A (mm): 50.5 ● Dimension B (mm): 43.5 ● Dimension C (mm): 35.7 ● Dimension HEX (mm): 6 ● Operating pressure, operating temperature range: Conforms to compatible hose standards Material/Finish: ●Nipple: SCS16 (equivalent to SUS316L) ●Clamp: SCS14 (equivalent to SUS316) ●Rubber cap: Ethylene propylene diene rubber (EPDM) ●Spacer: Polyacetal ●Bolt: SUSXM7 (equivalent to SUS304) Caution: ●This product is a hose fitting exclusively for Toyox hoses. If it is connected to a hose of another company or a hose other than the compatible hose, there is a possibility that the performance may not be fully demonstrated or maintained, so no guarantee is made. ●Do not use the hose in an extremely bent state near the fitting. Use with a bending radius larger than the minimum bending radius of the hose. ●Do not use in a place where vibration or impact occurs. There is a risk of the fitting being damaged or the hose coming loose. ●Tighten the two bolts alternately and evenly until there is no gap. If there is a gap and you cannot tighten it, be sure to wait a while and then tighten it further until the clamp gap is gone. ●The material of the flow passage (inner surface) of this product is SCS16 (equivalent to SUS316L). Depending on the type of fluid, corrosion or fluid leakage may occur.
