Toyox Hose Fitting (Ferrule) Toyo Connector TC6-F Type Compatible Hose 38mm Fitting Standard 1.5S TC6-F38-1.5S TC6-F38-1.5S 1 pc

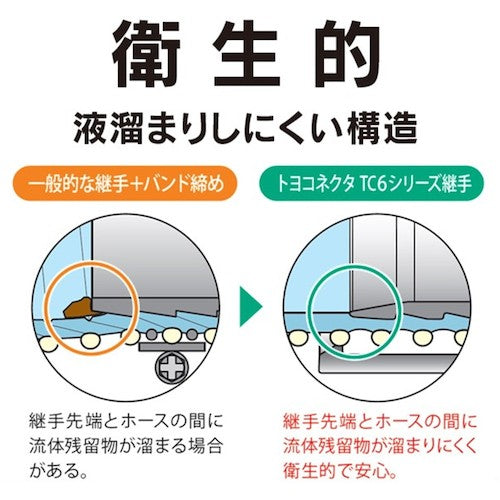

Catalog number: TC6-F38-1.5S Features: ●The special sleeve structure securely holds the hose in place, eliminating fluid leaks and hose dislodging. ●[Hose coupling that prevents leaks and dislodging] This is a hose coupling that prevents production problems such as fluid leaks and hose dislodging, allowing for stable production. ●[Hose coupling that prevents leaks and dislodging] This is a ferrule hose coupling that prevents production problems such as fluid leaks and hose dislodging, allowing for stable production. ●[Hose coupling that prevents liquid pooling] This hose coupling has a structure with few steps between the coupling and the hose, making it less likely to pool. Made of SUS (equivalent to SUS316L or SUS304) and is resistant to rust. ●[Standardization of installation work] This hose coupling allows for uniform installation work by simply tightening the bag nut to the end. In addition, there is no need for additional tightening work like with hose bands. ●[Risk reduction] This prevents piping problems such as leaks and dislodging due to vibration and earthquakes. ●[Reusable hose coupling] When reusing, simply replace the parts inside the coupling to reuse it. Uses: ● For hose piping of food, beverages, cosmetics, chemicals, etc. Specifications: ● Fluids used: air, water (industrial water), chemicals, solvents, paints, oil, beverages, drinking water, food ● Suitable hose inner diameter (mm): 38 ● Suitable hose outer diameter (mm): 48 ● Fitting standard: 1.5S ● Suitable hose inner diameter x outer diameter (mm): 38 x 48 ● Dimension L (mm): 76.5 ● Dimension Φd1 (mm): 31 ● Dimension F (mm): 88 ● Dimension A (mm): 50.5 ● Dimension B (mm): 43.5 ● Dimension C (mm): 35.7 ● Dimension HEX (mm): 6 ● Operating pressure, operating temperature range: Conforms to compatible hose standards Material/Finish: ●Nipple: Stainless steel SCS16 (equivalent to SUS316L) ●Clamp: Stainless steel SCS14 (equivalent to SUS316) ●Rubber cap: Ethylene propylene diene rubber (EPDM) ●Spacer: Polyacetal ●Bolt: Stainless steel SUSXM7 (equivalent to SUS304) Caution: ●This product is a hose fitting exclusively for Toyox hoses. If it is connected to a hose of another company or a hose other than the compatible hose, there is a possibility that the performance may not be fully demonstrated or maintained, so no guarantee is made. ●Do not use the hose in an extremely bent state near the fitting. Use with a bending radius larger than the minimum bending radius of the hose. ●Do not use in a place where vibration or impact occurs. There is a risk of the fitting being damaged or the hose coming off. ●Tighten the two bolts alternately and evenly until there is no gap. If there is a gap and you cannot tighten it, be sure to wait a while and then tighten it further until the clamp gap is gone. ●The material of the flow passage (inner surface) of this product is SCS16 (equivalent to SUS316L). Depending on the type of fluid, corrosion or fluid leakage may occur.
