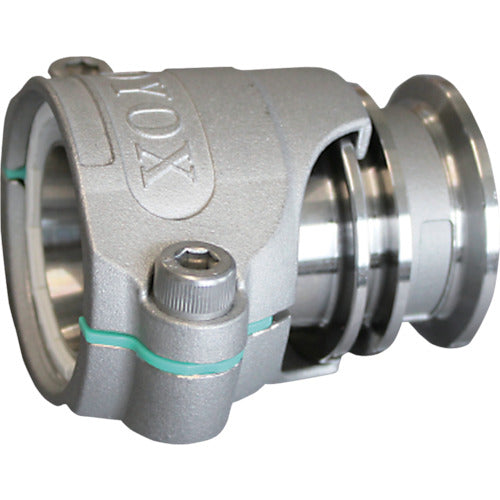

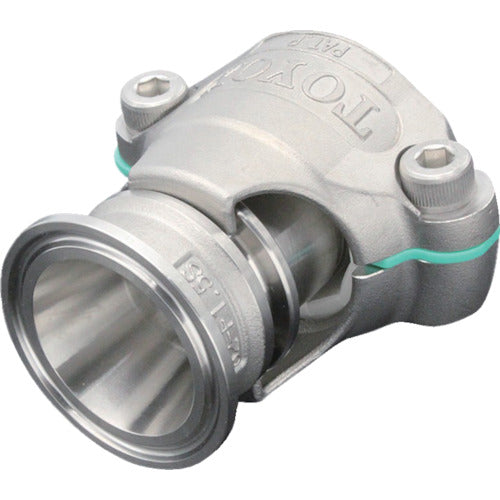

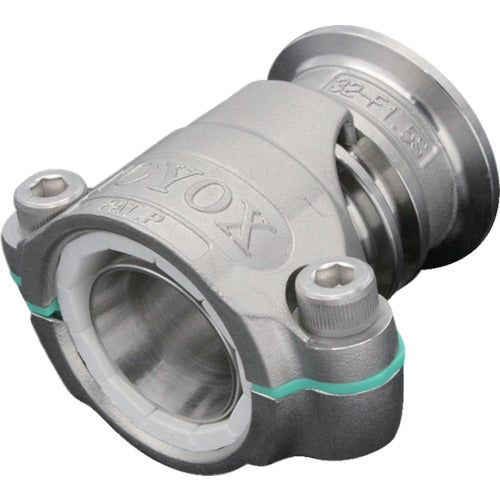

Toyox Hose Fitting (Ferrule) Toyo Connector TC6-F Type Suitable for 50mm Hose Fitting Standard 2S TC6-F50-2S TC6-F50-2S 1 pc

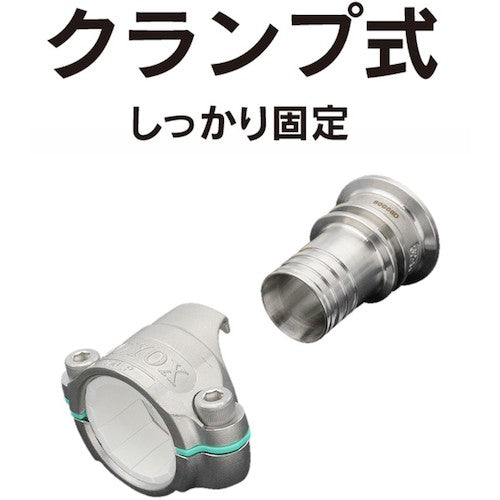

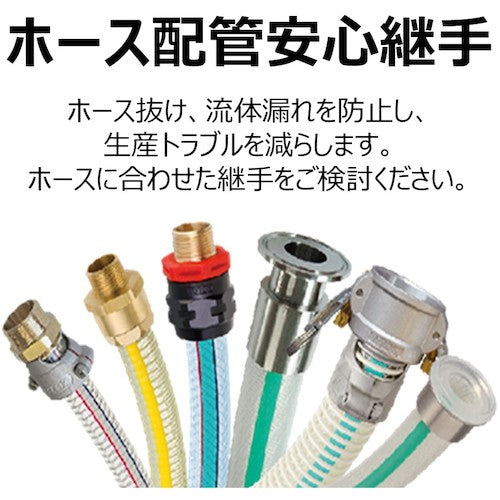

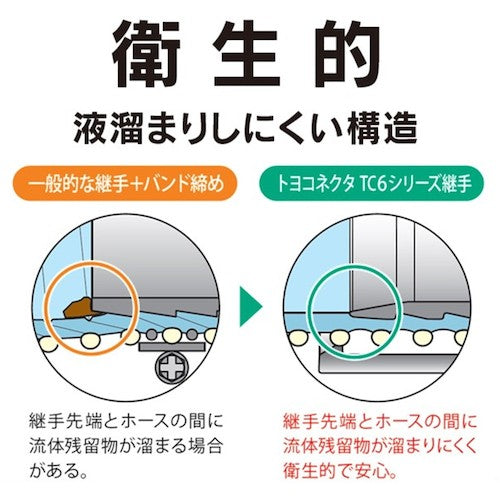

Catalog number: TC6-F50-2S Features: ●Couplings (threads) exclusively for Toyox hoses (excluding Toyo Silicone series). ●[Leak- and pull-out prevention hose couplings] These hose couplings prevent production problems such as fluid leaks and hose pull-out, enabling stable production. ●[Leak- and pull-out prevention hose couplings] These ferrule hose couplings prevent production problems such as fluid leaks and hose pull-out, enabling stable production. ●[Hose couplings to prevent liquid pooling] These hose couplings have a structure with few steps between the coupling and the hose, making them less likely to pool. Made of SUS (equivalent to SUS316L or SUS304), they are resistant to rust. ●The special sleeve structure firmly secures the hose, eliminating fluid leaks and hose pull-out. ●[Risk reduction] These prevent piping problems such as leaks and pull-outs caused by vibrations and earthquakes. ●[Reusable hose couplings] When reusing, simply replace the parts inside the coupling. Uses: ● For hose piping of food, beverages, cosmetics, chemicals, etc. Specifications: ● Fluids used: air, water (industrial water), chemicals, solvents, paints, oil, beverages, drinking water, food ● Suitable hose inner diameter (mm): 50 ● Suitable hose outer diameter (mm): 62 ● Fitting standard: 2S ● Suitable hose inner diameter x outer diameter (mm): 50 x 62 ● Dimension L (mm): 88.5 ● Dimension Φd1 (mm): 42 ● Dimension F (mm): 106 ● Dimension A (mm): 64 ● Dimension B (mm): 56.5 ● Dimension C (mm): 47.8 ● Dimension HEX (mm): 8 ● Operating pressure, operating temperature range: Conforms to compatible hose standards Material/Finish: ●Nipple: Stainless steel SCS16 (equivalent to SUS316L) ●Clamp: Stainless steel SCS14 (equivalent to SUS316) ●Rubber cap: Ethylene propylene diene rubber (EPDM) ●Spacer: Polyacetal ●Bolt: Stainless steel SUSXM7 (equivalent to SUS304) Caution: ●This product is a hose fitting exclusively for Toyox hoses. If it is connected to a hose of another company or a hose other than the compatible hose, there is a possibility that the performance may not be fully demonstrated or maintained, so no guarantee is made. ●Do not use the hose in an extremely bent state near the fitting. Use with a bending radius larger than the minimum bending radius of the hose. ●Do not use in a place where vibration or impact occurs. There is a risk of the fitting being damaged or the hose coming off. ●Tighten the two bolts alternately and evenly until there is no gap. If there is a gap and you cannot tighten it, be sure to wait a while and then tighten it further until the clamp gap is gone. ●The material of the flow passage (inner surface) of this product is SCS16 (equivalent to SUS316L). Depending on the type of fluid, corrosion or fluid leakage may occur.
