Toyox Hose Fitting (Ferrule) Toyo Connector TC6-FS Type Suitable for hose 32mm Fitting Standard 1.5S TC6-FS32-1.5S TC6-FS32-1.5S 1 pc

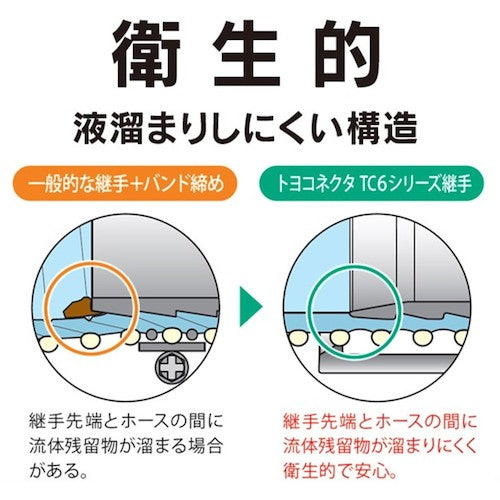

Catalog number: TC6-FS32-1.5S Features: ●Toyox Toyo Silicone series dedicated fitting (ferrule). ●[Leak and pull-out prevention hose fitting] A fitting for ferrule hose that prevents production troubles such as fluid leakage and hose pull-out, enabling stable production. ●[Hose fitting to prevent liquid pooling] A hose fitting with a structure with few steps between the fitting and the hose that is less likely to pool. Made of SUS (equivalent to SUS316L and SUS304) and is rust-resistant. ●[Standardization of installation work] Uniform installation work is possible by simply tightening the dedicated clamp without any gaps. In addition, there is no need to tighten it again like with hose bands. ●[Risk reduction] Prevents piping troubles such as leaks and pull-outs due to vibration and earthquakes. ●[Reusable hose fitting] When reusing, it can be reused by simply replacing the parts inside the fitting. Uses: ● For hose piping of food, beverages, cosmetics, chemicals, etc. Specifications: ● Fluids used: air, water (industrial water), chemicals, solvents, paints, oil, beverages, drinking water, food ● Suitable hose inner diameter (mm): 32 ● Suitable hose outer diameter (mm): 43.5 ● Fitting standard: 1.5S ● Suitable hose inner diameter x outer diameter (mm): 32 x 43.5 ● Dimension L (mm): 76 ● Dimension Φd (mm): 26 ● Dimension F (mm): 86 ● Dimension A (mm): 50.5 ● Dimension B (mm): 43.5 ● Dimension C (mm): 35.7 ● Dimension HEX (mm): 6 ● Fitting for pressure-resistant hose ● Operating temperature range: -30 to 140°C Material/Finish: ●Nipple: SCS16 (equivalent to SUS316L) ●Clamp: SCS14 (equivalent to SUS316L) ●Sleeve/Spacer: Polyvinylidene fluoride (PVDF) ●Bolt: Stainless steel SUSXM7 (equivalent to SUS304) Caution: ●This product is a hose fitting exclusively for Toyox hoses. If it is connected to a hose other than that of another company or a compatible hose, there is a possibility that the performance may not be fully demonstrated or maintained, so no guarantee is made. ●Do not use the hose in an extremely bent state near the fitting. Use with a bending radius larger than the minimum bending radius of the hose. ●Do not use in a place where vibration or impact occurs. There is a risk of the fitting being damaged or the hose coming loose. ●Tighten the two bolts alternately and evenly until there is no gap. If there is a gap and you cannot tighten it, wait a while and then tighten the clamp until the gap is gone. ●The material of the flow passage (inner surface) of this product is SCS16 (equivalent to SUS316L). Depending on the type of fluid, corrosion or fluid leakage may occur.
