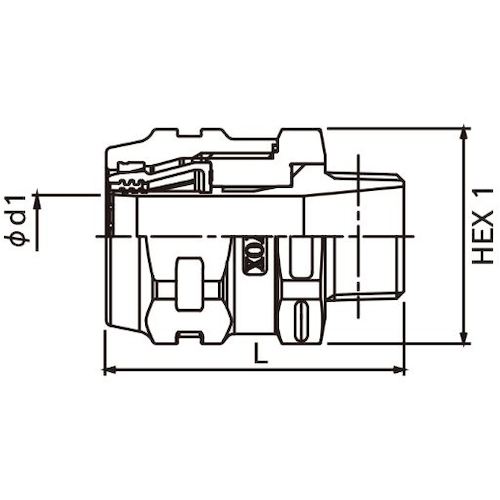

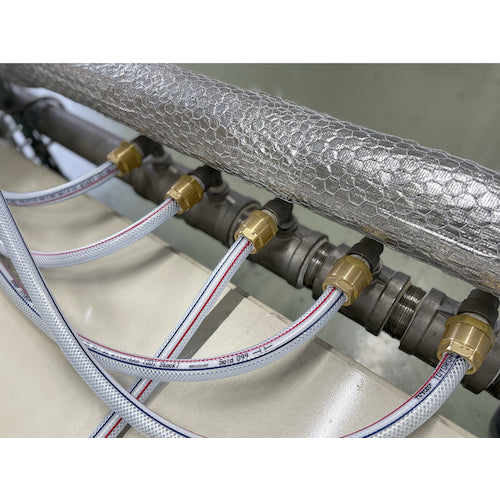

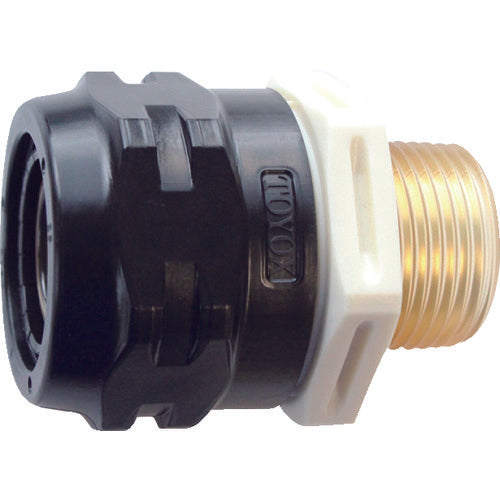

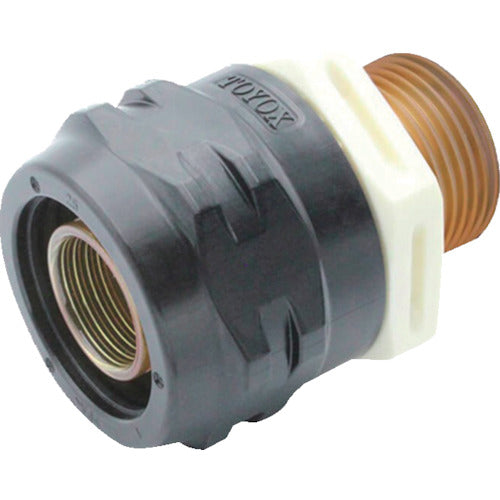

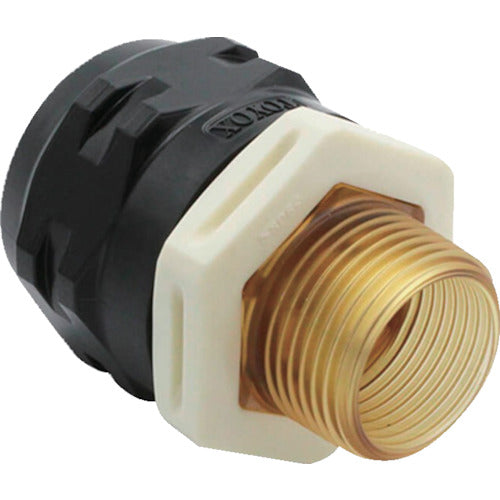

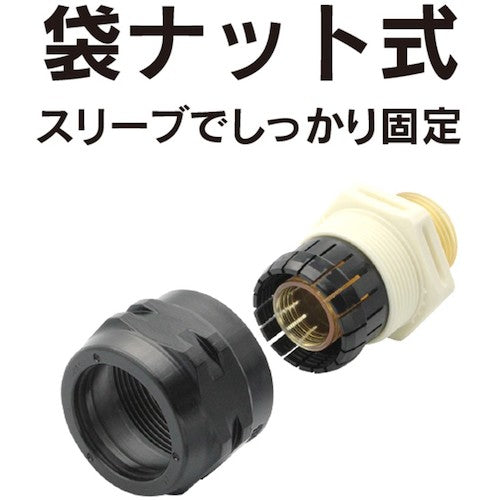

Catalogue number: TC3-PC15-R1/2 Features: * Fittings (threads) exclusively for Toyox hoses (excluding the Toyo Silicone series). * Excellent chemical resistance (acids, alkalis). * Low elution of metal ions. * No hose slippage or leaks, reducing production issues. * Simple installation by simply tightening allows for standardized work and maintenance-free operation. * Lightweight and easy to insert the hose, reducing piping time. * * Fittings for indoor use only. Uses: ● For hose piping of water supply and drainage, oil, chemicals, air, etc. Specifications: ● Fluids used: Air, water (industrial water), chemicals, oil ● Compatible hose inner diameter (mm): 15 ● Compatible hose outer diameter (mm): 22 ● Thread dimensions: R1/2 ● Dimension L (mm): 58 ● Dimension Φd1 (mm): 11 ● Dimension HEX1 (mm): 36 ● Operating pressure and operating temperature range: Conforms to compatible hose standards ● For indoor use only ● No organic solvents ● Cannot be reused Materials/Finish: ● Nipple: Polyphenylene sulfide (PPSU) ● Cap nut: Nylon ● Thread: Syndiotactic polystyrene (SPS) ● Sleeve: Polypropylene Caution: ● This product is a hose fitting exclusively for Toyox hoses. If it is connected to a hose of another company or a hose other than the compatible hose, it may not be possible to fully demonstrate or maintain its performance, so no guarantee is made. Installation should be performed at 10°C or higher. Installation at temperatures below 10°C may cause damage due to hardening of the resin. ●Do not use the hose with excessive bends near the coupling. Use with a bending radius larger than the hose's minimum bending radius. ●Tighten the cap nut until there are no gaps. Using the hose with gaps can cause problems such as fluid leakage or the hose coming loose. ●This product is for indoor use only. Do not use outdoors. In addition, this product is made of resin and cannot be reused. ●Please check the material of the flow path (inner surface) of this product. Deterioration or fluid leakage may occur depending on the type of fluid.
