Toyox Hose Fitting (Brass) Toyo Connector TC3-B Type Compatible with 19mm Hose Fitting Standard R1/2 TC3-B19-R1/2 TC3-B19-R1/2 1 pc

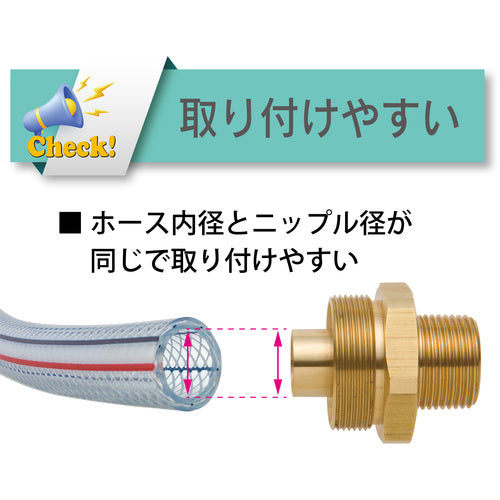

Catalog number: TC3-B19-R1/2 Features: ●Coupling (male thread) exclusively for Toyox hoses (excluding silicone hoses). ●[Leak and pull-out prevention hose coupling] This hose coupling prevents production problems such as fluid leakage and hose pull-out, enabling stable production. ●[Standardization of installation work] This hose coupling allows uniform installation work by simply tightening the cap nut all the way. In addition, there is no need for additional tightening work like with hose bands. ●[Energy saving] Compared to general bamboo shoot couplings, the effective cross-sectional area is wider and pressure loss can be reduced, so you can expect a reduction in power consumption. ●[Easy installation] Compared to conventional couplings, the hose mouth is the same diameter as the hose, making it easier to insert the hose and reducing piping time. ●[Risk reduction] Prevents piping problems such as leaks and pull-outs due to vibration and earthquakes. ●When reusing, simply replace the parts inside the coupling. Uses: ● For hose piping for water supply and drainage, oil, chemicals, air, etc. Specifications: ● Fluids used: air, water (industrial water), oil ● Compatible hose inner diameter (mm): 19 ● Compatible hose outer diameter (mm): 26 ● Thread dimensions: R1/2 ● Dimension L (mm): 52 ● Dimension Φd1 (mm): 15 ● Dimension HEX1 (mm): 41 ● Dimension HEX2 (mm): 36 ● Pressure-resistant hose fitting ● Operating pressure and temperature range: Conforms to compatible hose standards Material/Finish: ● Nipple, cap nut: brass (cadmium-free compatible) ● Rubber packing: nitrile rubber (NBR) ● Sleeve: polyacetal Caution: ● This product is a hose fitting exclusively for Toyox hoses. If it is connected to a hose of another company or a hose other than the compatible hose, there is a possibility that the performance may not be fully demonstrated or maintained, so no guarantee is made. ● Do not use the hose in an extremely bent state near the fitting. Use with a bending radius larger than the minimum bending radius of the hose. ●Do not use in locations subject to vibration or impact. This may damage the fitting or cause the hose to come loose. ●When reusing this product, be sure to replace the sleeve with gasket. Also, be sure to use a new hose. ●The flow path (inner surface) of this product is made of brass. Depending on the type of fluid, corrosion or fluid leakage may occur.
