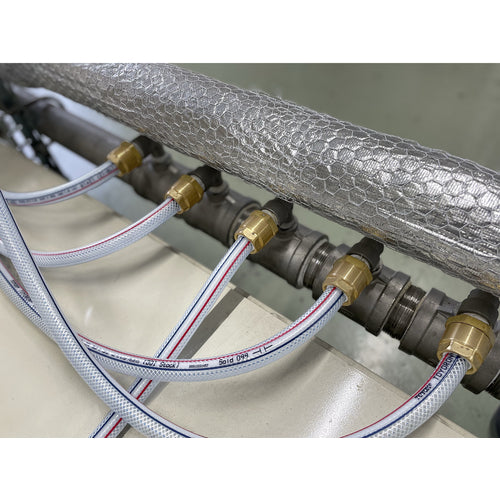

Toyox hose fitting (made of brass) Toyo Connector TC3-B type Suitable for hose 9 mm Fitting standard R1/4 TC3-B9-R1/4 TC3-B9-R1/4 1 piece

Catalog number: TC3-B9-R1/4 Features: ● A fitting (male thread) exclusively for Toyox hoses (excluding silicone hoses). ● [Leak and pull-out prevention hose fitting] A hose fitting that prevents production problems such as fluid leakage and hose pull-out, enabling stable production. ● [Standardization of installation work] A hose fitting that allows uniform installation work by simply tightening the cap nut to the end. In addition, there is no need for additional tightening work like with hose bands. ● [Energy saving] Compared to general bamboo shoot fittings, the effective cross-sectional area is wider and pressure loss can be reduced, so you can expect a reduction in power consumption. ● [Easy installation] Compared to conventional fittings, the hose mouth is the same diameter as the hose, making it easier to insert the hose and reducing piping time. ● [Risk reduction] Prevents piping problems such as leaks and pull-outs due to vibration and earthquakes. ● When reusing, simply replace the parts inside the fitting. Uses: ● For hose piping for water supply and drainage, oil, chemicals, air, etc. Specifications: ● Fluids used: air, water (industrial water), oil ● Compatible hose inner diameter (mm): 9 ● Compatible hose outer diameter (mm): 15 ● Thread dimensions: R3/8 ● Dimension L (mm): 42.5 ● Dimension Φd1 (mm): 7 ● Dimension HEX1 (mm): 29 ● Dimension HEX2 (mm): 24 ● Pressure-resistant hose fitting ● Operating pressure and temperature range: Conforms to compatible hose standards Materials/Finish: ● Nipple, cap nut: brass (cadmium-free compatible) ● Rubber packing: nitrile rubber (NBR) ● Sleeve: polyacetal Caution: ● This product is a hose fitting exclusively for Toyox hoses. If it is connected to a hose of another company or a hose other than the compatible hose, there is a possibility that the performance may not be fully demonstrated or maintained, so no guarantee is made. ● Do not use the hose in an extremely bent state near the fitting. Use with a bending radius larger than the minimum bending radius of the hose. ●Do not use in locations subject to vibration or impact. This may damage the fitting or cause the hose to come loose. ●When reusing this product, be sure to replace the sleeve with gasket. Also, be sure to use a new hose. ●The flow path (inner surface) of this product is made of brass. Depending on the type of fluid, corrosion or fluid leakage may occur.
