Toyox Hose Fitting (Brass) Toyo Connector TC3-B Type Compatible with 9mm Hose Fitting Standard R3/8 TC3-B9-R3/8 TC3-B9-R3/8 1 pc

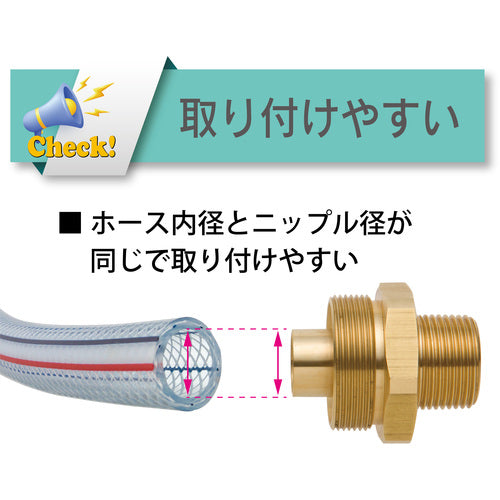

Catalog number: TC3-B9-R3/8 Features: ●The effective cross-sectional area is larger than that of bamboo joints, and pressure loss can be reduced, so it is expected to be effective in reducing power consumption. ● [Leak and slip-out prevention hose joint] This is a hose joint that prevents production problems such as fluid leakage and hose slip-out, and enables stable production. ● [Standardization of installation work] This is a hose joint that allows uniform installation work by simply tightening the bag nut to the end. In addition, there is no need for additional tightening work like with hose bands. ● [Energy saving] The effective cross-sectional area is larger than that of general bamboo joints, and pressure loss can be reduced, so it is expected to reduce power consumption. ● [Easy installation] Compared to conventional joints, the hose mouth is the same diameter as the hose, making it easier to insert the hose and reducing piping time. ● [Risk reduction] Prevents piping problems such as leaks and slip-outs due to vibration and earthquakes. ● [Reusable hose joint] When reusing, it can be reused by simply replacing the parts inside the joint. Uses: ● For hose piping for water supply and drainage, oil, chemicals, air, etc. Specifications: ● Fluids used: air, water (industrial water), oil ● Compatible hose inner diameter (mm): 9 ● Compatible hose outer diameter (mm): 15 ● Thread dimensions: R3/8 ● Dimension L (mm): 43.5 ● Dimension Φd1 (mm): 7 ● Dimension HEX1 (mm): 29 ● Dimension HEX2 (mm): 24 ● Operating pressure, operating temperature range: Conforms to compatible hose standards Material/Finish: ● Nipple, cap nut: brass (cadmium-free compatible) ● Rubber packing: nitrile rubber (NBR) ● Sleeve: polyacetal Caution: ● This product is a hose fitting exclusively for Toyox hoses. If it is connected to a hose of another company or a hose other than the compatible hose, it may not be possible to fully demonstrate or maintain its performance, so we do not guarantee anything. ● Do not use the hose in an extremely bent state near the fitting. Use with a bending radius larger than the minimum bending radius of the hose. ● Do not use in places where vibration or impact occurs. Doing so may damage the fitting or cause the hose to come loose. ●When reusing this product, be sure to replace the packing sleeve. Also, be sure to use a new hose. ●The flow path (inner surface) of this product is made of brass. Depending on the type of fluid, corrosion or fluid leakage may occur.
