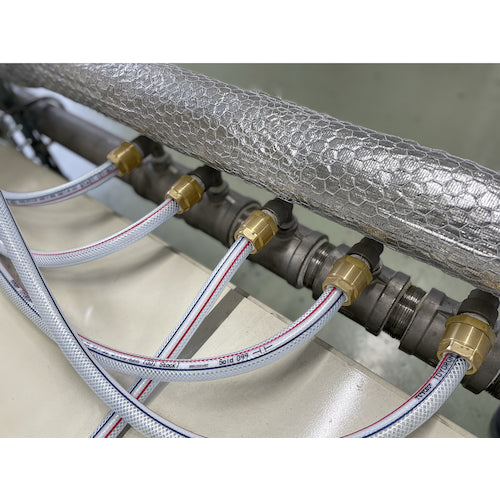

Toyox Hose Fitting (Brass) Toyo Connector TC3-PB Type Compatible Hose 15mm Fitting Standard R1/2 TC3-PB15-R1/2 TC3-PB15-R1/2 1 pc

Catalog number: TC3-PB15-R1/2 Features: ● A joint (male thread) exclusively for Toyox hoses (excluding silicone hoses). ● [Leak- and slip-out-proof hose joint] A hose joint that prevents production problems such as fluid leakage and hose slip-out, enabling stable production. ● [Standardization of installation work] A hose joint that allows uniform installation work by simply tightening the cap nut all the way. In addition, there is no need for additional tightening work like with hose bands. ● [Energy-saving hose joint] Compared to general bamboo shoot joints, the effective cross-sectional area is wider and pressure loss can be reduced, so you can expect a reduction in power consumption. ● [Easy installation] Compared to conventional joints, the hose mouth is the same diameter as the hose, making it easier to insert the hose and reducing piping time. ● [Risk reduction] Prevents piping problems such as leaks and slip-outs due to vibration and earthquakes. ● [Reusable hose joint] When reusing, simply replace the parts inside the joint. Uses: ● For hose piping for water supply and drainage, oil, chemicals, air, etc. Specifications: ● Suitable hose inner diameter x outer diameter (mm): 15 x 22 ● Suitable hose inner diameter (mm): 15 ● Suitable hose outer diameter (mm): 22 ● Thread dimension: R1/2 ● Dimension L (mm): 58 ● Dimension Φd1 (mm): 13 ● Dimension HEX1 (mm): 36 ● Pressure-resistant hose coupling ● Operating pressure and operating temperature range: Conforms to compatible hose standards ● For indoor use only Materials/Finish: ● Main materials: Brass, polyacetal resin Caution: ● This product is a hose coupling exclusively for Toyox hoses. If it is connected to a hose other than that of another company or a compatible hose, it may not be possible to fully demonstrate or maintain its performance, so we do not guarantee anything. ● Do not use the hose in an extremely bent state near the coupling. Use with a bending radius larger than the minimum bending radius of the hose. ● Tighten the cap nut until there is no gap. If it is used with a gap, problems such as fluid leakage and hose coming off may occur. ●This product is for indoor use only. Do not use outdoors. When reusing this product, be sure to replace it with a new sleeve. Also, be sure to use a new hose. ●Please check the material of the flow path (inner surface) of this product. Depending on the type of fluid, corrosion or fluid leakage may occur.
