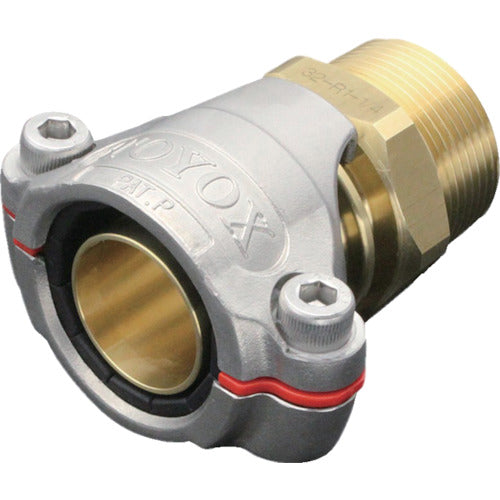

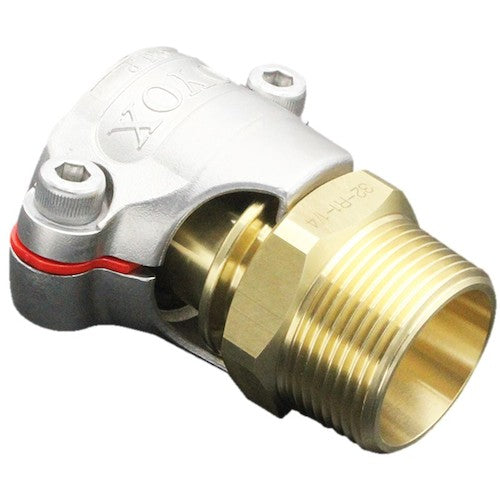

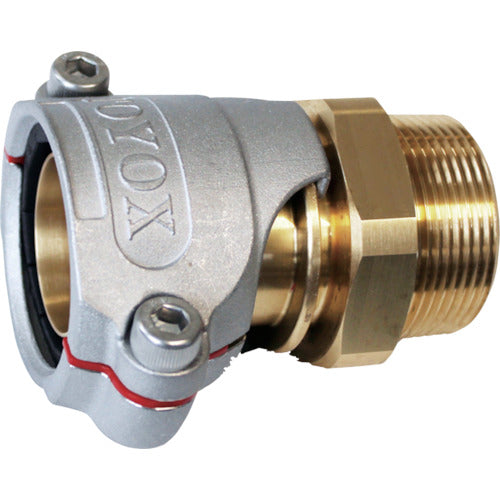

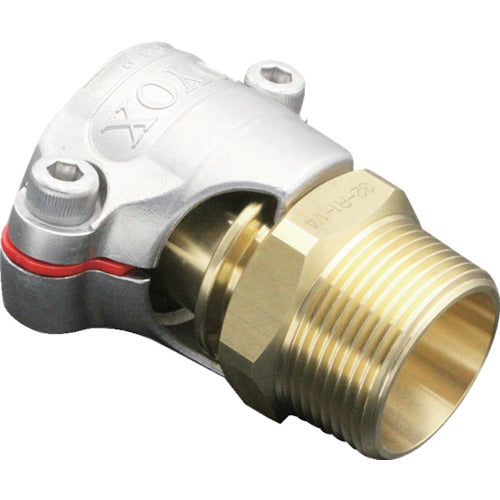

Toyox Hose Fitting (Brass) Toyo Connector TC6-B Type Compatible with hose 38 mm Fitting standard R1-1/2 TC6-B38-R1-1/2 TC6-B38-R1-1/2 1 pc

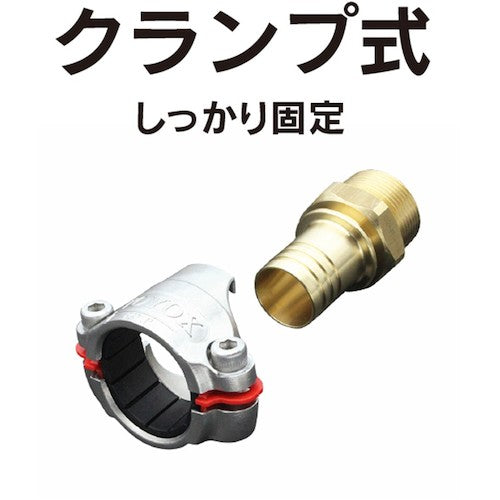

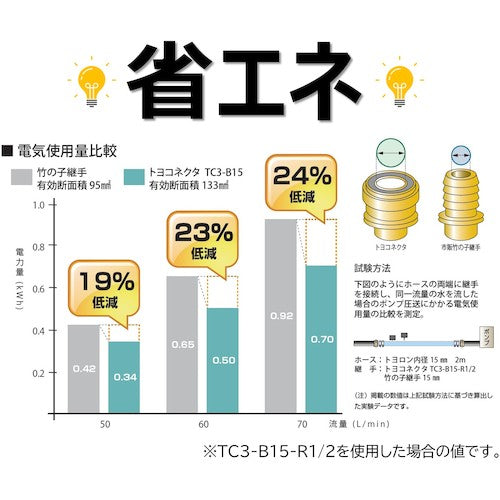

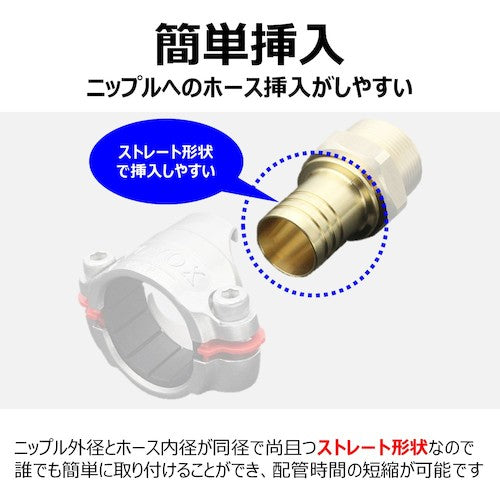

Catalog number: TC6-B38-R1-1/2 Features: ●The effective cross-sectional area is larger than that of bamboo shoot fittings, and pressure loss can be reduced, so it is expected to be effective in reducing power consumption. ●[Leak and pull-out prevention hose fitting] This is a hose fitting that prevents production problems such as fluid leakage and hose pull-out, and enables stable production. ●[Standardization of installation work] This is a hose fitting that allows uniform installation work by simply tightening the bag nut to the end. In addition, there is no need for additional tightening work like with hose bands. ●Compared to conventional fittings, the hose mouth is the same diameter as the hose, making it easier to insert the hose and reducing piping time. ●[Easy installation] Compared to conventional fittings, the hose mouth is the same diameter as the hose, making it easier to insert the hose and reducing piping time. ●[Risk reduction] Prevents piping problems such as leaks and pull-outs due to vibration and earthquakes. ●[Reusable hose fitting] When reusing, it can be reused by simply replacing the parts inside the fitting. Uses: ● For hose piping for water supply and drainage, oil, chemicals, air, etc. Specifications: ● Fluids used: air, water (industrial water), oil ● Compatible hose inner diameter (mm): 38 ● Compatible hose outer diameter (mm): 48 ● Thread dimensions: R1-1/2 ● Dimension L (mm): 93 ● Dimension Φd1 (mm): 34 ● Dimension F (mm): 88 ● Dimension HEX1 (mm): 55 ● Dimension HEX2 (mm): 6 ● Operating pressure, operating temperature range: Conforms to compatible hose standards Materials/Finish: ● Nipple: Brass (cadmium-free compatible) ● Clamp: Stainless steel SCS14 (equivalent to SUS316) ● Rubber cap: Nitrile rubber (NBR) ● Spacer: Polyacetal ● Bolt: Stainless steel SUSXM7 (equivalent to SUS304) Note: ● This product is a hose fitting exclusively for Toyox hoses. If it is connected to a hose of another company or a hose other than the compatible hose, it may not be possible to fully demonstrate or maintain its performance, so no guarantee is made. ●Do not use in locations subject to vibration or impact. This may damage the fitting or cause the hose to come loose. ●Alternately tighten the two bolts evenly until there is no gap. If there is a gap and you cannot tighten it, wait a while and then retighten until the clamp gap is gone. ●Although this varies depending on the conditions of use, as a guideline, replace with a new clamp set after removing the clamp about five times. ●The flow path (inner surface) of this product is made of brass. Depending on the type of fluid, corrosion or fluid leakage may occur.
