Toyox Pressure-resistant hose for water, oil, chemicals, and air Toyospring hose Inner diameter 25 mm x outer diameter 33 mm Length 2 m TS-25-2 TS-25-2 1 roll

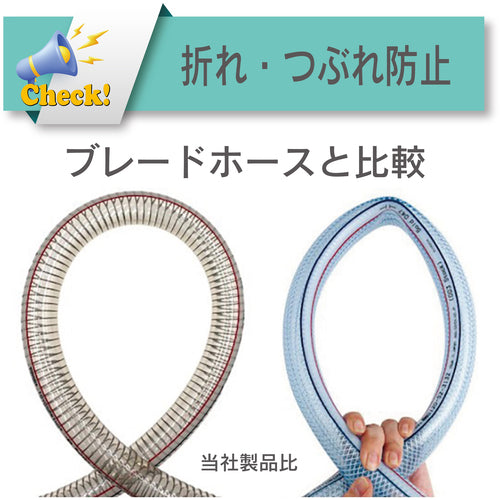

Catalog number: TS-25-2 Features: ● [Multipurpose pressure-resistant resin hose] Can be used for pressure transfer and suction (vacuum) of various fluids such as water, oil, chemicals, and air. ● [Prevents bending and crushing] Reinforced with hard steel wire coils, it is resistant to bending and crushing and can supply fluids stably. ● [Durable] The inner and outer surfaces of the hose are oil-resistant and do not easily harden. ● [Transparency] Good transparency allows you to check the fluid for peace of mind. ● [Legal compliance] Compliant with RoHS2 revised regulations for safety and peace of mind. Uses: ● For factory equipment piping and various machine piping (pressure feeding and suction of water, oil, chemicals, air, etc.) Specifications: ● Length (m): 2 ● Inner diameter (mm): 25 ● Outer diameter (mm): 33 ● Operating pressure (MPa): -0.1 to 0.4 ● Allowable bending radius (mm or more): 100 ● Fluids used: Water (industrial water), chemicals, mineral oil, animal and vegetable oil, powder, air ● Operating temperature range: -5 to 60°C ● Color: Natural transparent/with image lines Material/Finish: ● Main material: Soft polyvinyl chloride (PVC) ● Reinforcement: Hard steel wire Caution: ● Do not use for drinking, food, or medical purposes. ● Use hose nipples that are suitable for the hose size. Do not use nipples with scratches or rust on the surface. ● The life of a hose is greatly affected by the physical properties of the fluid, temperature, flow rate, and frequency of pressurization and decompression. ● If any abnormality or signs of abnormality are found during start-up inspection or regular inspection, immediately discontinue use and repair or replace with a new hose. ●We recommend using our special hose fittings and hose clamps. Tighten the hose clamps as necessary.
