Toyox Pressure-resistant hose for water, oil, chemicals, and air Toyospring hose Inner diameter 9 mm x outer diameter 15 mm Length 50 m TS-9-50 TS-9-50 1 roll

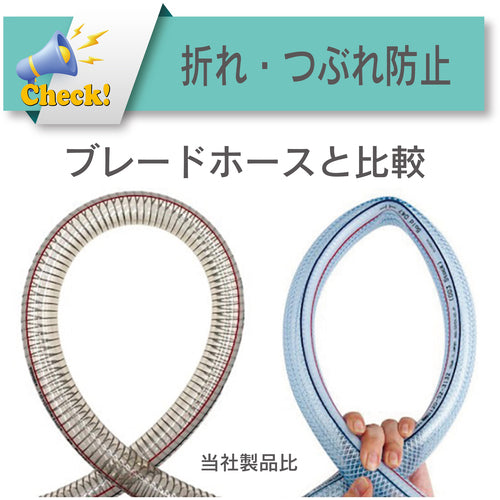

Catalog number: TS-9-50 Features: ● Resistant to bending and crushing, so the fluid is unlikely to stop, making it safe. ● Excellent oil resistance, so the hose is less likely to harden and has a long life. ● Excellent transparency, so you can check the fluid, making it safe and secure. ● [Transparency] Good transparency, so you can check the fluid, making it safe and secure. ● [Legal compliance] Compliant with RoHS 2 revised regulations, making it safe and secure. Applications: ● For general piping, for various fluids such as water, oil, chemicals, and air. Specifications: ● Length (m): 50 ● Inner diameter (mm): 9 ● Outer diameter (mm): 15 ● Operating pressure (MPa): -0.1 to 0.8 ● Allowable bending radius (mm or more): 40 ● Operating temperature range: -5 to 60 °C ● Color: Natural transparent ● Color: Natural transparent / with image lines Material / Finish: ● Main material: Soft polyvinyl chloride (PVC) ● Reinforcement: Hard steel wire Caution: ● Do not use for drinking, food, or medical purposes. ● Use a hose nipple that is suitable for the hose size. Do not use nipples with scratches or rust on the surface. ●The lifespan of a hose is greatly affected by the physical properties of the fluid, temperature, flow rate, and frequency of pressurization and depressurization. ●If any abnormalities or signs of abnormality are found during start-up or regular inspections, immediately discontinue use and repair or replace with a new hose. ●We recommend using our dedicated hose fittings and hose clamps. Tighten hose clamps as appropriate.
