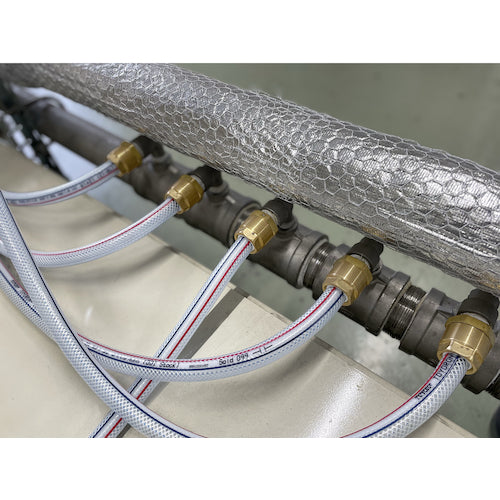

Toyox Pressure-resistant hose for water, oil, chemicals, and air Toyoron hose Inner diameter 9 mm x outer diameter 15 mm Length 100 m TR-9-100 TR-9-100 1 roll

Catalog number: TR-9-100 Features: ●Good transparency, so you can check the fluid and feel safe. ●The inner surface has excellent oil resistance. ●Good flexibility, making piping easy. ●The hose is easy to cut, and the fittings can be easily inserted. ●[Wide range of sizes] Pressure-resistant blade hose with a wide range of sizes (inner diameter 4 to 75 mm). ●[Legal compliance] Compliant with RoHS2 revised regulations, so it is safe and secure. Applications: ●For general piping use with various fluids such as water, oil, chemicals, and air. Specifications: ● Length (m): 100 ● Inner diameter (mm): 9 ● Outer diameter (mm): 15 ● Operating pressure (MPa): 0 to 1.5 (23°C), 0 to 1.0 (60°C) ● Allowable bending radius (mm or more): 45 ● Operating temperature range: -5 to 60°C ● Color: Blue transparent ● Color: Blue transparent / Image line + blue warp thread included Material / Finish: ● Main material: Soft polyvinyl chloride (PVC) ● Reinforcement: Polyester thread Caution: ● Do not use for drinking, food, or medical purposes. ● Use hose nipples that are suitable for the hose size. Do not use nipples with scratches or rust on the surface. ● The life of the hose is greatly affected by the physical properties of the fluid, temperature, flow rate, and frequency of pressurization and decompression. ● If abnormalities or signs of abnormalities are found during start-up inspections or regular inspections, immediately stop using the hose and repair or replace it with a new hose. ● We recommend using our dedicated products for hose fittings and hose clamps. Tighten the hose clamps as necessary.
