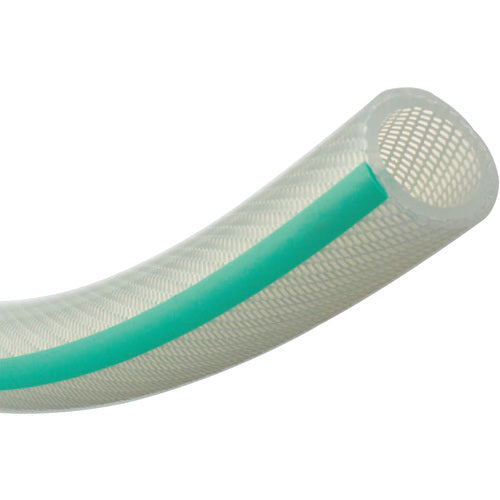

Toyox Heat-resistant and pressure-resistant hose for food Toyo Silicone Hose Inner diameter 12.7 mm x outer diameter 19.5 mm Length 20 m TSI-1220 TSI-1220 1 roll

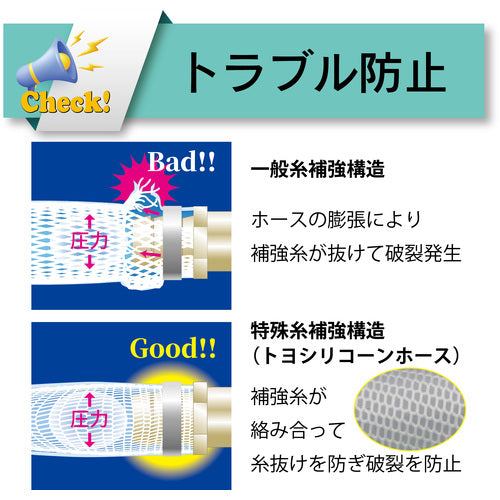

Catalog number: TSI-1220 Features: ● [Heat and cold resistance] This heat-resistant hose can be used at temperatures between -30 and 150°C. ● [Prevention of problems] This heat-resistant silicone hose has a thread-pullout prevention structure and high pressure resistance, making it safe and secure. ● [Safety and security] Taking advantage of its low leaching, insulation, and low odor properties, it can be used as a safe and secure heat-resistant and food-grade hose for pressure transfer at high temperatures. The hose can also be washed at high temperatures, making it hygienic. ● [Flexibility] It is more flexible than rubber and PVC hoses, making it easier to pipe. ● [Legal compliance] It complies with the Food Sanitation Act, is FDA (U.S. Food and Drug Administration) compliant and registered, complies with USP (United States Pharmacopeia) Class VI, and complies with RoHS2 revised regulations, making it safe and secure as a hose for food and beverages. Uses: ● For hose piping for transporting and suctioning food, beverages, and pharmaceuticals (filling machines, food machinery, cooling equipment, etc.) and where heat resistance is required Specifications: ● Length (m): 20 ● Inner diameter (mm): 12.7 ● Outer diameter (mm): 19.5 ● Operating pressure (MPa): 0-0.5 ● Allowable bending radius (mm or more): 130 ● Fluids used: food, beverages, pharmaceuticals, animal and vegetable oils (below 70°C), powder, air ● Fluids used: food, beverages, pharmaceuticals, animal and vegetable oils (below 70°C), powder, air ● Operating temperature range: -30 to 150°C ● Compliant with the Food Sanitation Act (Ministry of Health, Labour and Welfare Notification No. 380 of 2020) ● Compliant with FDA (CFR21.170-199) ● Registered with FDA DMF Type2 No. 25486 ● Color: Milky white/with green line Material/Finish: ● Main material: Silicone rubber ● Reinforcement: Polyester thread Caution: ● Do not use for medical purposes. Also, never use with hot water over 100°C or animal or vegetable oil over 70°C. ●When using steam cleaning, do so for a short time at a saturated steam pressure of 0.2MPa (130°C) or less. Silicone rubber also has high gas permeability. Please be careful when using gas. ●Use the hose within the operating temperature and pressure range. The hose expands and contracts due to internal pressure, so please allow some slack when piping. ●When applying pressure, open and close the valve slowly to avoid applying shock pressure. ●Do not directly immerse the end of the hose or the joint in the fluid (food, medicine, etc.) in the tank. The fluid may penetrate the hose reinforcement layer or remain in the joint, causing bacteria to grow (adhere) and the hose to deteriorate.
