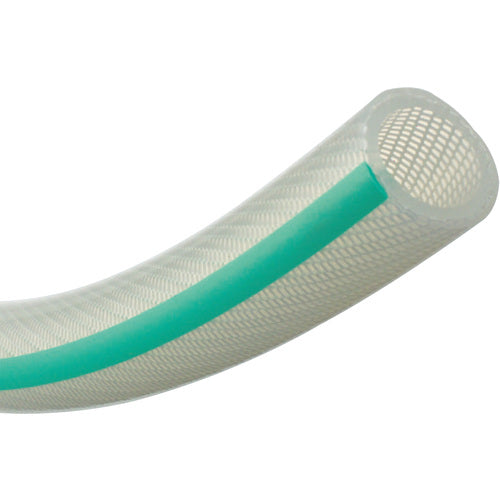

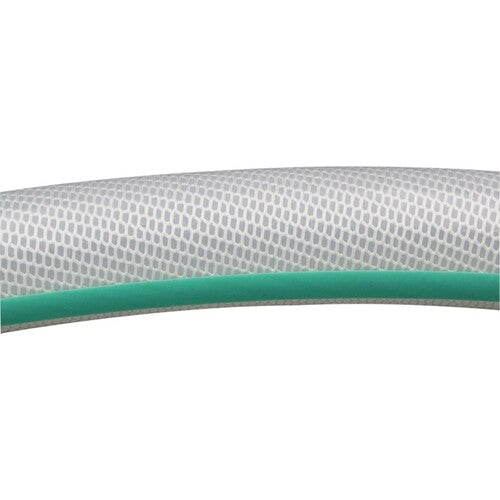

Toyox Heat-resistant and pressure-resistant hose for food Toyo Silicone Hose Inner diameter 12.7 mm x outer diameter 19.5 mm Length 3 m TSI-12-3 TSI-12-3 1 roll

Catalog number: TSI-12-3 Features: ●Excellent heat and cold resistance, allowing for pressure transfer and suction under a wide range of temperature conditions. ●Reinforced structure resistant to bending and crushing allows for stable fluid supply. ●Hygienic with reinforcement material made of rust-resistant SUS316. ●Excellent heat resistance, safe and secure. ●High transparency allows you to check the fluid for peace of mind. Applications: ●For piping of food, beverages, chemicals, etc. Specifications: ● Length (m): 3 ● Inner diameter (mm): 12.7 ● Outer diameter (mm): 19.5 ● Operating pressure (MPa): 0 to 0.5 ● Allowable bending radius (mm or more): 130 ● Operating temperature range: -30 to 150°C ● Compliant with the Food Sanitation Act (Ministry of Health, Labor and Welfare Notification No. 595 of 2012) ● FDA DMF Type [R2] No. 25486 registered ● Color: Milky white ● FDA DMF Type2 No. 25486 registered ● Color: Milky white / with green line Material / Finish: ● Main material: Silicone rubber ● Reinforcement material: Polyester thread, stainless steel (SUS316) Caution: ● Do not use for medical purposes. Also, never use with high temperature water exceeding 100°C or animal or vegetable oils exceeding 70°C. ● When steam cleaning, do so for a short time at a saturated steam pressure of 0.2MPa (130°C) or less. Silicone rubber also has high gas permeability. Please be careful when using gas. ●Use the hose within its operating temperature and pressure ranges. The hose expands and contracts due to internal pressure, so leave some slack when piping. ●When pressurizing, open and close the valve slowly to avoid applying impact pressure. ●Do not immerse the end of the hose or the fittings directly into the fluid (food, chemicals, etc.) in the tank. The fluid may penetrate the hose reinforcing layer or remain in the fittings, causing the proliferation (adhesion) of bacteria and deterioration of the hose.
